A compact 38mm diameter incremental encoder with a 2m cable and stainless steel spindle, metal alloy shell

myVolts

myVolts E6B2-CWZ6C 38mm 2m 300P/R semiconductor

SKU CH-ACAH-FDNM1 MPN E6B2-CWZ6C

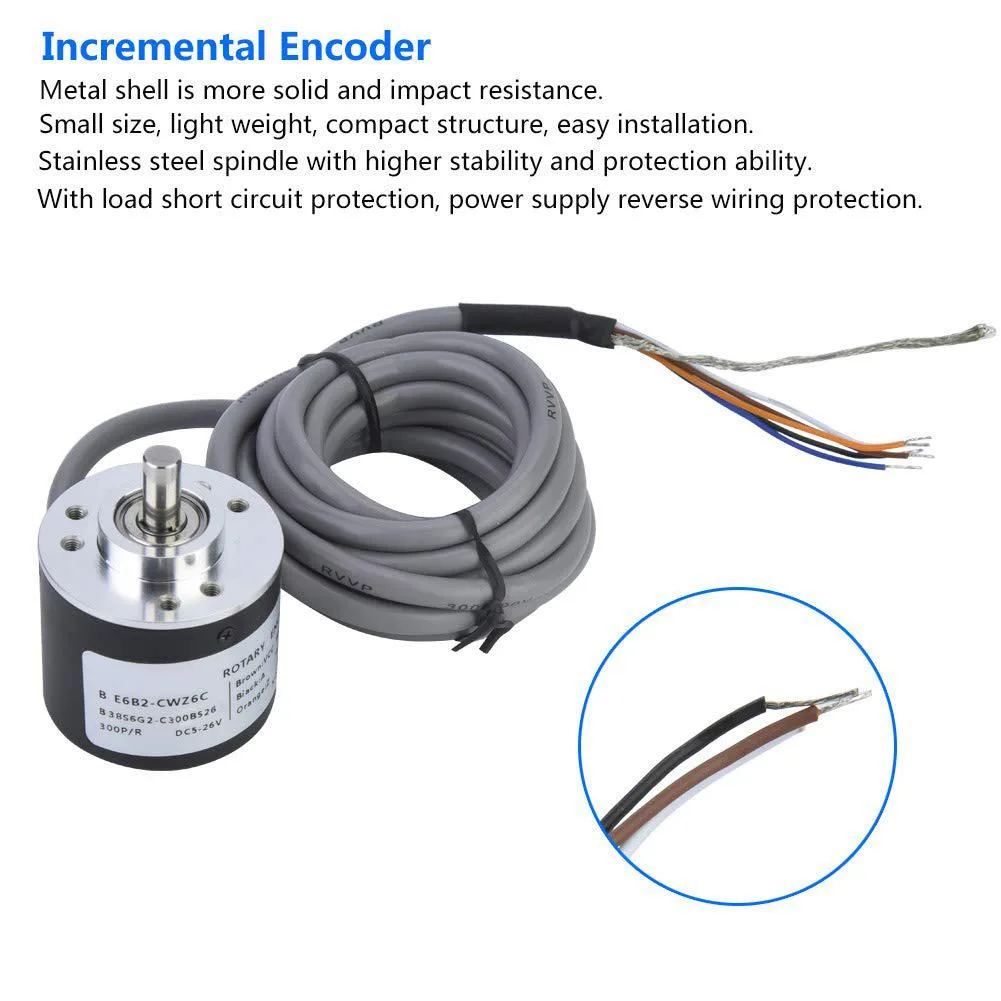

38 mm incremental encoder with 300 pulses per revolution, 2 m cable, DC 5–26 V supply, reverse-wiring and short-circuit protection, stainless-steel spindle and metal shell

  • TypeAT
  • Reliable operation from internal ASIC devices with strong anti-interference performance
  • Durable construction via stainless steel spindle and solid metal shell
  • Safe integration with load short-circuit and reverse-wiring protection
  • Compact 38 mm diameter encoder installs easily in tight spaces
  • Flexible 2 m cable length suits varied wiring layouts

Incremental encoder for motion control

This 38 mm diameter incremental encoder suits automation tasks that need precise position feedback. It operates on a DC 5–26 V supply with open-collector output and delivers A, B and Z phase signals. The 2 m cable uses colour-coded wiring for quick integration. Engineers specifying rotary feedback for compact machines will find the mechanical envelope convenient.

Sustained operation with built-in protection

Internal ASIC devices provide high reliability and strong anti-interference performance during continuous duty cycles. Load short-circuit protection and power-supply reverse-wiring protection guard the electronics against common installation faults. The encoder tolerates radial shaft loads of 30 N and thrust loads of 20 N without loss of signal integrity. Resolution options from 100 to 5000 pulses per revolution let the designer match bandwidth to the control loop.

Rugged construction and simple mounting

A stainless-steel spindle and alloy shell with aluminium body resist impact and vibration in industrial environments. The compact structure keeps the footprint small while the 6 mm shaft diameter fits standard couplings. Six output modes — voltage, collector, complementary, push-pull, long-line drive and differential — give flexibility for different controller inputs. The 2 m standard cable length reaches most panel locations without extension.

Highlights

  • Reliable operation from internal ASIC devices with strong anti-interference performance
  • Durable construction via stainless steel spindle and solid metal shell
  • Safe integration with load short-circuit and reverse-wiring protection
  • Compact 38 mm diameter encoder installs easily in tight spaces
  • Flexible 2 m cable length suits varied wiring layouts

Specifications

TypeAT

Questions about this item

Does the E6B2-CWZ6C encoder generate noticeable heat or noise when running continuously on a 24 V supply?

The incremental encoder draws low current from a DC 5–26 V supply and has no moving fan, so heat and acoustic output remain minimal during all-day operation.

What mating connector or cable preparation is needed to wire the 2 m flying-lead loom on this encoder?

The 2 m cable ends in stripped leads: brown for DC 5–26 V, blue for 0 V, black for A phase, white for B phase, orange for Z phase, and shield for ground.

Will the 6 mm stainless-steel shaft and 38 mm alloy housing fit the mounting pattern on my existing Omron E6B2 series brackets?

Yes, the 38 mm diameter body and 6 mm thrust shaft match the standard E6B2 footprint, so existing brackets and couplings align without modification.
