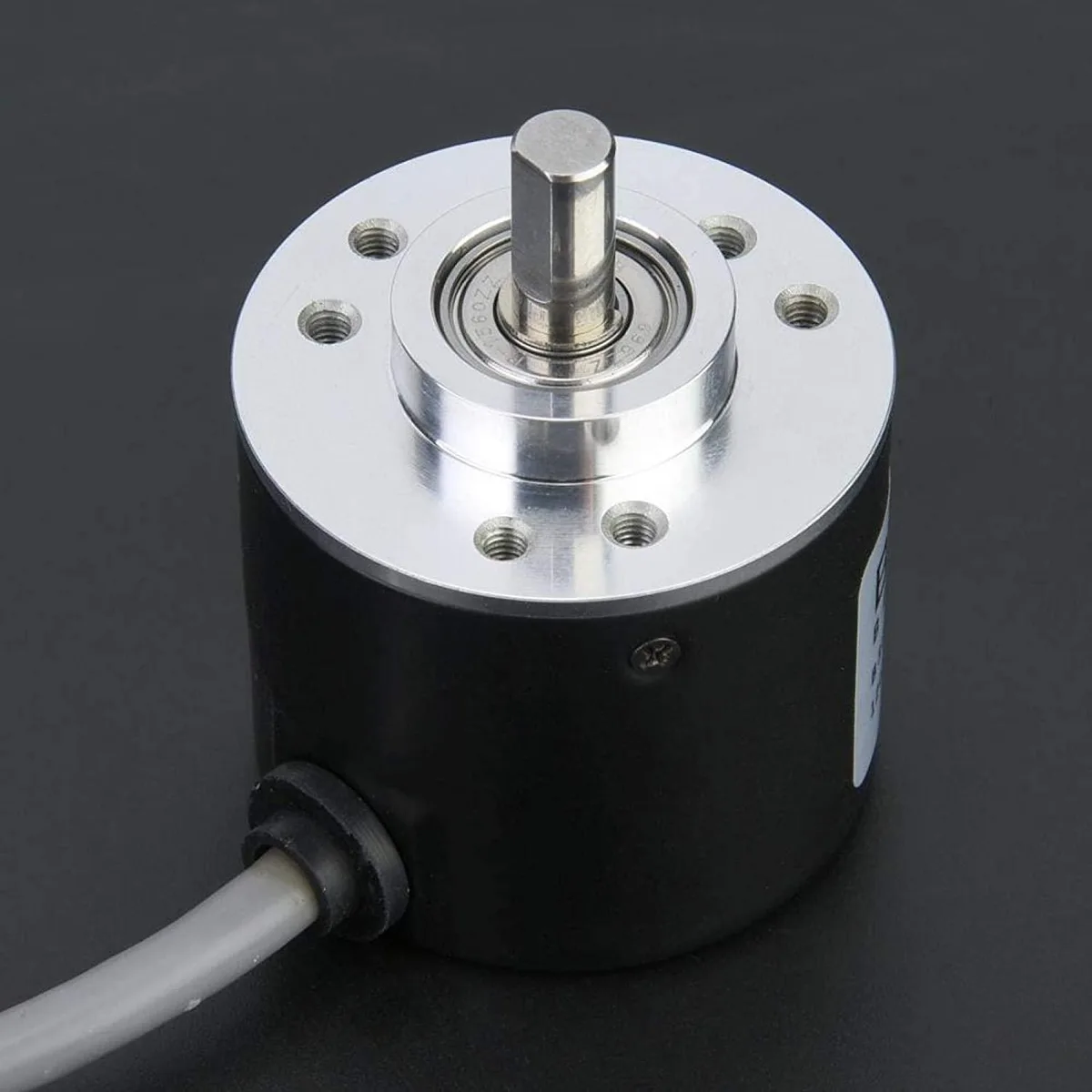

Small cylindrical encoder, metal body, stainless shaft, two‑metre cable

myVolts

myVolts E6B2-CWZ6C 38mm 200P/R transducer

SKU CH-R1N8-2DXV0 MPN E6B2-CWZ6C

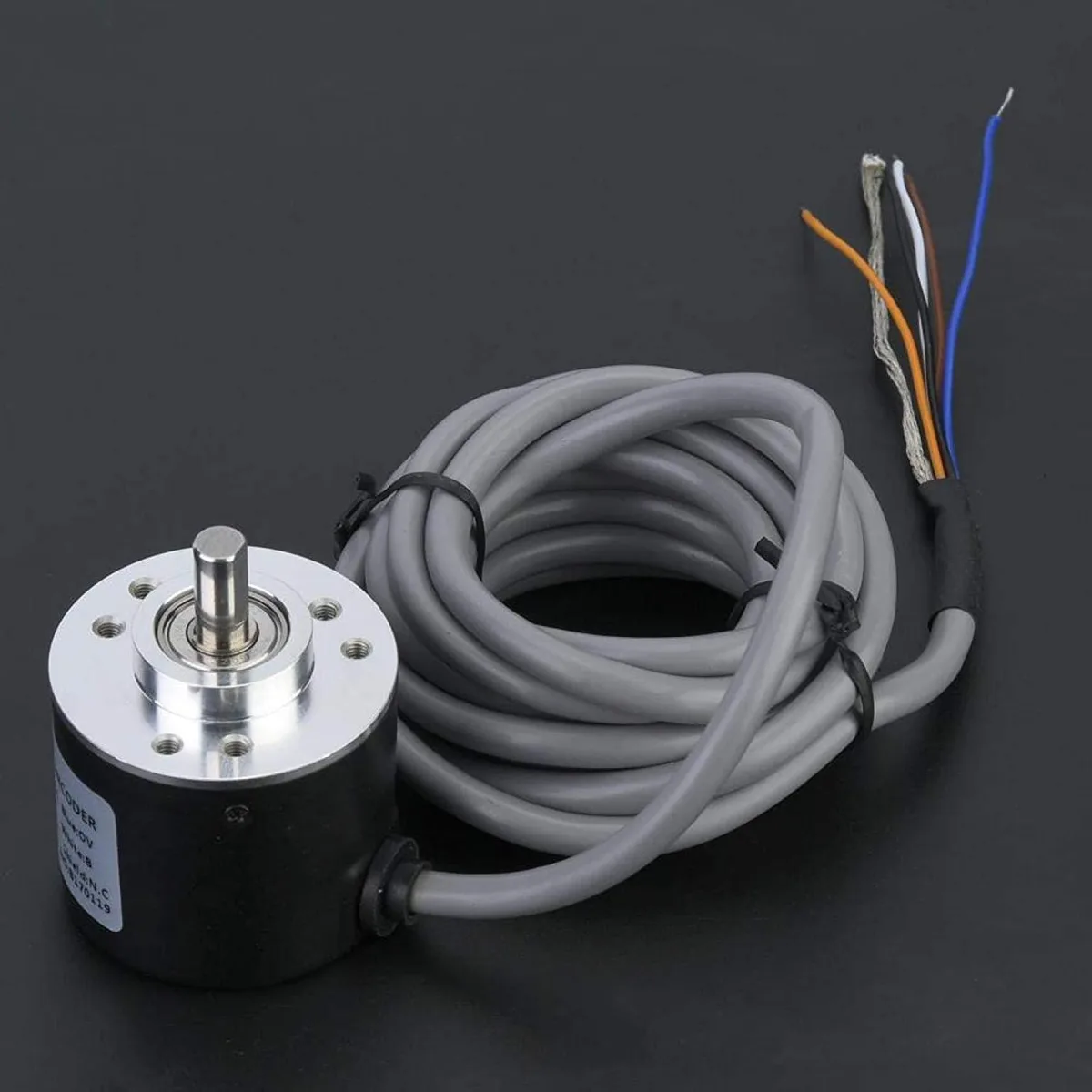

38 mm incremental encoder delivers 200 pulses per revolution with DC 5–26 V supply, stainless steel shaft, metal housing and 2 m cable

  • TypeAT
  • 38 mm compact diameter fits tight machine spaces
  • 200 pulses per revolution gives precise position feedback
  • DC 5–26 V supply range suits common control voltages
  • ASIC internals resist electrical noise for reliable signals
  • Stainless spindle plus metal shell withstand 30 N radial and 20 N axial loads

38 mm incremental encoder for motion control

The myVolts E6B2-CWZ6C is a 38 mm diameter incremental encoder that delivers 200 pulses per revolution. It operates on a DC 5 to 26 V supply with open-collector output and provides A, B and Z phase signals. The stainless-steel spindle and alloy shell give mechanical stability in industrial environments.

Upgrade from lower-resolution or non-ASIC encoders

Replacing a basic encoder with this unit adds internal ASIC circuitry for stronger anti-interference performance and longer service life. The jump is worthwhile when the application needs reliable 200 P/R feedback, built-in load short-circuit protection and power-supply reverse-wiring protection. It also suits designs that require axial loads up to 30 N and thrust loads up to 20 N.

Limits of open-collector output at 26 V

The open-collector interface works with the stated DC 5 to 26 V range and the supplied 2 m cable, but signal integrity over longer runs depends on external pull-up resistors and cable capacitance. Differential or push-pull output modes are listed as available options, yet the standard wiring harness only guarantees the open-collector configuration. Buyers needing noise-immune transmission over extended distances must verify the chosen output mode matches their controller requirements.

Highlights

  • 38 mm compact diameter fits tight machine spaces
  • 200 pulses per revolution gives precise position feedback
  • DC 5–26 V supply range suits common control voltages
  • ASIC internals resist electrical noise for reliable signals
  • Stainless spindle plus metal shell withstand 30 N radial and 20 N axial loads

Specifications

TypeAT

Questions about this item

What shaft diameter fits the 38 mm encoder body?

The thrust shaft diameter is 6 mm, so a 6 mm shaft is required for mounting.

Which wiring step causes the most issues during installation?

Connecting the brown wire to DC 5–26 V and the blue wire to 0 V is critical; reversing them triggers the reverse-wiring protection.

What determines when the encoder itself must be replaced?

Internal ASIC components and the stainless-steel spindle are built for long life; replacement is only needed if the unit suffers mechanical damage or electrical overload beyond the built-in short-circuit protection.
