Compact 38 mm diameter incremental encoder with metal shell and stainless steel spindle

myVolts

myVolts E6B2-CWZ6C 38mm 1024P/R incremental transducer

SKU CH-7NZG-Q6YH1 MPN E6B2-CWZ6C

38 mm incremental encoder delivering 1024 pulses per revolution with DC 5–26 V supply and short-circuit plus reverse-wiring protection

  • TypeAT
  • Precise positioning with 1024 pulses per revolution
  • Robust operation from DC 5 V to 26 V supply
  • Durable stainless-steel spindle rated for 30 N radial load
  • Protected against output short circuits and reverse wiring

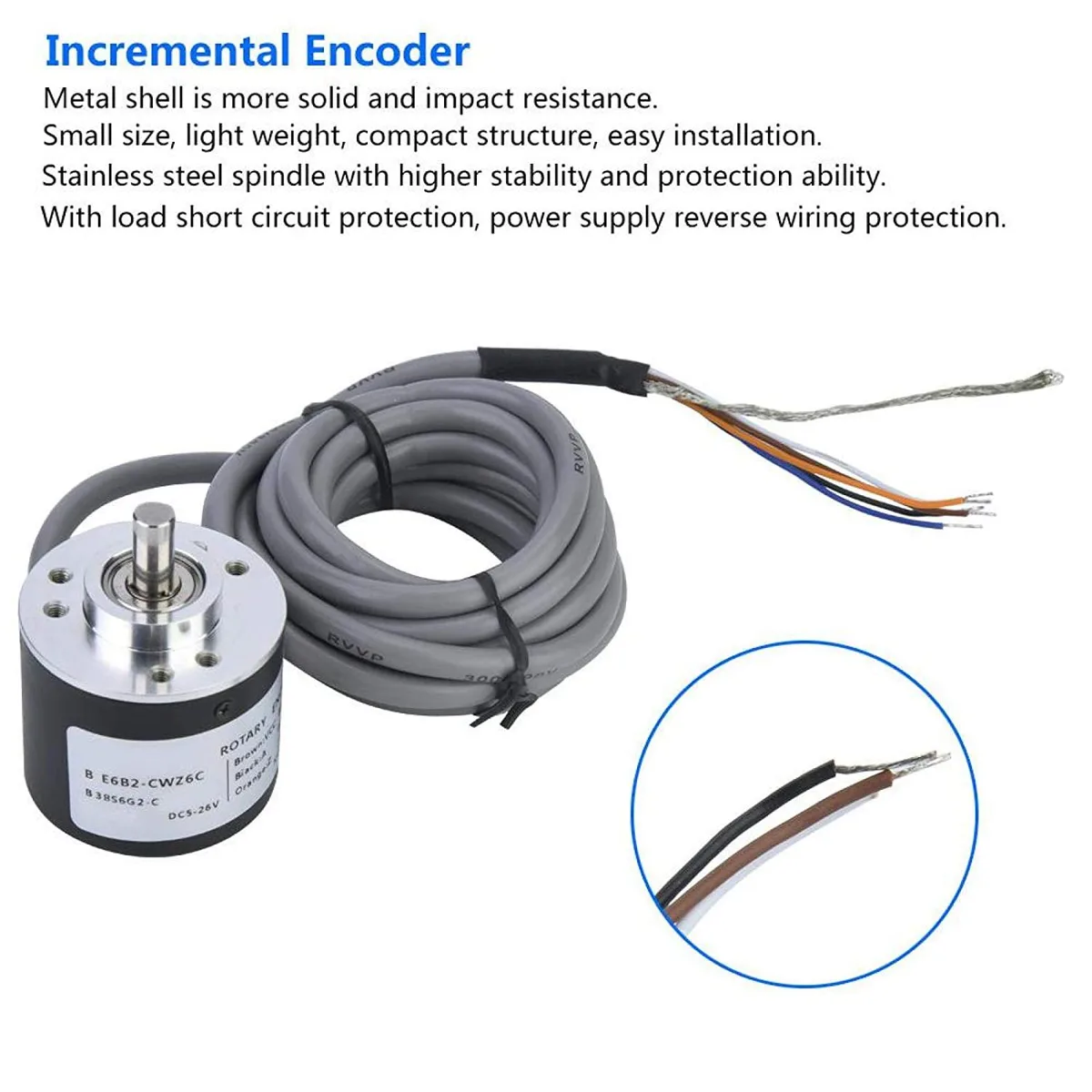

  • Compact 38 mm metal housing for easy installation

38 mm incremental encoder with 1024 P/R

This myVolts E6B2-CWZ6C is a 38 mm diameter incremental transducer built for motion-control systems that need precise position feedback. It suits automation engineers, robotics integrators and test-rig builders who require a compact, metal-housed encoder with a 6 mm stainless-steel shaft.

Simple wiring and robust protection

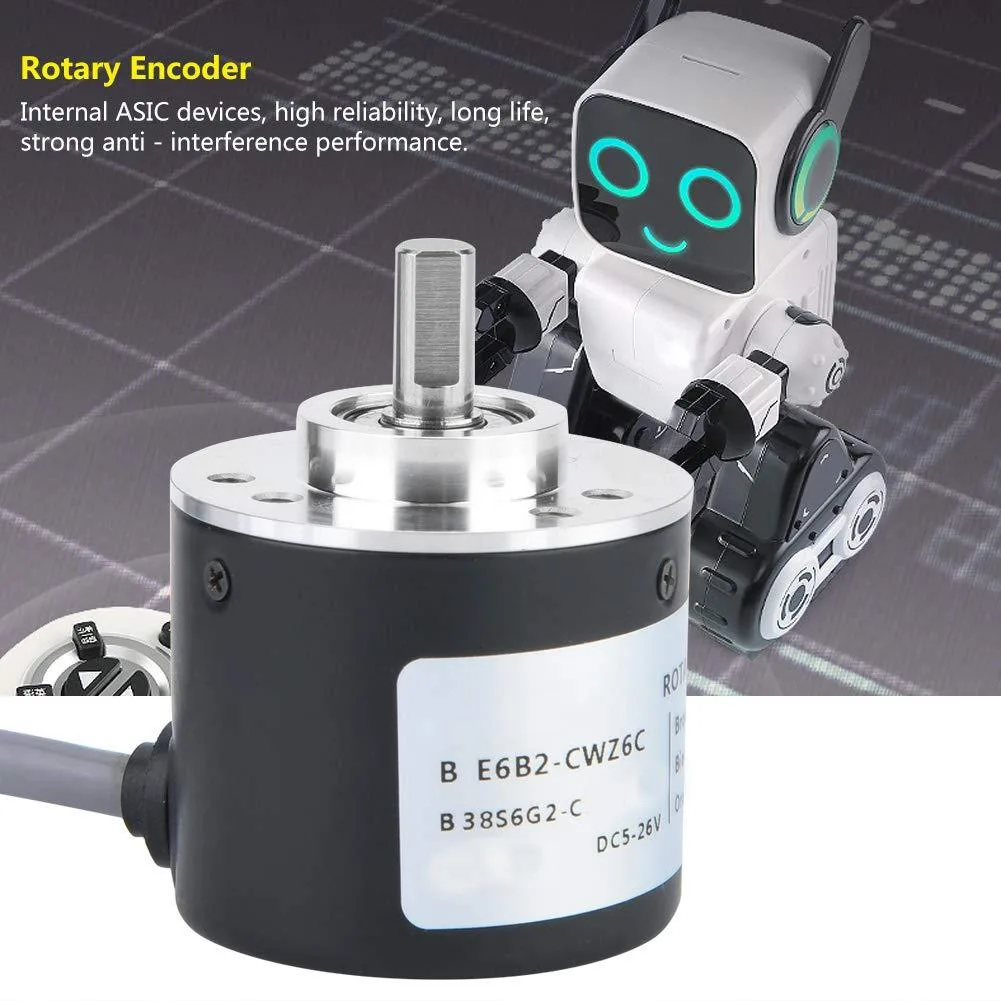

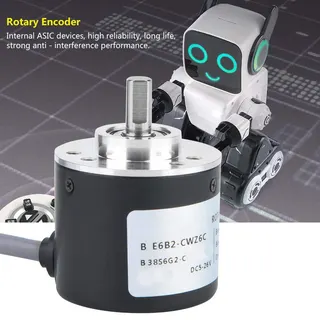

The 2 m cable uses colour-coded leads: brown for DC 5–26 V, blue for 0 V, and black for signal outputs. An internal ASIC provides load short-circuit protection and power-supply reverse-wiring protection, so incorrect hook-up during commissioning will not damage the device. The alloy shell and aluminium body resist shock and vibration in industrial environments.

Resolution of 1024 pulses per revolution

The encoder delivers 1024 P/R with A, B and Z phase outputs in voltage, collector, complementary, push-pull, long-line-drive, differential and fork configurations. Buyers who need a different resolution — such as 100, 500 or 5000 P/R — must select another variant from the optional range.

Highlights

  • Precise positioning with 1024 pulses per revolution
  • Robust operation from DC 5 V to 26 V supply
  • Durable stainless-steel spindle rated for 30 N radial load
  • Protected against output short circuits and reverse wiring
  • Compact 38 mm metal housing for easy installation

Specifications

TypeAT

Questions about this item

How do I verify the E6B2-CWZ6C encoder is operating correctly after installation?

Monitor the A, B and Z phase signals on an oscilloscope or counter while rotating the 6 mm shaft; you should see clean 1024 pulses per revolution at the configured output type within the DC 5–26 V supply range.

What comes in the box with the E6B2-CWZ6C and what must I source separately?

The encoder ships with a 2 m pre-wired cable (brown for DC 5–26 V, blue for 0 V, black for signal); mounting hardware, connectors and a DC power supply are not included.

Which resolution option should I choose for the E6B2-CWZ6C incremental encoder?

Select the 1024 P/R version when you need that exact pulse count; other factory options range from 100 to 5000 P/R in the listed steps.
