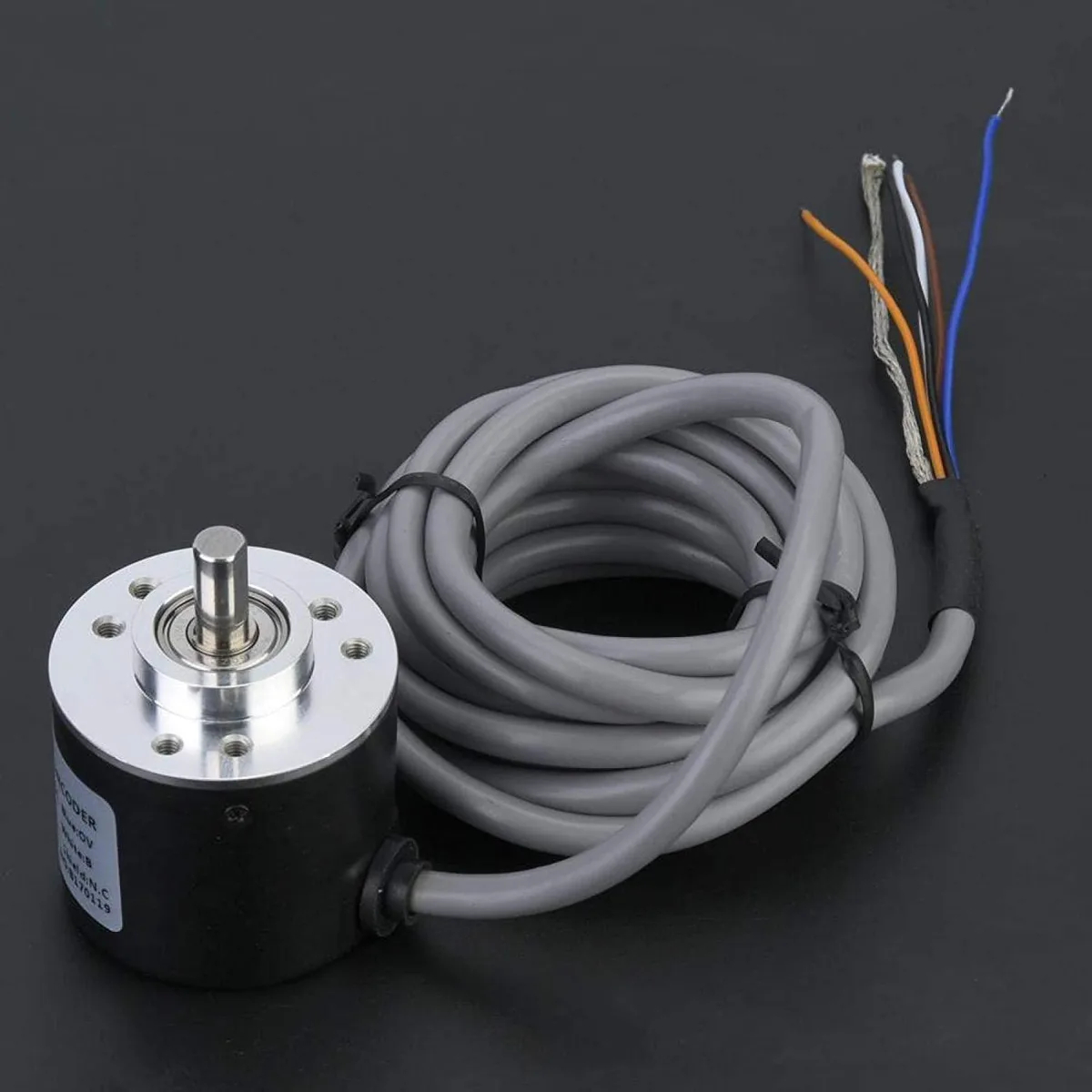

Small cylindrical metal encoder with stainless shaft and two‑metre cable

myVolts

myVolts E6B2-CWZ6C 38mm 100P/R incremental transducer

SKU CH-151M-0F5G7 MPN E6B2-CWZ6C

38 mm incremental encoder delivering 100 pulses per revolution with DC 5–26 V supply, short-circuit and reverse-polarity protection

  • TypeAT
  • 38 mm compact diameter enables installation in tight spaces
  • 100 pulses per revolution deliver precise incremental position feedback
  • Internal ASIC design provides high reliability and strong anti-interference performance
  • Stainless steel spindle with metal shell ensures durability and impact resistance
  • DC 5-26 V supply with reverse-wiring and short-circuit protection safeguards operation

Compact 38 mm Incremental Encoder

The myVolts E6B2-CWZ6C is a 38 mm diameter incremental transducer designed for motion feedback in industrial and automation equipment. It delivers 100 pulses per revolution with A, B and Z phase outputs. The unit operates from a DC 5 V to 26 V supply and offers multiple output modes including voltage, collector, complementary, push pull, long line drive, differential and fork output. A two metre cable simplifies wiring in tight cabinets.

Suited For Position Feedback Tasks

Engineers needing a robust, high reliability encoder with strong anti-interference performance will appreciate the internal ASIC design and stainless steel spindle. The metal shell resists impact while the compact structure eases installation. Built in load short circuit protection and power supply reverse wiring protection guard against wiring errors. Buyers who require a hollow shaft or a different mounting pattern should consider alternative form factors.

100 P/R Resolution With Optional Range

At the standard 100 pulses per revolution the encoder provides clear position data for speed and distance monitoring. The specification lists optional resolutions up to 5000 P/R for applications demanding finer granularity. The 6 mm thrust shaft handles 30 N radial and 20 N axial loads. Input voltage spans 5 V to 26 V, giving headroom for common industrial supplies.

Highlights

  • 38 mm compact diameter enables installation in tight spaces
  • 100 pulses per revolution deliver precise incremental position feedback
  • Internal ASIC design provides high reliability and strong anti-interference performance
  • Stainless steel spindle with metal shell ensures durability and impact resistance
  • DC 5-26 V supply with reverse-wiring and short-circuit protection safeguards operation

Specifications

TypeAT

Questions about this item

What power supply voltage must I provide for the E6B2-CWZ6C encoder?

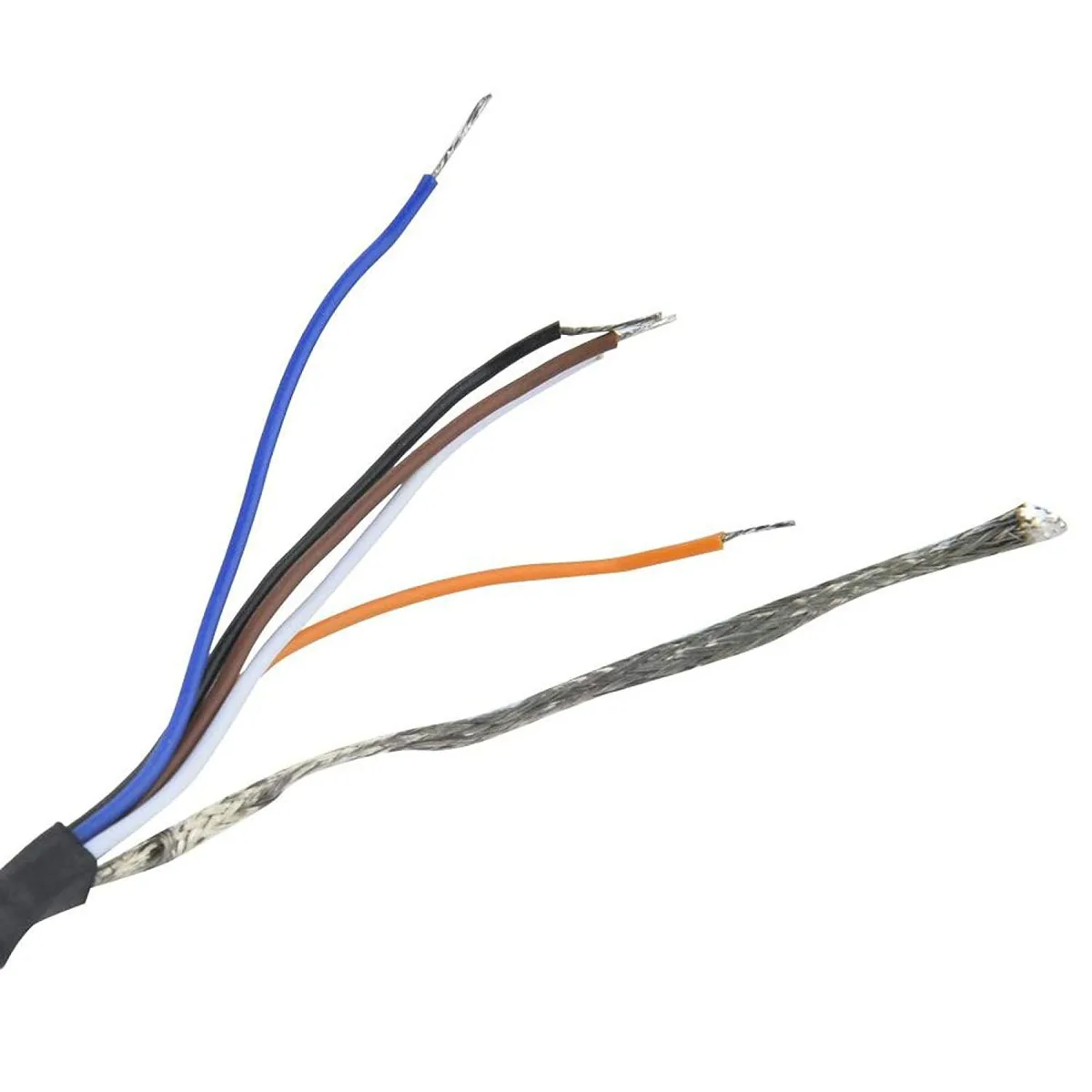

The encoder operates on a DC supply of 5 to 26 volts, connected to the brown and blue wires.

Will the 6 mm shaft handle the radial and axial loads in my existing setup?

The stainless steel spindle accepts up to 30 N radial load and 20 N thrust load.

How do I verify the encoder is outputting the correct 100 pulses per revolution after wiring?

Rotate the shaft one full turn and count 100 pulses on the A or B channel using an oscilloscope or counter.
