Small silver cylindrical encoder with 38mm metal body, stainless steel shaft and 2m cable

myVolts

myVolts E6B2-CWZ6C 38mm 1000P/R Incremental Encoder Semiconductor

SKU CH-3T7Y-8NQ4Q MPN E6B2-CWZ6C

38 mm incremental encoder delivering 1000 pulses per revolution with DC 5–26 V supply and 2 m cable

  • TypeAT
  • Reliable operation from internal ASIC devices
  • Compact 38 mm diameter fits tight spaces
  • 1000 pulses per revolution for precise feedback
  • Protected against reverse wiring and short circuits
  • Stainless steel spindle resists 30 N radial load

38 mm Incremental Encoder

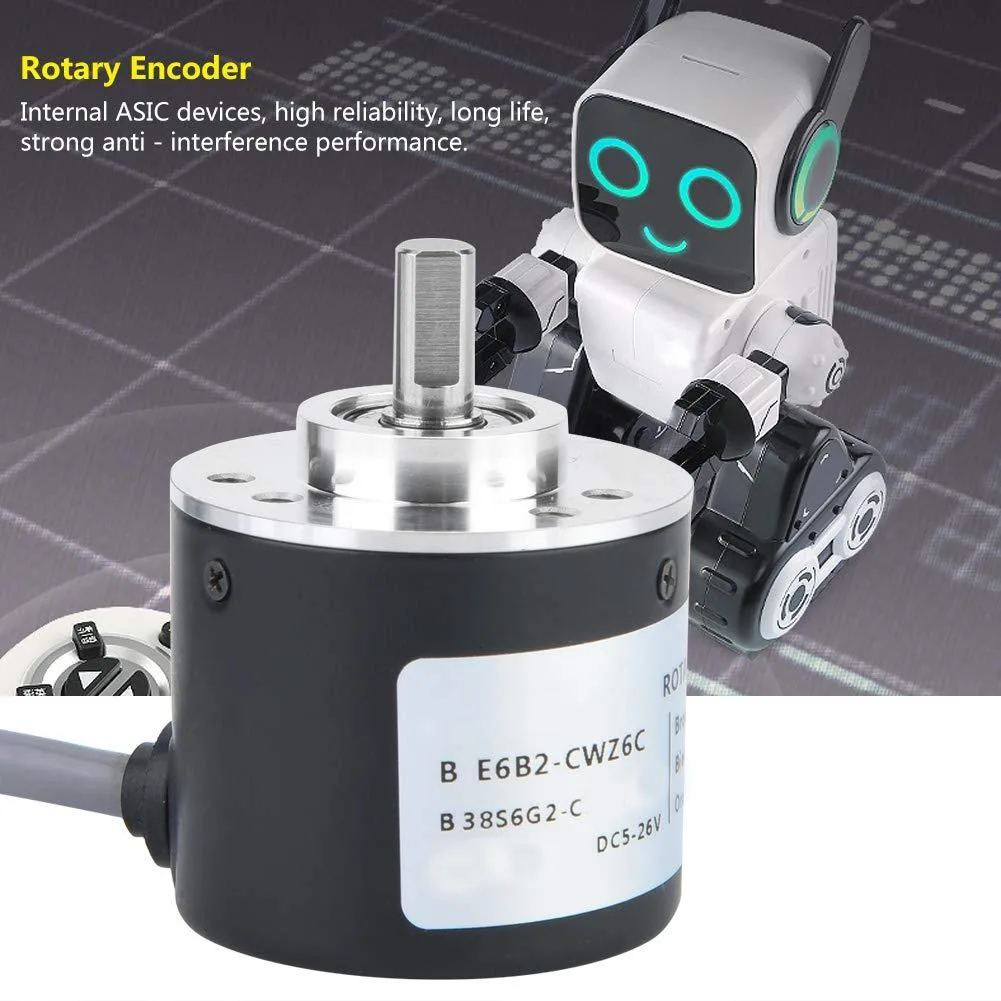

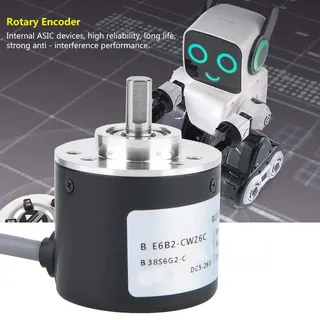

The myVolts E6B2-CWZ6C is a 38 mm diameter incremental encoder built with internal ASIC devices for high reliability and strong anti-interference performance. It features a stainless steel spindle and a robust metal shell that resists impact. The unit operates on a DC 5 to 26 V supply with open-collector output and includes both load short-circuit protection and power-supply reverse-wiring protection. Its compact structure and 2 m cable simplify installation.

Suits Precision Motion Control

This encoder suits applications that require accurate position feedback with selectable resolutions up to 5000 pulses per revolution. It supports axial loads of 30 N and thrust loads of 20 N, making it appropriate for light to moderate mechanical duty. Engineers who need a hollow-shaft or absolute output format should look at a different product type.

1000 Pulses Per Revolution Resolution

The specific model supplied delivers 1000 pulses per revolution, a key factor in matching the encoder to your controller's counting input. Optional resolutions range from 100 to 5000 P/R, but this part is fixed at 1000 P/R. Verify that your motion controller expects this exact pulse count before ordering.

Highlights

  • Reliable operation from internal ASIC devices
  • Compact 38 mm diameter fits tight spaces
  • 1000 pulses per revolution for precise feedback
  • Protected against reverse wiring and short circuits
  • Stainless steel spindle resists 30 N radial load

Specifications

TypeAT

Questions about this item

Does the 2 m cable include all connections or must I buy a separate mating connector?

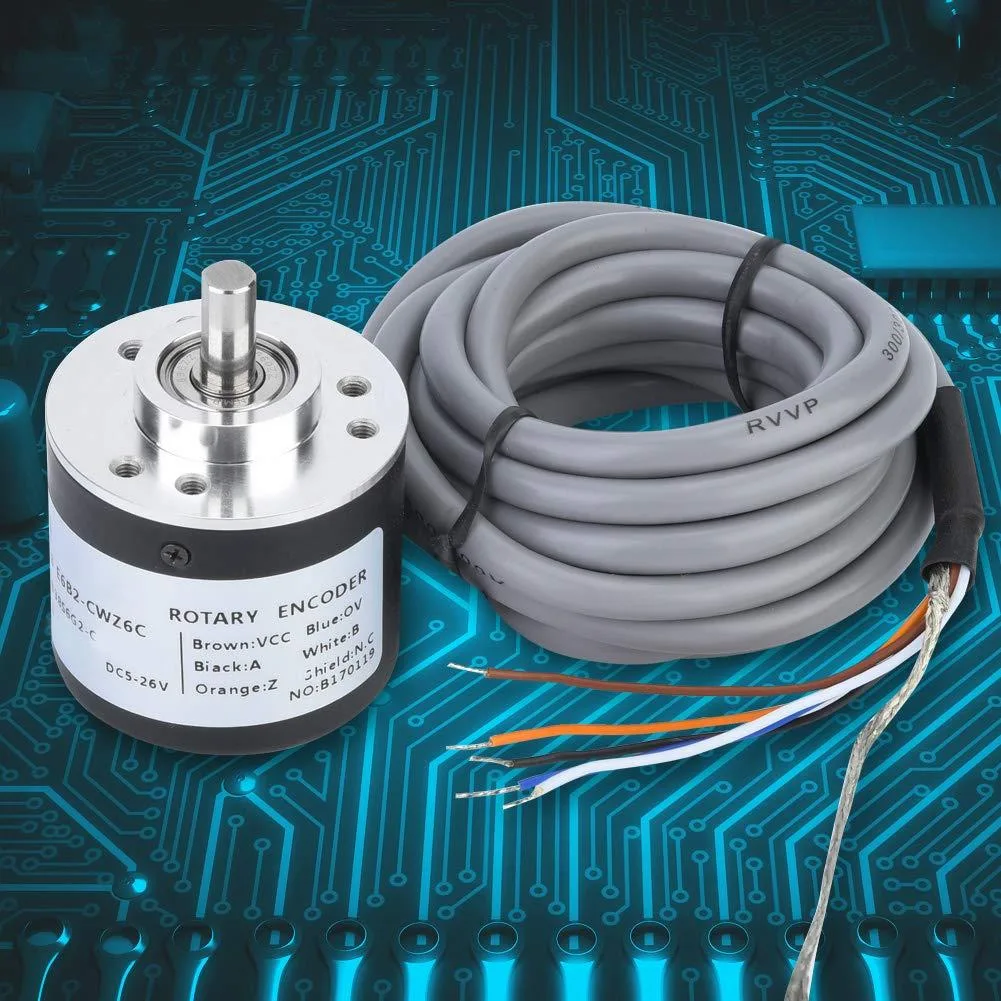

The encoder ships with a 2 m cable pre-wired; brown is DC 5–26 V positive, blue is 0 V negative, black carries the A-phase signal, white carries B-phase, orange carries Z-phase, and the shield is connected to the metal shell. No extra connector is required unless your controller needs a specific plug.

Which resolution should I select for a 1000 pulses-per-revolution requirement?

Choose the 1000 P/R option from the available list (100, 200, 300, 360, 400, 500, 600, 1000, 1024, 1200, 2000, 2500, 3600, 5000). The model suffix CWZ6C confirms the 1000 P/R version.

Will the 1000 P/R output work directly with a 24 V PLC input module?

Yes. The open-collector output operates from DC 5–26 V, so a 24 V supply is within range. The encoder also provides load short-circuit protection and power-supply reverse-wiring protection for safe PLC interfacing.
