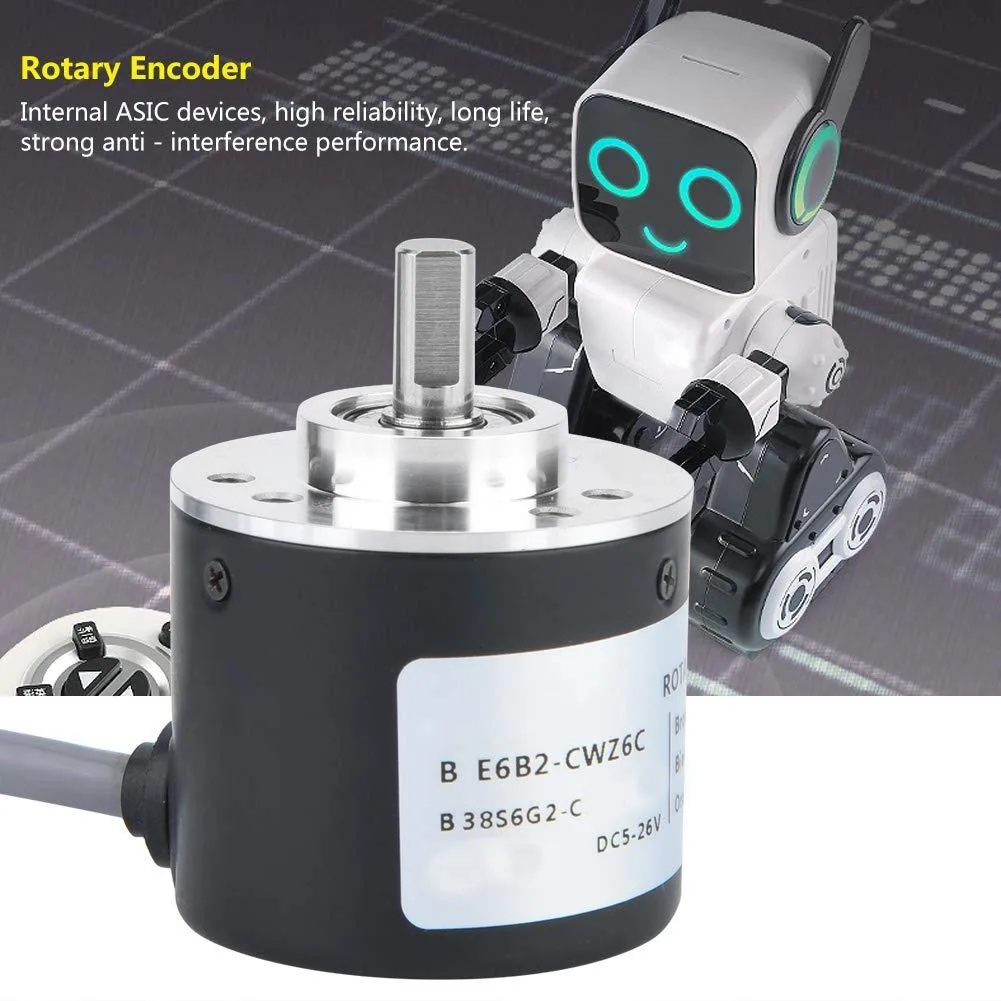

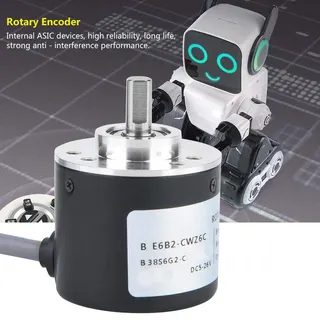

myVolts E6B2-CWZ6C 38 mm incremental encoder 2500 P/R
38 mm incremental encoder delivering 2500 pulses per revolution with DC 5–26 V supply and multiple output options
- TypeAT
- High-resolution positioning with 2500 pulses per revolution
- Reliable operation from internal ASIC design with strong anti-interference
- Durable stainless steel spindle and solid metal shell resist impact
- Protected against load short circuits and reverse wiring faults
- Flexible DC 5 to 26 V input suits varied power supplies
38 mm incremental encoder for motion control
The myVolts E6B2-CWZ6C is a 38 mm diameter incremental encoder built for precise position feedback. It offers a 2500 pulses-per-revolution resolution with optional settings from 100 to 5000 P/R. The unit operates on a DC 5 to 26 V supply and provides multiple output modes including voltage, collector, complementary, push-pull, long-line drive, differential and fork outputs. A, B and Z phase signals are standard.
Suited for CNC, robotics
This encoder fits applications that require a small, robust sensor with a 6 mm shaft and high anti-interference performance. Its stainless steel spindle and metal shell handle 30 N radial and 20 N thrust loads. Builders who need absolute position data, a hollow shaft, or a larger bore diameter should look at alternative encoder types.
Mounts directly on a 6 mm motor shaft
The compact alloy and aluminium body installs easily in tight machine spaces. It connects via colour-coded wires: brown for positive supply, blue for ground, and black for signal outputs. Built-in short-circuit and reverse-polarity protection safeguard the internal ASIC circuitry. The encoder requires a compatible DC 5 to 26 V power source and a motion controller able to read the chosen output format.
Highlights
- High-resolution positioning with 2500 pulses per revolution
- Reliable operation from internal ASIC design with strong anti-interference
- Durable stainless steel spindle and solid metal shell resist impact
- Protected against load short circuits and reverse wiring faults
- Flexible DC 5 to 26 V input suits varied power supplies
Specifications
| Type | AT |
|---|
Questions about this item
What power supply voltage range must my system provide for the E6B2-CWZ6C encoder?
The encoder operates on a DC 5 to 26 V supply connected to the brown and blue wires, with reverse-wiring protection built in.
Will the 38 mm encoder shaft handle the radial and axial loads from my existing mounting bracket?
The stainless-steel 6 mm shaft is rated for 30 N radial load and 20 N axial thrust, suitable for typical bracket mounting.
How can I verify the encoder is outputting the correct 2500 pulses per revolution after wiring it up?
Rotate the shaft one full turn and count 2500 pulses on the A or B channel using an oscilloscope or counter card.
