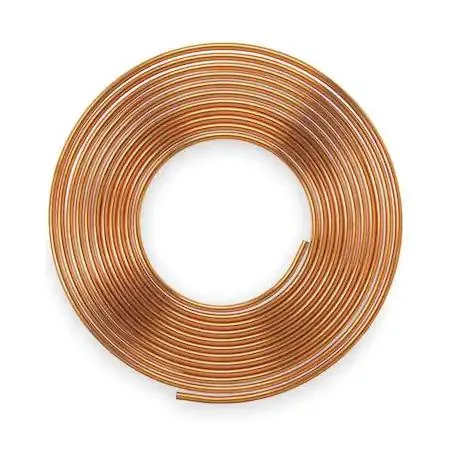

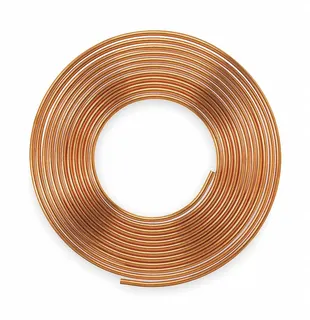

Coiled copper tubing, 5/8 inch outside diameter, 60 foot length, soft temper

Mueller Industries, Inc.

Mueller Industries KS04060 Copper K Trap Coil 5/8 in OD 60 ft

SKU CH-RZ5M-NCZEX MPN KS04060

Seamless copper K-type coil, 60 ft length, 5/8 in OD, rated 713 psi at 200°F and 400°F max temperature

  • TypeDrain Components
  • ASTM B88 and NSF/ANSI/CAN 61 certified for potable water systems
  • 60-foot seamless coil reduces joints and speeds installation
  • C12200 copper alloy rated to 713 psi at 200 °F
  • Soft temper allows hand bending without special tools
  • 5/8 in OD Type K wall thickness of .049 in for durability

Coil Tubing for Potable Water Systems

This 60 ft coil of Type K copper tubing is sized at 5/8 in outside diameter with a 0.527 in inside diameter. The seamless C12200 copper construction meets ASTM B88, NSF 372 and NSF/ANSI/CAN 61 standards for potable water applications. It is supplied in a soft temper for easier bending during installation.

Upgrading from Type M or Flexible Alternatives

Type K wall thickness of 0.049 in provides a higher pressure rating of 713 psi at 200 Degrees F compared to thinner-wall options. The jump is worth it when local codes require Type K for underground service lines or when maximum operating temperatures up to 400 Degrees F are expected.

Verify System Compatibility Before Ordering

Confirm that 1/2 in copper tube size matches your existing fittings and that soft temper coil form suits the planned routing. Ensure the installation environment does not exceed the listed pressure and temperature limits. No cleaning or capping is performed at the factory, so end preparation is required on site.

Highlights

  • ASTM B88 and NSF/ANSI/CAN 61 certified for potable water systems
  • 60-foot seamless coil reduces joints and speeds installation
  • C12200 copper alloy rated to 713 psi at 200 °F
  • Soft temper allows hand bending without special tools
  • 5/8 in OD Type K wall thickness of .049 in for durability

Specifications

TypeDrain Components
BrandMueller Industries
ModelKS04060

Questions about this item

What wall thickness and outside diameter does the KS04060 coil need for a proper solder joint?

The coil has a 0.049 in wall thickness and a 5/8 in outside diameter, so fittings and solder gaps must match those dimensions.

How do you unroll the 60 ft soft-temper copper coil without kinking it, and what step do installers often skip?

Lay the coil flat, straighten it by hand from the centre outward, and always deburr the 0.527 in inside diameter after cutting — skipping deburring causes leaks.

When should the C12200 copper coil be inspected or replaced in a potable-water system?

Inspect annually for green corrosion or pitting at joints; the soft temper resists fatigue but can work-harden over time, so replace any section that shows cracking or loss of pressure rating.
