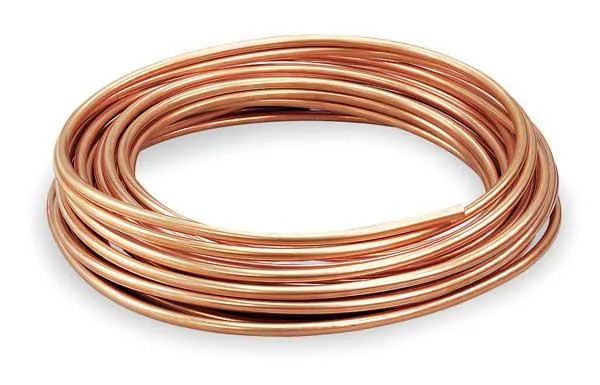

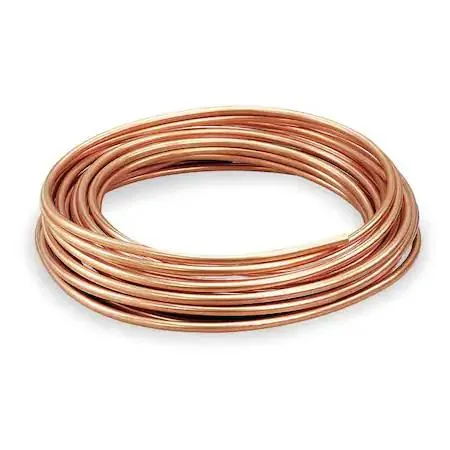

Coiled copper tubing, 5/8 inch OD, 60 foot length, soft temper

Mueller Industries, Inc.

Mueller Industries, Inc. 618F 5/8 in OD 60 ft L Trap

SKU CH-2AX3-S97TW MPN 618F

Seamless copper coil tubing for potable water, 60 ft length with 5/8 in outside diameter and 0.04 in wall thickness

  • TypeDrain Components
  • 60 ft continuous coil reduces joints for faster installs
  • Type L wall rated to 577 psi at 200 °F for reliable pressure handling
  • Seamless C12200 copper meets ASTM B88, NSF 372 and NSF/ANSI/CAN 61
  • Soft temper allows hand bending without kinking or special tools
  • 5/8 in OD with 0.545 in ID fits standard 1/2 in CTS fittings

1/2 in CTS Type L copper coil

This 60 ft coil of seamless copper tubing is built for potable-water supply lines in residential and light-commercial plumbing. The soft temper allows hand bending around framing and obstacles without kinking, reducing the number of fittings required on a job site. It meets ASTM B88, NSF 372 and NSF/ANSI/CAN 61 for drinking-water safety.

Replaces rigid straight lengths

Switching from rigid 1/2 in CTS straight lengths to this coil cuts installation time on long runs because fewer joints are needed. The Type L wall at .04 in thickness handles 577 psi at 200 Degrees F, so it covers hot-water recirculation loops that would exceed the rating of thinner Type M tube. The jump is worth it when a project demands continuous runs through joists or slab penetrations where solder joints are difficult to inspect.

Verify system pressure.

Confirm the supply pressure will not exceed 577 psi and the water temperature stays at or below 400 Degrees F. Check that local amendments to the plumbing code accept ASTM B88 Type L copper for the intended application. Ensure fittings and solder materials are compatible with C12200 copper and the .545 in inside diameter.

Highlights

  • 60 ft continuous coil reduces joints for faster installs
  • Type L wall rated to 577 psi at 200 °F for reliable pressure handling
  • Seamless C12200 copper meets ASTM B88, NSF 372 and NSF/ANSI/CAN 61
  • Soft temper allows hand bending without kinking or special tools
  • 5/8 in OD with 0.545 in ID fits standard 1/2 in CTS fittings

Specifications

TypeDrain Components
BrandMueller Industries
Model618F

Questions about this item

What size fittings and clearance does the 5/8 in outside diameter coil require?

The tubing has a 5/8 in outside diameter and 0.04 in wall thickness, so fittings sized for 1/2 in copper tube size L will match; allow enough straight run for the coil to unroll without kinking.

How do I unroll and install the 60 ft coil without kinking the soft temper copper?

Lay the coil flat, straighten sections by hand using a wide-radius bend, and support the tubing every few feet; the soft temper C12200 copper bends easily but will kink if forced around a tight radius.

When should the seamless copper tubing be inspected or replaced in a potable water system?

Inspect joints and exposed runs annually for green corrosion or pitting; the NSF/ANSI/CAN 61 and NSF 372 ratings confirm lead-free material, but local water chemistry determines actual service life.
