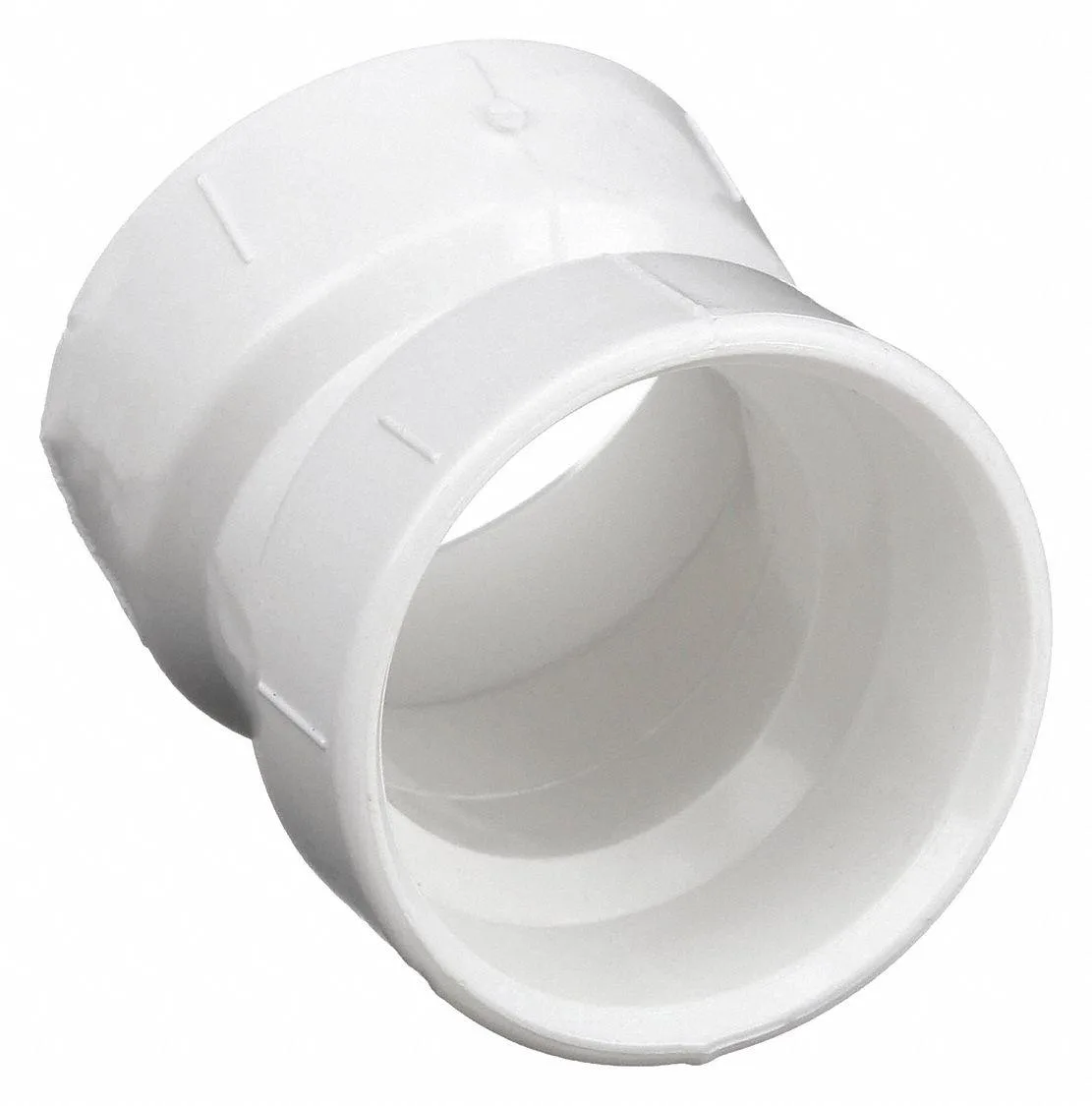

White PVC drain elbow with hub connection, 22-1/2 degree angle

Mueller Industries, Inc.

Mueller Industries, Inc. 05988 6" Hub PVC DWV 22-1/2 Degree Elbow

SKU CH-4P85-T829B MPN 05988

A 6-inch PVC DWV elbow that changes flow direction by 22-1/2 degrees with a hub connection for Schedule 40 pipe

  • TypeDrain Components
  • ColorWhite
  • Schedule 40 PVC handles 140 °F continuous service
  • Hub connection fits 6 in DWV pipe directly
  • 22-1/2° angle enables smooth directional changes
  • Meets ASTM D1784, D2665 and D3311 standards
  • White PVC resists corrosion in drain systems

6 in PVC DWV Hub Elbow 22-1/2 Degrees

This Schedule 40 PVC fitting joins two 6 inch hub connections at a shallow 22-1/2 degree angle. The white material meets ASTM D1784 Class 12454, ASTM D2665 and D3311 standards for drain waste and vent systems. It is rated for a maximum temperature of 140 degrees F and is not rated for pressure applications.

Installers needing a gentle directional change

The shallow sweep suits long-run offsets where a tighter bend would restrict flow or clash with framing. It will not serve pressure piping, hot-water supply above 140 degrees F, or any joint size other than 6 inch hub. Builders needing solvent-weld spigot ends or a different angle must select another fitting.

6 inch hub connection type

The hub-to-hub design accepts standard 6 inch DWV pipe with solvent cement. The Schedule 40 wall thickness and PVC composition determine chemical resistance and structural rigidity for gravity drainage. Verify that your piping system uses hub joints and operates within the 140 degree F limit before specifying this elbow.

Highlights

  • Schedule 40 PVC handles 140 °F continuous service
  • Hub connection fits 6 in DWV pipe directly
  • 22-1/2° angle enables smooth directional changes
  • Meets ASTM D1784, D2665 and D3311 standards
  • White PVC resists corrosion in drain systems

Specifications

TypeDrain Components
ColorWhite
BrandMueller Industries
Model05988

Questions about this item

What pipe size does the 6 in hub elbow fit?

The hub connection accepts 6 in Schedule 40 PVC pipe for drain, waste and vent systems.

How do I solvent-weld the hub joint without leaks?

Clean both socket and pipe, apply primer then cement, insert fully with a quarter turn, and hold for the cement manufacturer's recommended set time.

When should the fitting be replaced due to temperature exposure?

Replace if the system routinely exceeds the 140 Degrees F maximum service temperature, as prolonged heat can degrade the PVC material.
