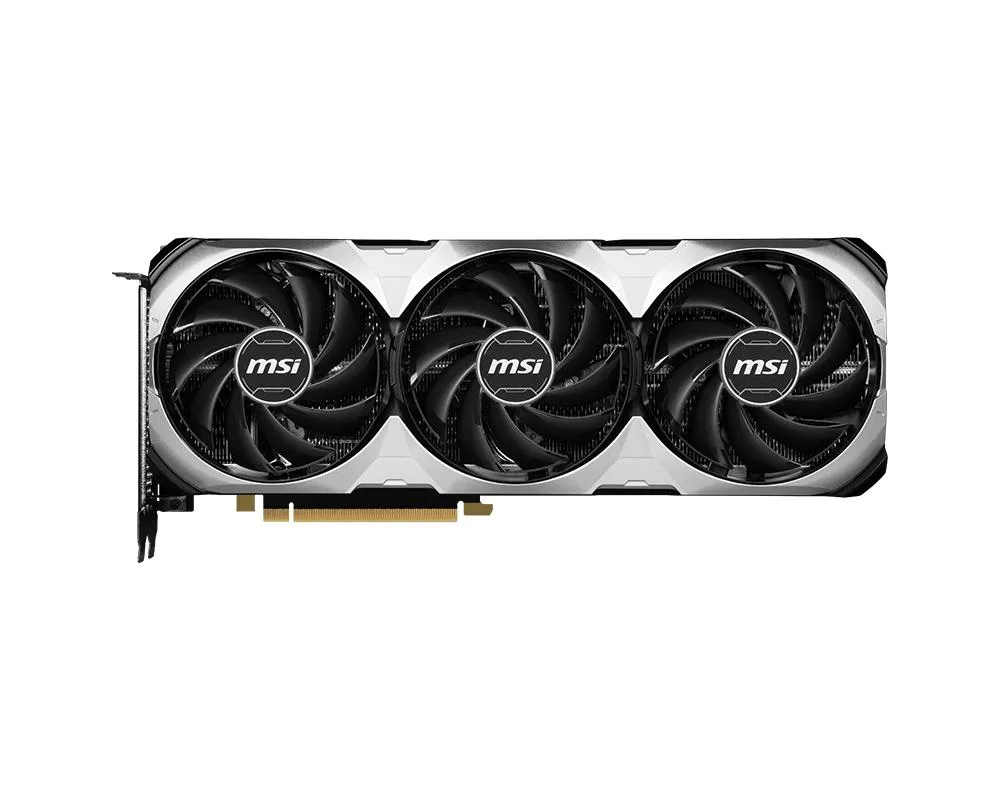

MSI Ventus GeForce RTX 4070 Ti 12GB GDDR6X graphics card
GeForce RTX 4070 Ti graphics card with 12GB GDDR6X memory, 7680 CUDA cores and a 2640 MHz boost clock for high-resolution gaming and creative workloads
- InterfacePCI Express 4.0
- Chipset ManufacturerNVIDIA
- GPU SeriesNVIDIA GeForce RTX 40 Series
- GPUGeForce RTX 4070 Ti
- Boost Clock2640 MHz
- CUDA Cores7680
- 12GB GDDR6X memory at 21 Gbps for high bandwidth in 4K workloads
- 7680 CUDA cores accelerate ray-tracing and AI compute tasks
- Boost clock reaches 2640 MHz for responsive gaming performance
- HDMI 2.1a plus three DisplayPort 1.4a outputs drive four displays
- PCI Express 4.0 interface matches modern motherboard bandwidth
GeForce RTX 4070 Ti 12GB GDDR6X
The MSI Ventus model is a graphics card built for 1440p and 4K gaming as well as GPU-accelerated creative work. It uses the NVIDIA Ada Lovelace architecture and fits a standard ATX form factor. The triple-fan cooler keeps thermals in check during sustained loads.
7680 CUDA cores at 2640 MHz boost
The 7680 CUDA cores running up to 2640 MHz determine raw shader throughput for rasterisation and compute tasks. 12 GB of GDDR6X on a 192-bit bus running at 21 Gbps feeds those cores. This combination decides whether the card meets your performance target.
PCIe 4.0 slot and three DisplayPort 1.4a outputs
The card needs a PCIe 4.0 slot and external power connectors from the PSU. Three DisplayPort 1.4a ports and one HDMI 2.1a port drive up to four displays at 7680 x 4320 resolution. DirectX 12 Ultimate and OpenGL 4.6 support cover modern APIs.
Highlights
- 12GB GDDR6X memory at 21 Gbps for high bandwidth in 4K workloads
- 7680 CUDA cores accelerate ray-tracing and AI compute tasks
- Boost clock reaches 2640 MHz for responsive gaming performance
- HDMI 2.1a plus three DisplayPort 1.4a outputs drive four displays
- PCI Express 4.0 interface matches modern motherboard bandwidth
Specifications
| Brand | MSI |
|---|---|
| Series | Ventus |
| Model | RTX 4070 Ti VENTUS 3X E 12G OC |
| Interface | PCI Express 4.0 |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 40 Series |
| GPU | GeForce RTX 4070 Ti |
| Boost Clock | 2640 MHz |
| CUDA Cores | 7680 |
| Effective Memory Clock | 21000 MHz (21 Gbps) |
| Memory Size | 12GB |
| Memory Interface | 192-Bit |
| Memory Type | GDDR6X |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI 2.1a |
| DisplayPort | 3 x DisplayPort 1.4a |
| Color | Silver |
| Max Resolution | 7680 x 4320 |
| Cooler | Triple Fans |
| Thermal Design Power | 285W |
| Recommended PSU Wattage | 700W |
| Power Connector | 1 x 16-Pin |
| HDCP Ready | Yes |
| Form Factor | ATX |
| Max GPU Length | 308 mm |
Questions about this item
What does the 2640 MHz boost clock mean once the card is installed in a real machine?
It is the maximum frequency the GPU can reach under load when power and temperature limits allow, giving higher frame rates in demanding scenes.
What does the PCI Express 4.0 interface cap in practice?
The slot provides up to 4.0 bandwidth, so the card runs at full speed on any 4.0 or newer motherboard and will fall back to 3.0 speeds on older boards.
What does the triple-fan Ventus cooler need to fit inside a case?
The 3X design occupies three expansion slots and needs enough case length and width clearance for the full card profile.
