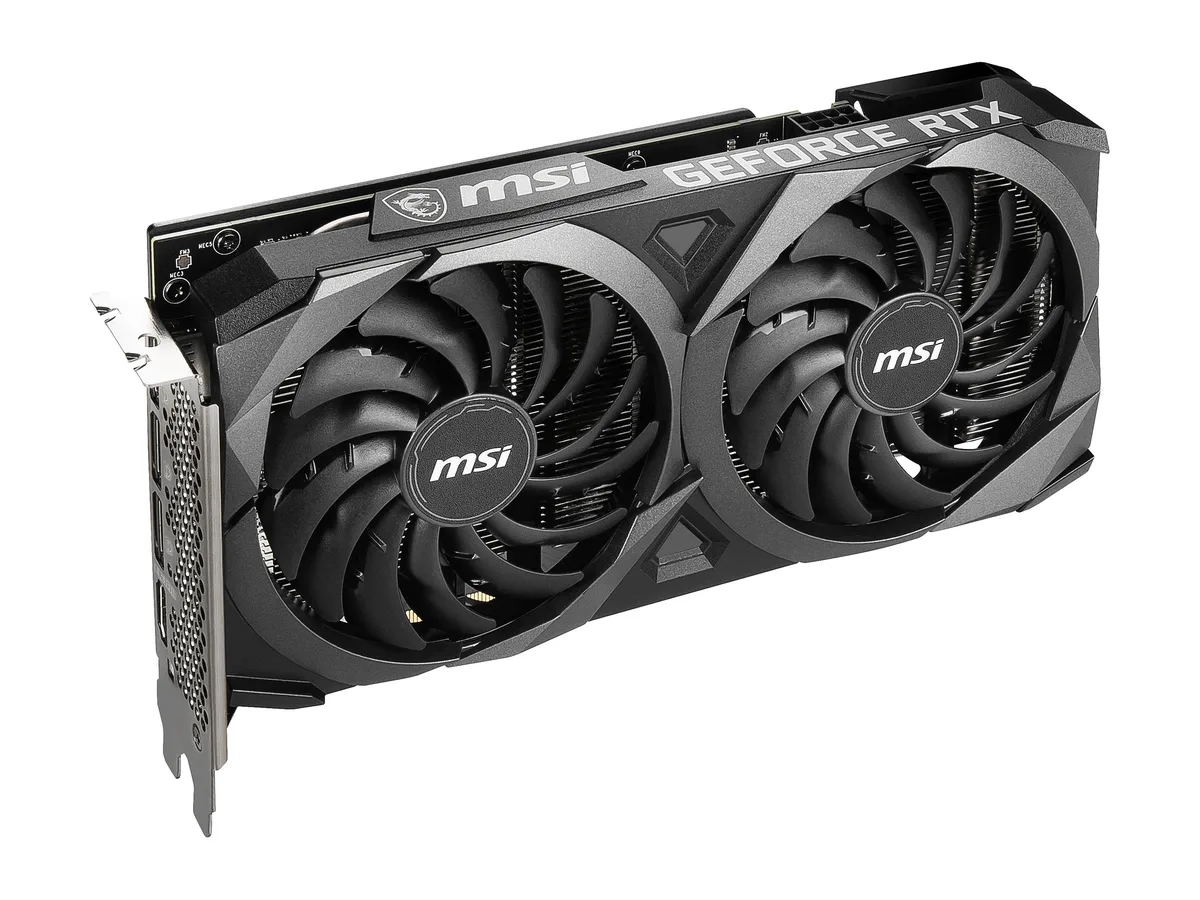

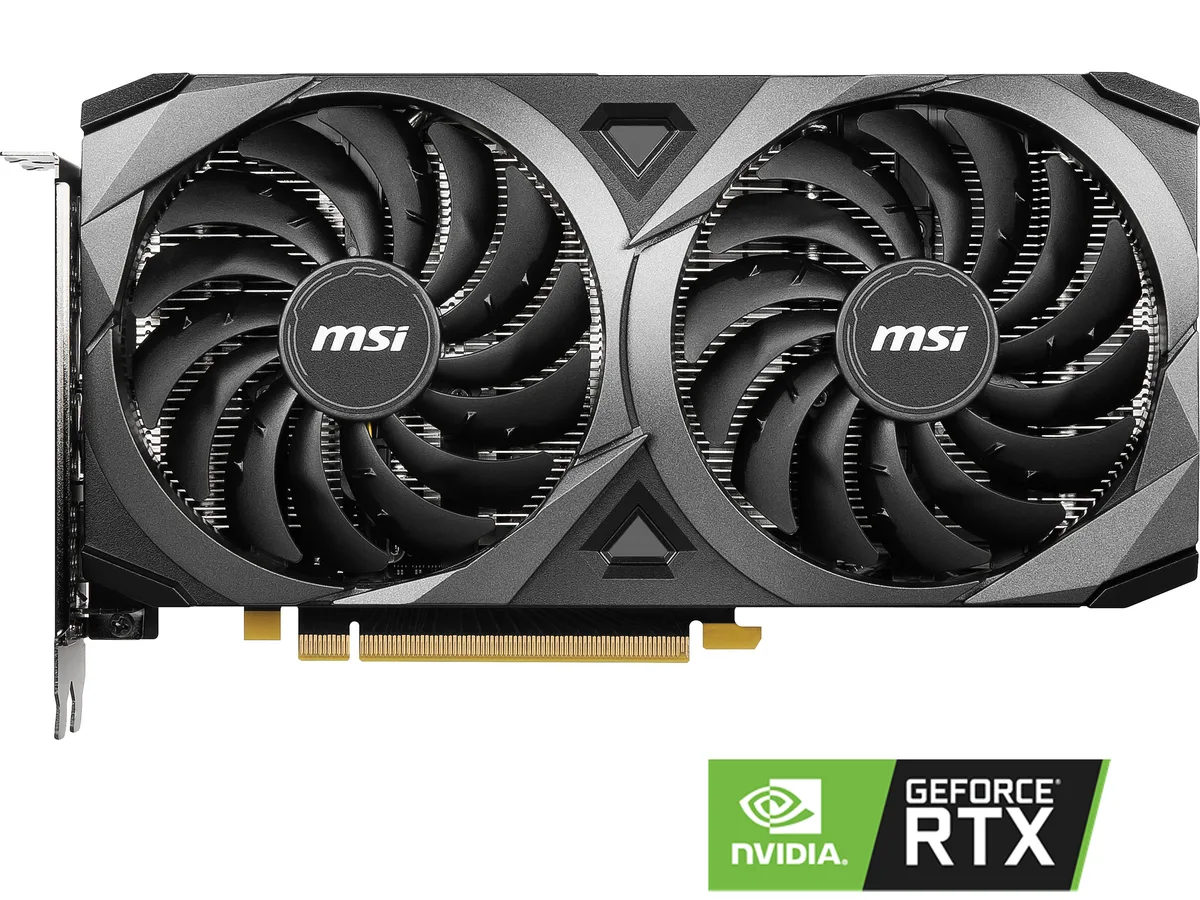

MSI RTX3060Ventus2X12GOC graphics card
A 12GB GDDR6 graphics card with a 192-bit bus, 1807 MHz boost clock and 3584 CUDA cores for 1440p gaming
- InterfacePCI Express 4.0
- Chipset ManufacturerNVIDIA
- GPU SeriesNVIDIA GeForce RTX 30 Series
- GPUGeForce RTX 3060
- Boost Clock1807 MHz
- CUDA Cores3584
- 12 GB GDDR6 memory handles large textures at 15 Gbps
- Boost clock reaches 1807 MHz for higher frame rates
- 3584 CUDA cores accelerate ray-tracing and compute workloads
- HDMI 2.1 plus three DisplayPort 1.4a outputs drive four 8K displays
- Dual-fan TORX 3.0 cooler keeps the 170 W board quiet under load
12GB GDDR6 graphics card
The MSI Ventus RTX 3060 12G OC delivers 12GB of GDDR6 memory across a 192-bit bus. It targets 1080p and 1440p gaming as well as entry-level content creation. The PCI Express 4.0 interface and 3584 CUDA cores provide a balanced foundation for modern titles and GPU-accelerated workflows.
Sustained load behaviour
A 170W thermal design power rating is managed by a dual-fan cooler using TORX Fan 3.0 blades for high static pressure. The single 8-pin power connector feeds the 1807 MHz boost clock under continuous workloads. A 550W power supply is recommended to maintain stable operation during extended sessions.
Connectors and mounting

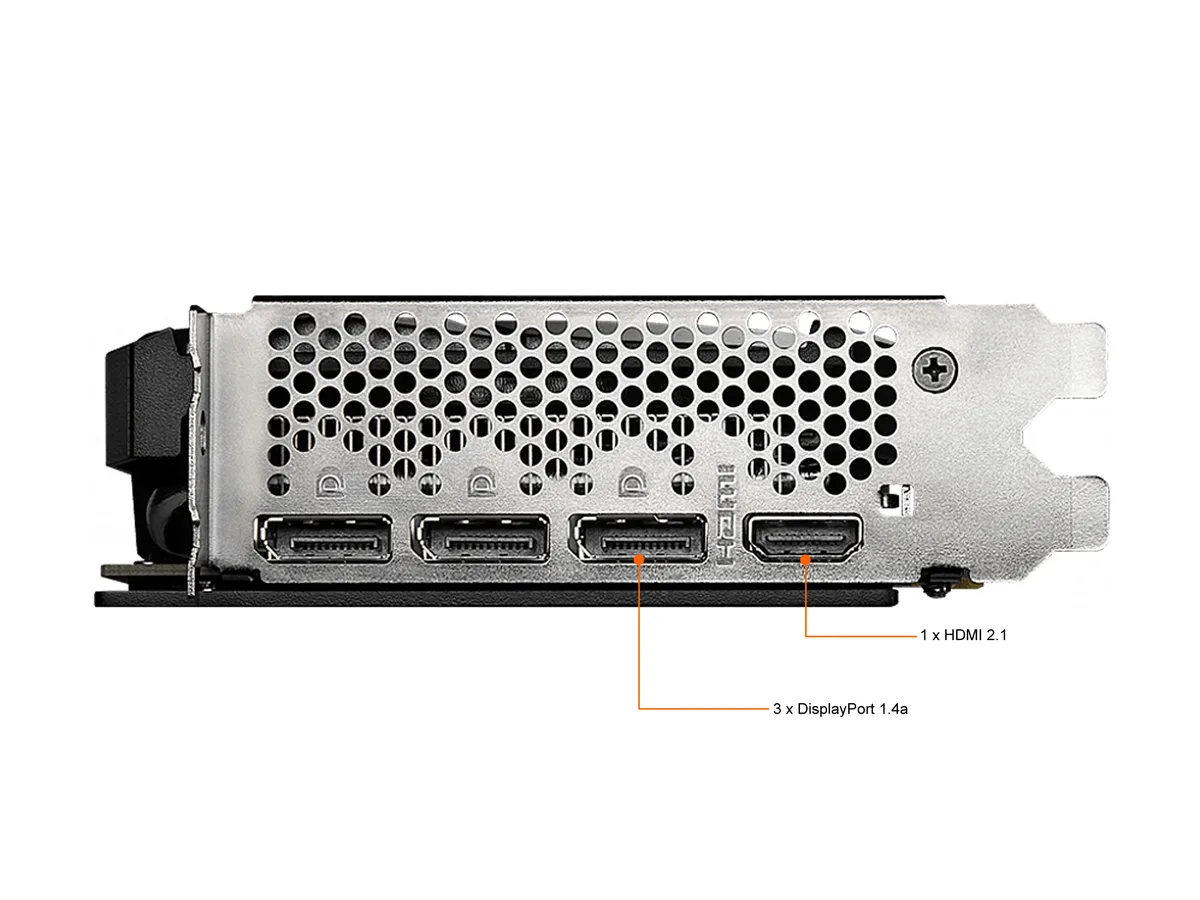

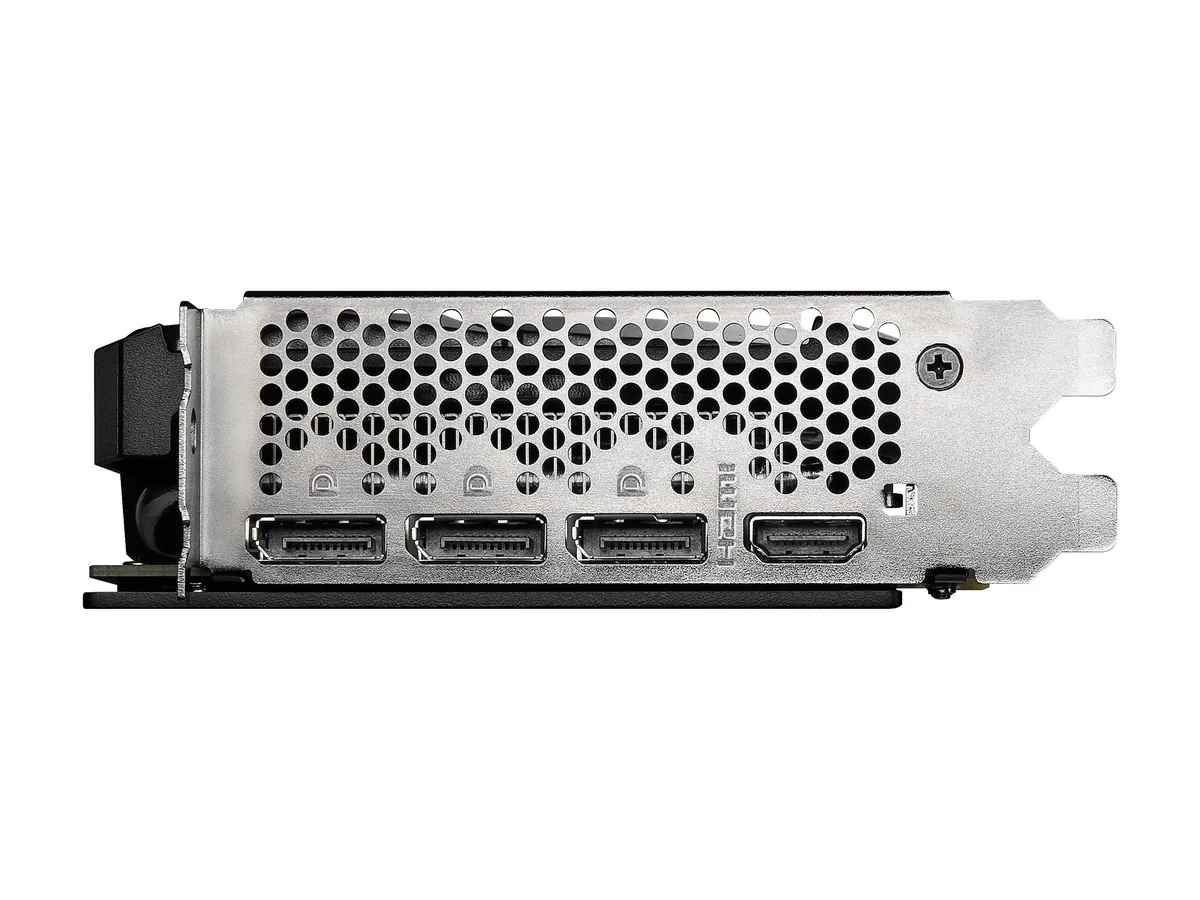

One HDMI 2.1 port and three DisplayPort 1.4a outputs drive up to four displays at 7680 x 4320 resolution. The black dual-slot bracket fits standard ATX chassis without special brackets. HDCP support and VR readiness simplify protected content playback and headset setup.
Highlights
- 12 GB GDDR6 memory handles large textures at 15 Gbps
- Boost clock reaches 1807 MHz for higher frame rates
- 3584 CUDA cores accelerate ray-tracing and compute workloads
- HDMI 2.1 plus three DisplayPort 1.4a outputs drive four 8K displays
- Dual-fan TORX 3.0 cooler keeps the 170 W board quiet under load
Specifications
| Brand | MSI |
|---|---|
| Series | Ventus |
| Model | RTX 3060 Ventus 2X 12G OC |
| Interface | PCI Express 4.0 |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 30 Series |
| GPU | GeForce RTX 3060 |
| Boost Clock | 1807 MHz |
| CUDA Cores | 3584 |
| Effective Memory Clock | 15 Gbps |
| Memory Size | 12GB |
| Memory Interface | 192-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI 2.1 |
| DisplayPort | 3 x DisplayPort 1.4a |
| Color | Black |
| Max Resolution | 7680 x 4320 |
| Virtual Reality Ready | Yes |
| Cooler | Double Fans |
| Thermal Design Power | 170W |
| Recommended PSU Wattage | 550W |
| Power Connector | 1 x 8-pin |
| HDCP Ready | Yes |
| Features | Dual Fan Thermal Design: TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance. Afterburner Overclocking Utility: Supports multi-GPU setups. OC Scanner: An automated function finds the highest stable overclock settings. On Screen Display: Provides real-time information of your system's performance. Predator: In-game video recording. Dragon Center: MSI's exclusive Dragon Center software lets you monitor, tweak and optimize MSI products in real-time. |
| Max GPU Length | 235 mm |

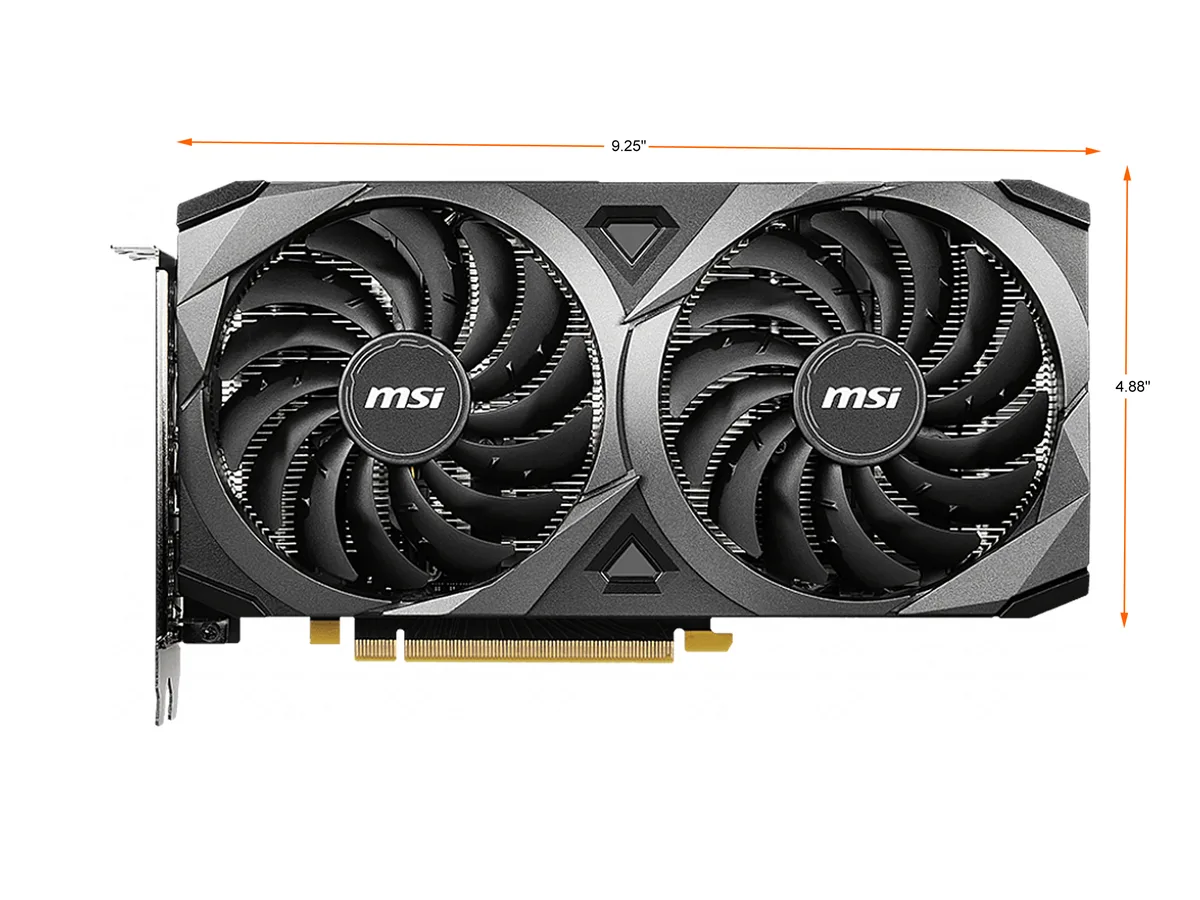

| Card Dimensions (L x H) | 9.25" x 4.88" |
| Shipping weight | 1.02 kg |
| Package size | 305 × 222 × 70 mm |
