MSI

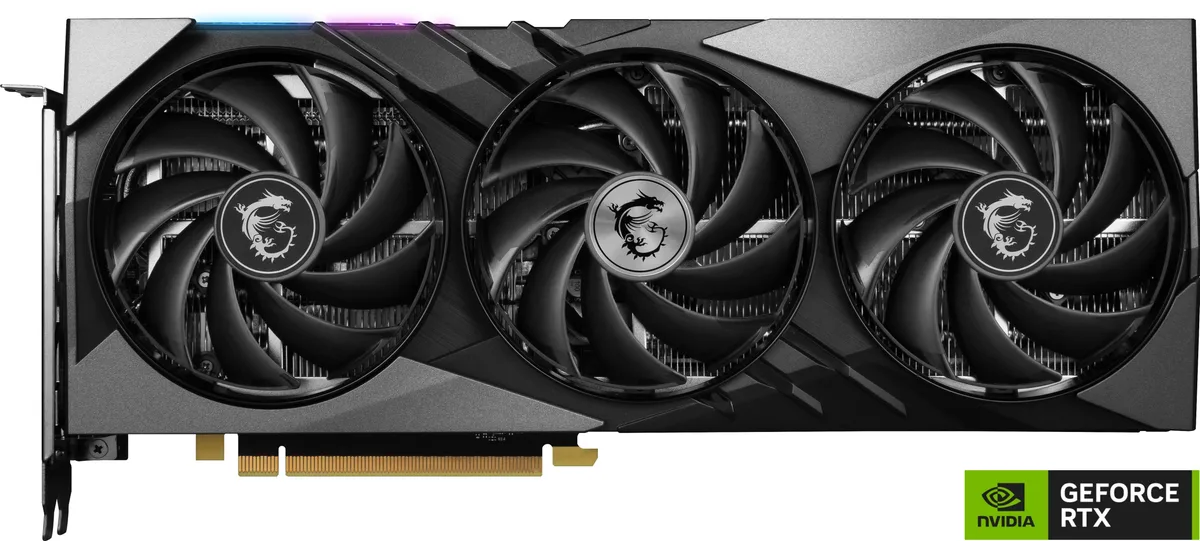

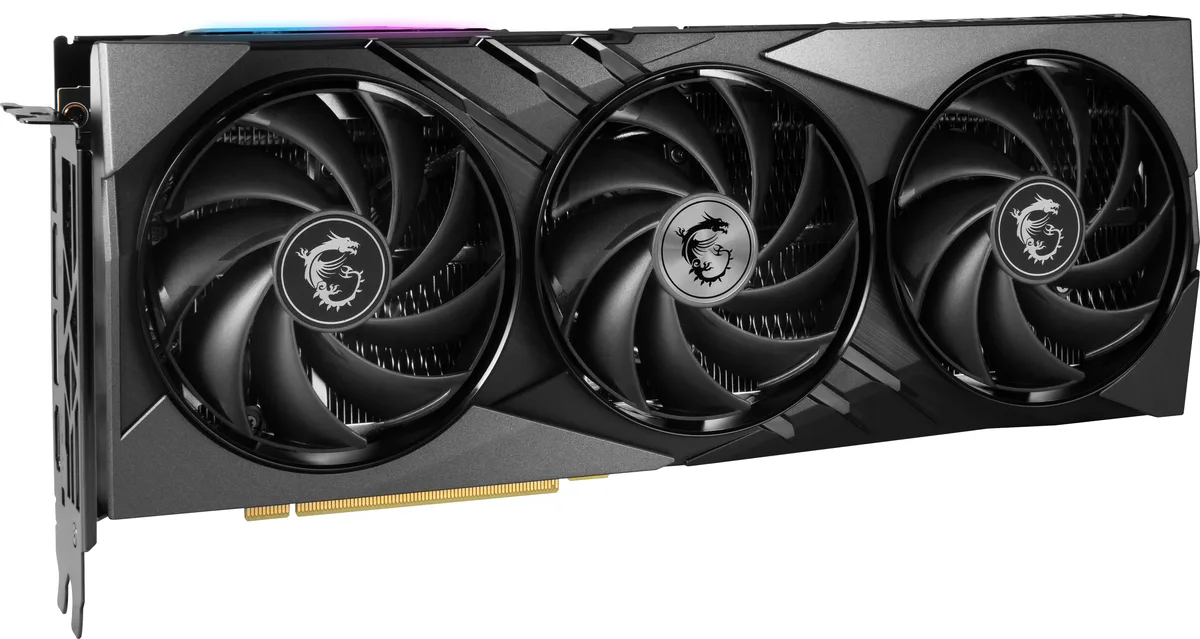

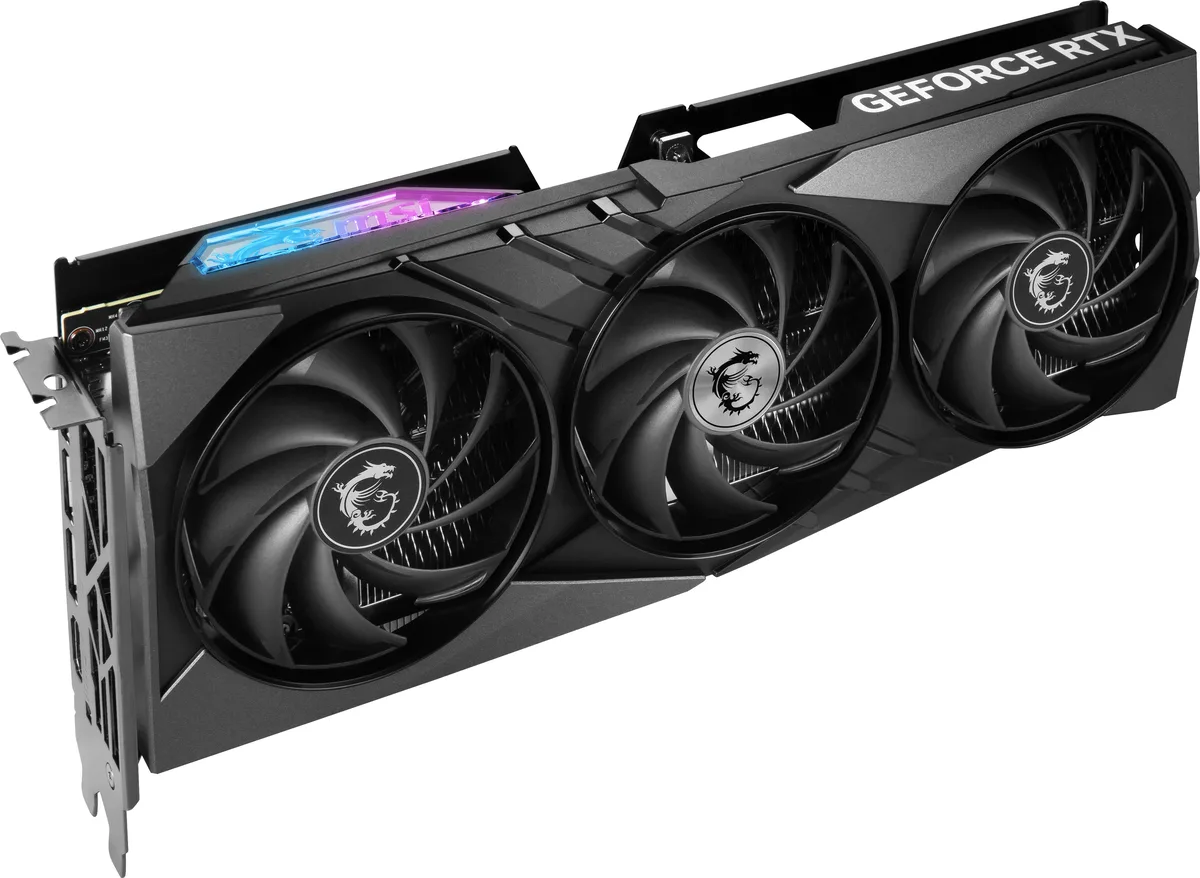

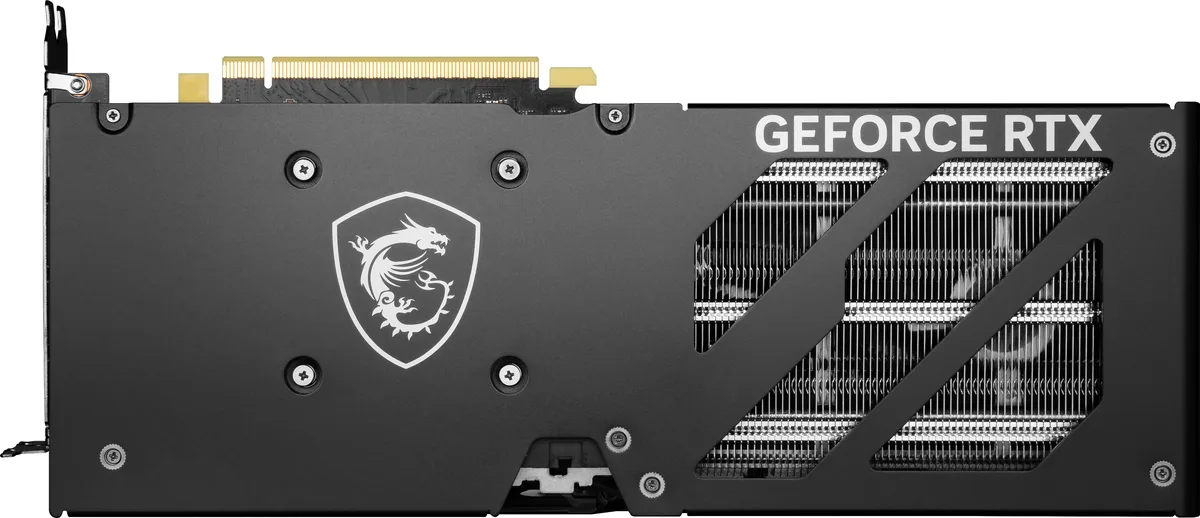

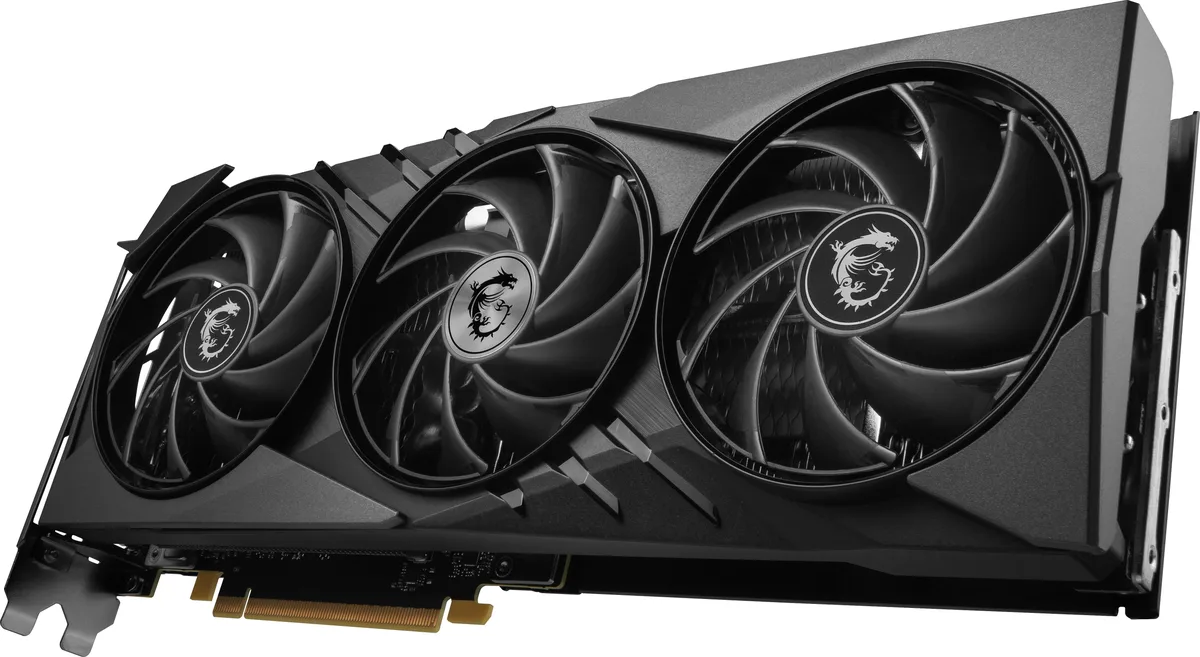

MSI RTX 4060 TI GAMING X SLIM 16G graphics card
A 16 GB GDDR6 graphics card with 4352 CUDA cores, 2670 MHz boost clock and triple-fan cooling for 1080p and 1440p gaming
- InterfacePCI Express 4.0 x8
- Chipset ManufacturerNVIDIA
- GPU SeriesNVIDIA GeForce RTX 40 Series
- GPUGeForce RTX 4060 Ti
- Boost Clock2670 MHz
- CUDA Cores4352
- 16 GB GDDR6 memory supports high-resolution textures
- Boost clock reaches 2670 MHz for responsive performance
- Triple-fan cooler keeps thermals in check
- HDMI 2.1a and three DisplayPort 1.4a outputs drive four displays
- PCI Express 4.0 x8 interface provides ample bandwidth
16GB GDDR6 graphics card for 1440p gaming
The MSI RTX 4060 TI GAMING X SLIM 16G delivers 16GB of GDDR6 memory across a 128-bit interface with an effective clock of 18000 MHz. A boost clock of 2670 MHz drives 4352 CUDA cores for high frame rates at 1440p. The PCI Express 4.0 x8 connection fits modern platforms without requiring a full x16 slot.
Triple-fan cooler sustains 165W under load
Three fans keep the GPU near its 2670 MHz boost during extended sessions rather than throttling after a short burst. The 165W thermal design power is fed by a single 8-pin connector, so cable routing stays simple. Steady airflow across the heatsink maintains consistent clocks in long gaming or rendering workloads.
Check 307 mm length and 550W power supply
Measure your case clearance against the 307 mm card length before ordering. Verify the power supply provides at least 550W and includes an 8-pin PCIe cable for the connector. The ATX form factor and triple-slot bracket require three rear expansion slots for the HDMI 2.1a and three DisplayPort 1.4a outputs.
Highlights
- 16 GB GDDR6 memory supports high-resolution textures
- Boost clock reaches 2670 MHz for responsive performance
- Triple-fan cooler keeps thermals in check
- HDMI 2.1a and three DisplayPort 1.4a outputs drive four displays
- PCI Express 4.0 x8 interface provides ample bandwidth
Specifications
| Brand | MSI |
|---|---|
| Series | Gaming |
| Model | RTX 4060 TI GAMING X SLIM 16G |
| Interface | PCI Express 4.0 x8 |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 40 Series |
| GPU | GeForce RTX 4060 Ti |
| Boost Clock | 2670 MHz |
| CUDA Cores | 4352 |
| Effective Memory Clock | 18000 MHz (18 Gbps) |
| Memory Size | 16GB |
| Memory Interface | 128-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI 2.1a |
| DisplayPort | 3 x DisplayPort 1.4a |
| Max Resolution | 7680 x 4320 |
| Cooler | Triple Fans |
| Thermal Design Power | 165W |
| Recommended PSU Wattage | 550W |
| Power Connector | 8-Pin |
| Form Factor | ATX |
| Max GPU Length | 307 mm |
| Shipping weight | 2.00 kg |
| Package size | 412 × 271 × 97 mm |
Questions about this item
How much heat does the triple-fan cooler need to shift when the card runs at its 165 W power limit all day?
The card is rated at 165 W Thermal Design Power, so the triple-fan cooler must dissipate that heat continuously under full load.
My power supply only has a single 8-pin PCIe connector — is that enough for this card?
Yes, the board draws auxiliary power through one 8-pin connector and the manufacturer recommends a 550 W supply.
Will the PCI Express 4.0 x8 interface slow the card down on my older PCIe 3.0 motherboard?
The card uses a PCIe 4.0 x8 link; on a PCIe 3.0 slot it will run at 3.0 x8 bandwidth, which still feeds the 4352 CUDA cores and 16 GB GDDR6 without a practical bottleneck.
