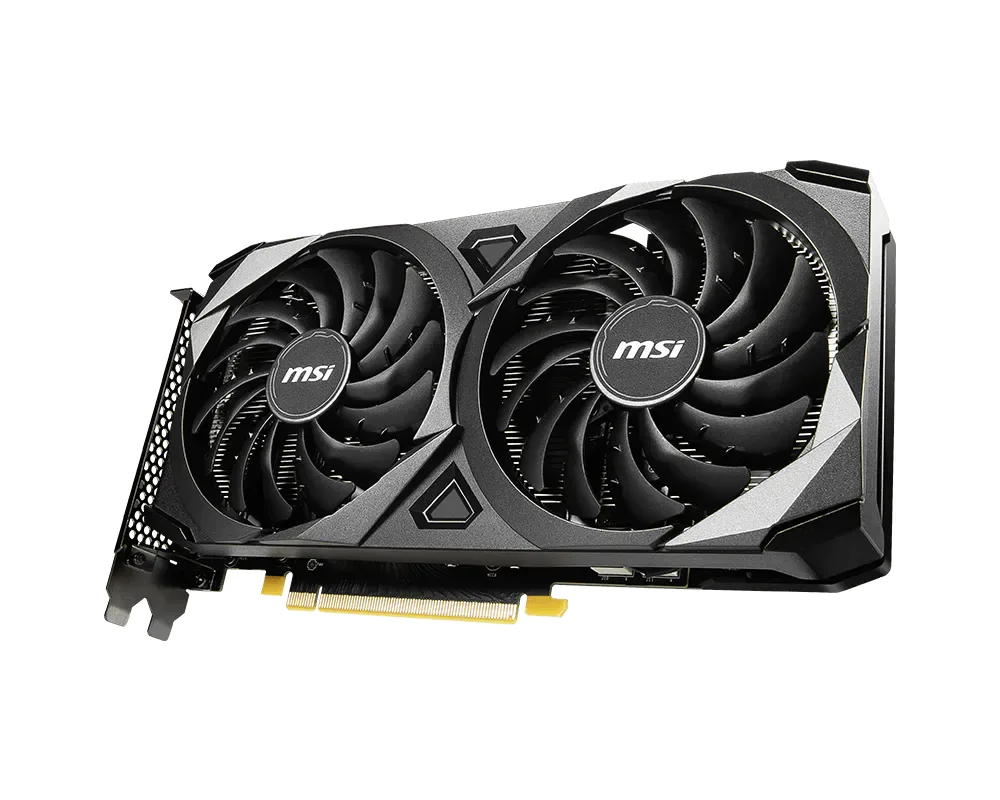

Black dual-fan graphics card with silver accents and backplate

MSI

MSI RTX 3060 Ventus 2X 12G OCV1 graphics card

SKU CH-V150-WHQC5 MPN RTX 3060 Ventus 2X 12G OCV1

A GeForce RTX 3060 with 12GB GDDR6 memory, a 1807 MHz boost clock and dual TORX Fan 3.0 cooling

  • InterfacePCI Express 4.0
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 30 Series
  • GPUGeForce RTX 3060
  • Boost Clock1807 MHz
  • CUDA Cores3584

Option VENTUS 2X

  • VENTUS 2X
  • VENTUS 3X

Struck-through versions exist but are not stocked here.

Edition RTX 3060 12G OCV1

Struck-through versions exist but are not stocked here.

  • 12GB GDDR6 memory on a 192-bit bus for high-resolution textures
  • Boost clock of 1807 MHz with 3584 CUDA cores for strong compute throughput
  • Dual-fan TORX Fan 3.0 cooler keeps temperatures in check
  • HDMI 2.1 plus three DisplayPort 1.4 outputs drive up to four displays
  • PCI Express 4.0 interface and 170W TDP with a single 8-pin power connector

12GB GDDR6 frame buffer

The MSI RTX 3060 Ventus 2X 12G OCV1 equips a GeForce RTX 3060 GPU with 3584 CUDA cores and a 12GB 192-bit GDDR6 memory subsystem running at 15 Gbps. A boost clock of 1807 MHz and PCI Express 4.0 interface target 1080p and 1440p gaming workloads as well as entry-level content creation. The 170 W board power rating calls for a 550 W supply and a single 8-pin connector.

Dual-fan thermal layout

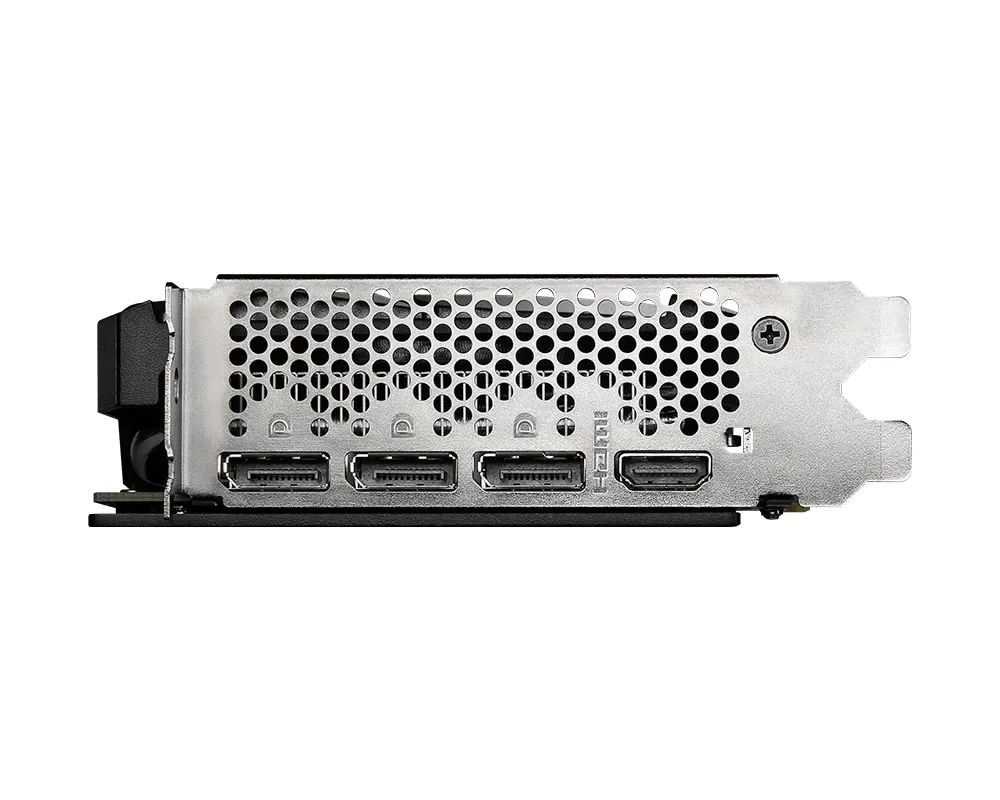

A black dual-slot shroud houses two TORX Fan 3.0 impellers that generate high static pressure across a compact heatsink. The rear I/O bracket provides one HDMI 2.1 port and three DisplayPort 1.4 outputs, enabling up to four simultaneous displays at a maximum digital resolution of 7680 x 4320. HDCP compliance and VR readiness are confirmed for protected media and headset use.

Afterburner utility bundle

MSI Afterburner delivers manual voltage, frequency and fan-curve control alongside the OC Scanner, which automatically determines the highest stable overclock for the specific silicon. An on-screen display overlays real-time metrics during gameplay or benchmarking. Multi-GPU management support is included for systems running more than one supported card.

Highlights

  • 12GB GDDR6 memory on a 192-bit bus for high-resolution textures
  • Boost clock of 1807 MHz with 3584 CUDA cores for strong compute throughput
  • Dual-fan TORX Fan 3.0 cooler keeps temperatures in check
  • HDMI 2.1 plus three DisplayPort 1.4 outputs drive up to four displays
  • PCI Express 4.0 interface and 170W TDP with a single 8-pin power connector

Specifications

BrandMSI
SeriesVentus
ModelRTX 3060 Ventus 2X 12G OC
InterfacePCI Express 4.0
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 30 Series
GPUGeForce RTX 3060
Boost Clock1807 MHz
CUDA Cores3584
Effective Memory Clock15 Gbps
Memory Size12GB
Memory Interface192-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1
DisplayPort3 x DisplayPort 1.4
ColorBlack
Max Resolution7680 x 4320
Virtual Reality ReadyYes
CoolerDouble Fans
Thermal Design Power170W
Recommended PSU Wattage550W
Power Connector1 x 8-pin
HDCP ReadyYes
FeaturesDual Fan Thermal Design:
TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
Afterburner Overclocking Utility:
Supports multi-GPU setups.
OC Scanner: An automated function finds the highest stable overclock settings.
On Screen Display: Provides real-time information of your system's performance.
Predator: In-game video recording.
Dragon Center:
MSI's exclusive Dragon Center software lets you monitor, tweak and optimize MSI products in real-time.
Max GPU Length235 mm
Card Dimensions (L x H)235 x 124 x 42 mm
Shipping weight1.00 kg
Package size310 × 224 × 71 mm
