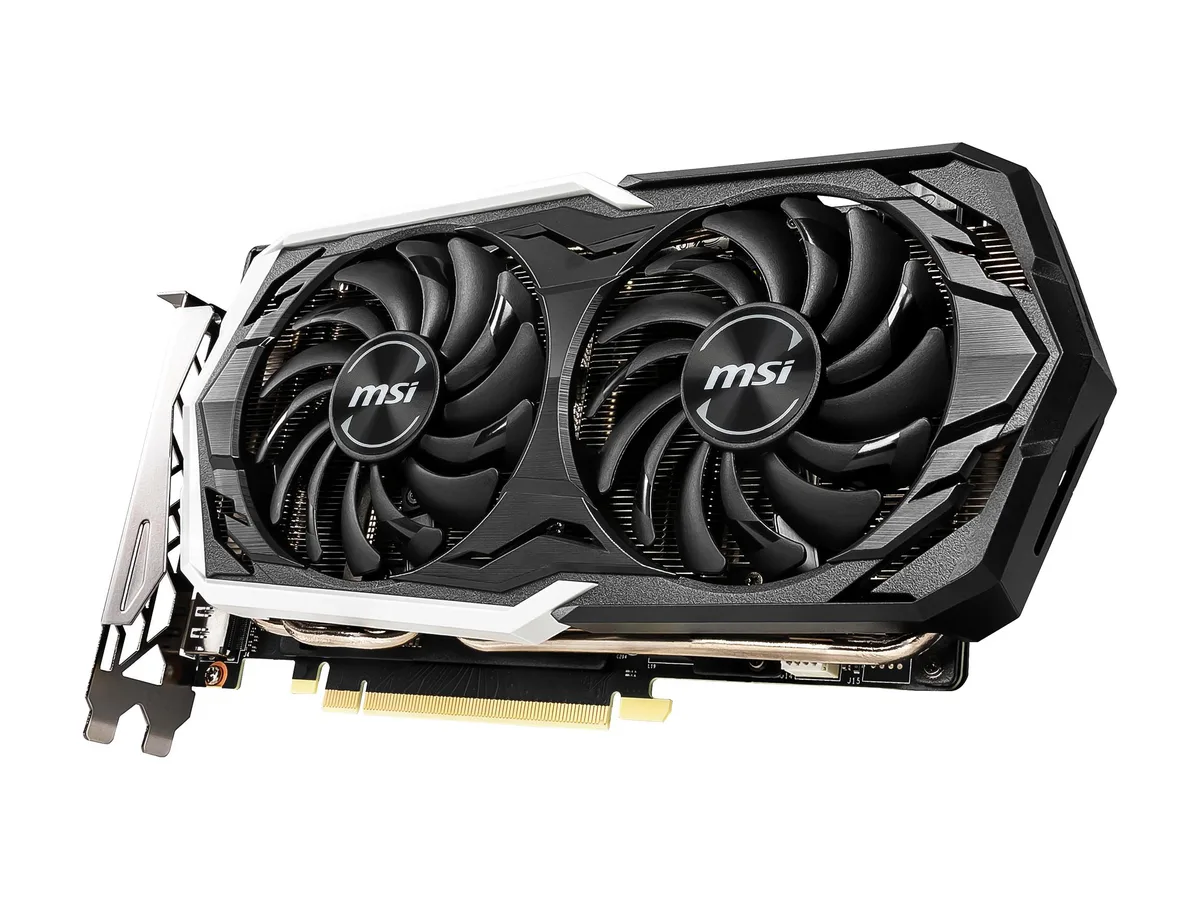

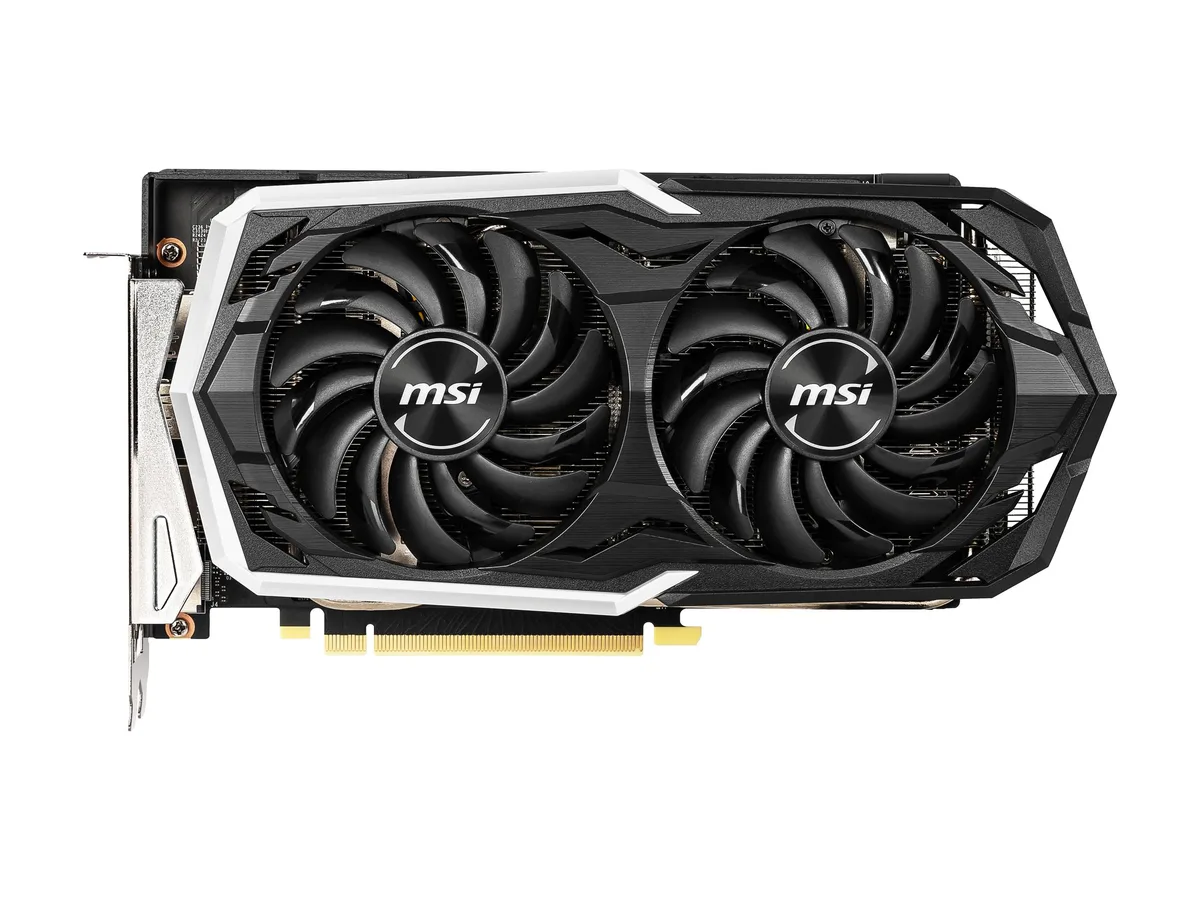

Black dual-fan graphics card with silver backplate, PCIe bracket showing one HDMI and three DisplayPorts

MSI

MSI RTX 2060 SUPER ARMOR OC graphics card

SKU CH-TGRE-Q6VAR

GeForce RTX 2060 SUPER graphics card with 2176 CUDA cores, 8 GB GDDR6 memory on a 256-bit bus, boost clock of 1680 MHz, and HDMI 2.0b plus three DisplayPort outputs for up to four displays

  • InterfacePCI Express 3.0 x16
  • Chipset ManufacturerNVIDIA
  • GPUGeForce RTX 2060 SUPER
  • Boost Clock1680 MHz
  • CUDA Cores2176
  • Effective Memory Clock14 Gpbs
  • 8 GB GDDR6 on a 256-bit bus for high-bandwidth gaming
  • Boost clock reaches 1680 MHz for extra frame-rate headroom
  • 2176 CUDA cores accelerate ray-tracing and compute workloads
  • One HDMI 2.0b plus three DisplayPort outputs drive up to four displays
  • 175 W TDP with a 550 W PSU recommendation keeps power needs practical

What this card is

The MSI RTX 2060 SUPER ARMOR OC is a PCI Express 3.0 x16 graphics card built around the NVIDIA GeForce RTX 2060 SUPER GPU. It targets gamers and creators who need 8GB of GDDR6 memory on a 256-Bit bus for 1440p workloads. The board draws 175W and the supplier recommends a 550W power supply. It fits in cases that accept a 9.84" length and 5.08" height.

The deciding specification

The single figure that determines fit is the 175W thermal design power paired with the 550W PSU recommendation. If your power supply cannot deliver that headroom on the 12V rail the card will not run stably. The 8GB 256-Bit GDDR6 frame buffer and 2176 CUDA cores define the performance ceiling for ray-traced titles at 1440p.

Outputs and software impact

One HDMI 2.0b port and three DisplayPort connectors drive up to four monitors at a maximum resolution of 7680 x 4320. That connectivity lets you span a VR headset and three desktop displays simultaneously. DirectX 12 and OpenGL 4.5 support are standard; no bundled utilities change the hardware capability.

Highlights

  • 8 GB GDDR6 on a 256-bit bus for high-bandwidth gaming
  • Boost clock reaches 1680 MHz for extra frame-rate headroom
  • 2176 CUDA cores accelerate ray-tracing and compute workloads
  • One HDMI 2.0b plus three DisplayPort outputs drive up to four displays
  • 175 W TDP with a 550 W PSU recommendation keeps power needs practical

Specifications

BrandMSI
ModelRTX 2060 SUPER ARMOR OC
InterfacePCI Express 3.0 x16
Chipset ManufacturerNVIDIA
GPUGeForce RTX 2060 SUPER
Boost Clock1680 MHz
CUDA Cores2176
Effective Memory Clock14 Gpbs
Memory Size8GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.5
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort
Max Resolution7680 x 4320
Virtual Reality ReadyYes
Thermal Design Power175W
System RequirementsPower consumption: 175W/Recommended PSU: 550W
Recommended PSU Wattage550W
Power Connector8-Pin
HDCP Ready2.2
FeaturesTORX FAN 2.0/Award-winning fan design combining two different fin designs for cool & quiet gaming.//MASTERY OF AERODYNAMICS/Using groundbreaking aerodynamic techniques, the heatsink is optimized for efficient heat dissipation.//ZERO FROZR/Eliminates fan noise by stopping the fans in low-load situations so you can focus on your game.//CUSTOM PCB/An optimized PCB design with enhanced power delivery provides a solid base for high performance gaming.//SOLID BLACK BACKPLATE/Increases toughness of the card to prevent bending while complementing the sleek MSI GAMING design.//RGB MYSTIC
Max GPU Length250 mm
Card Dimensions (L x H)9.84" x 5.08"

Questions about this item

What does the 1680 MHz boost clock mean once the card is installed?

The GPU can reach 1680 MHz under load when power and temperature headroom allow, giving higher frame rates in games and compute tasks than the base frequency.

What does the PCI Express 3.0 x16 interface cap in practice?

The PCIe 3.0 x16 link provides up to 16 GT/s per lane, which is sufficient for the 2176 CUDA cores and 8 GB GDDR6 without bottlenecking typical workloads.

What does the card physically need to fit in a case?

The board measures 9.84" long by 5.08" high and requires a dual-slot bracket plus a 550 W PSU with an 8-pin power connector for the 175 W TDP.
