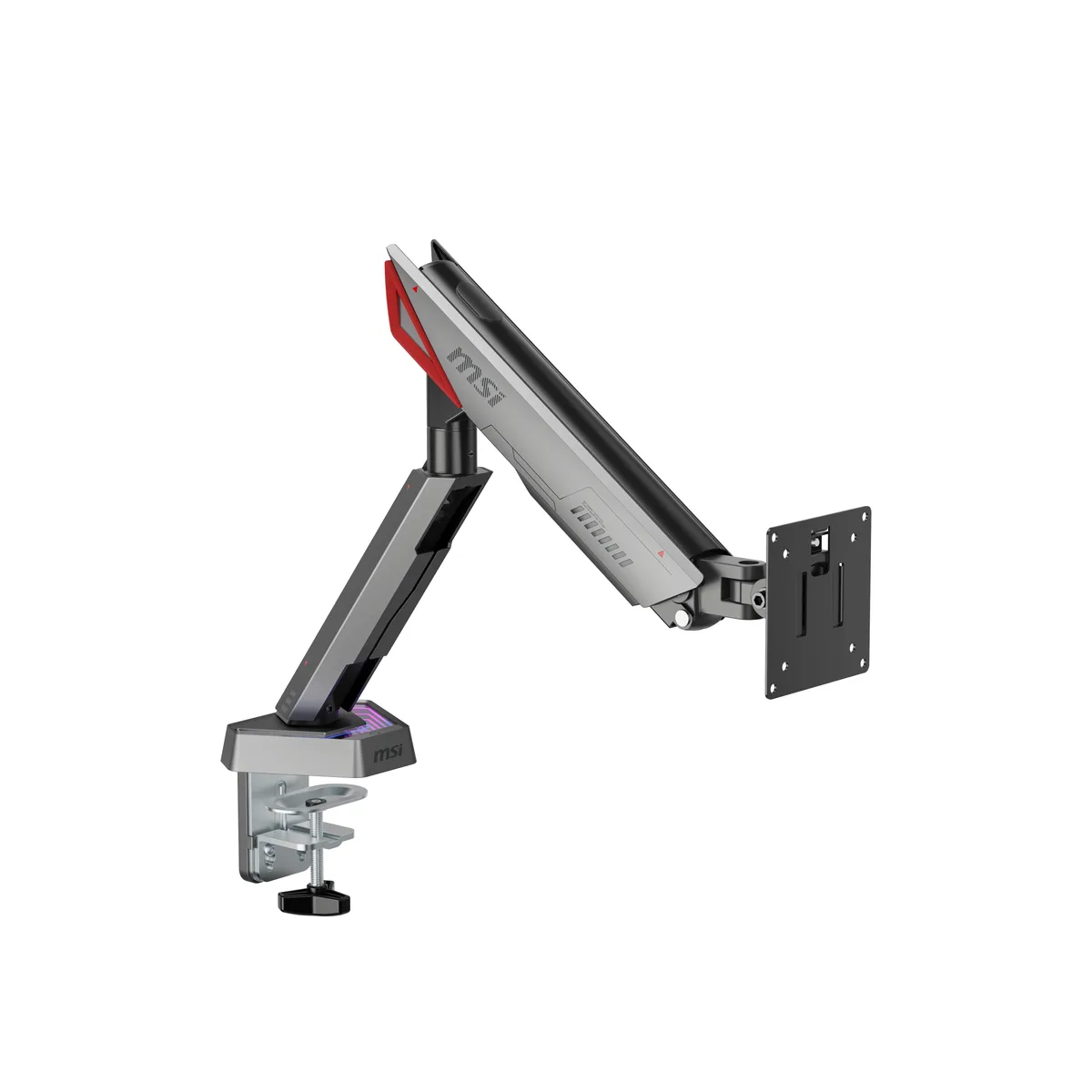

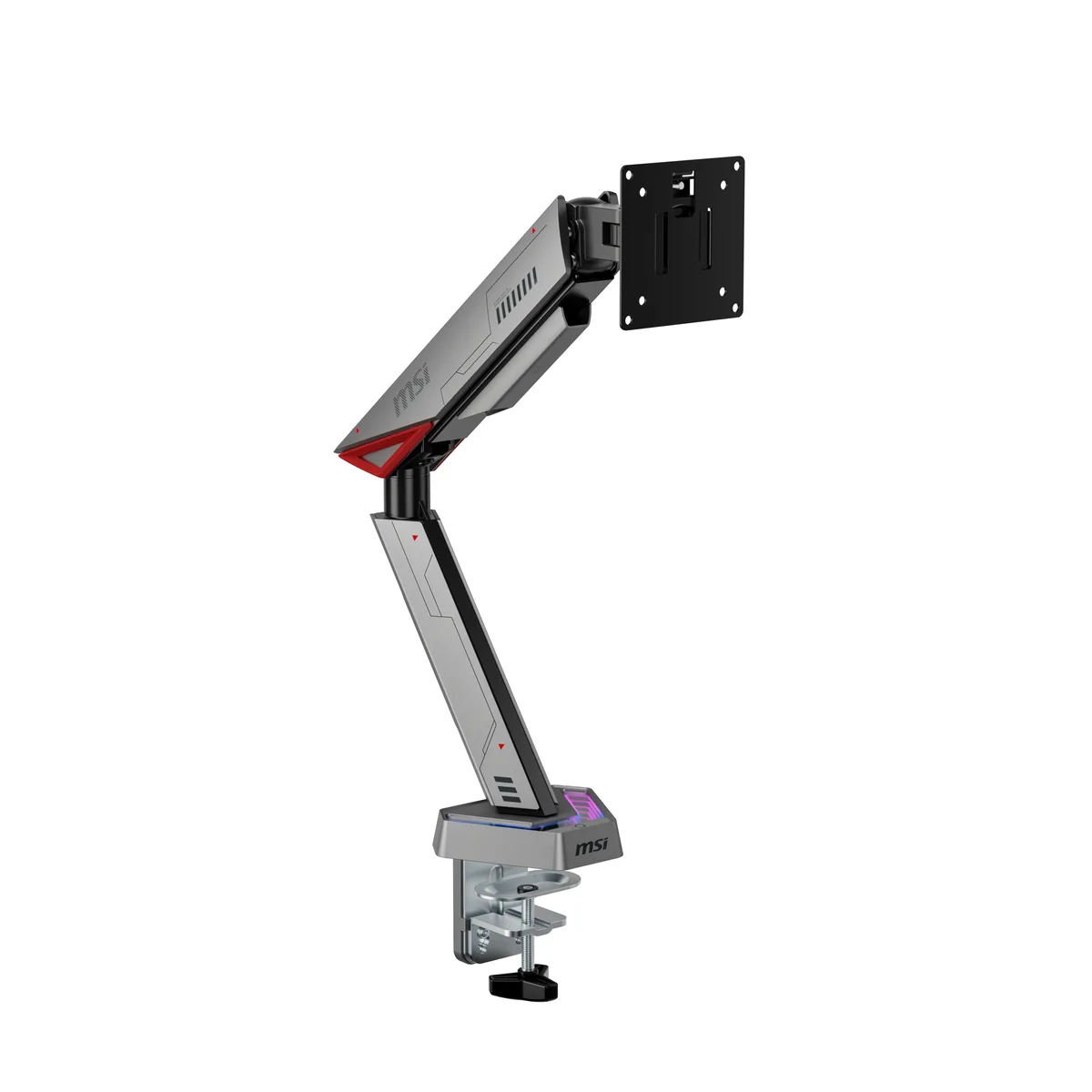

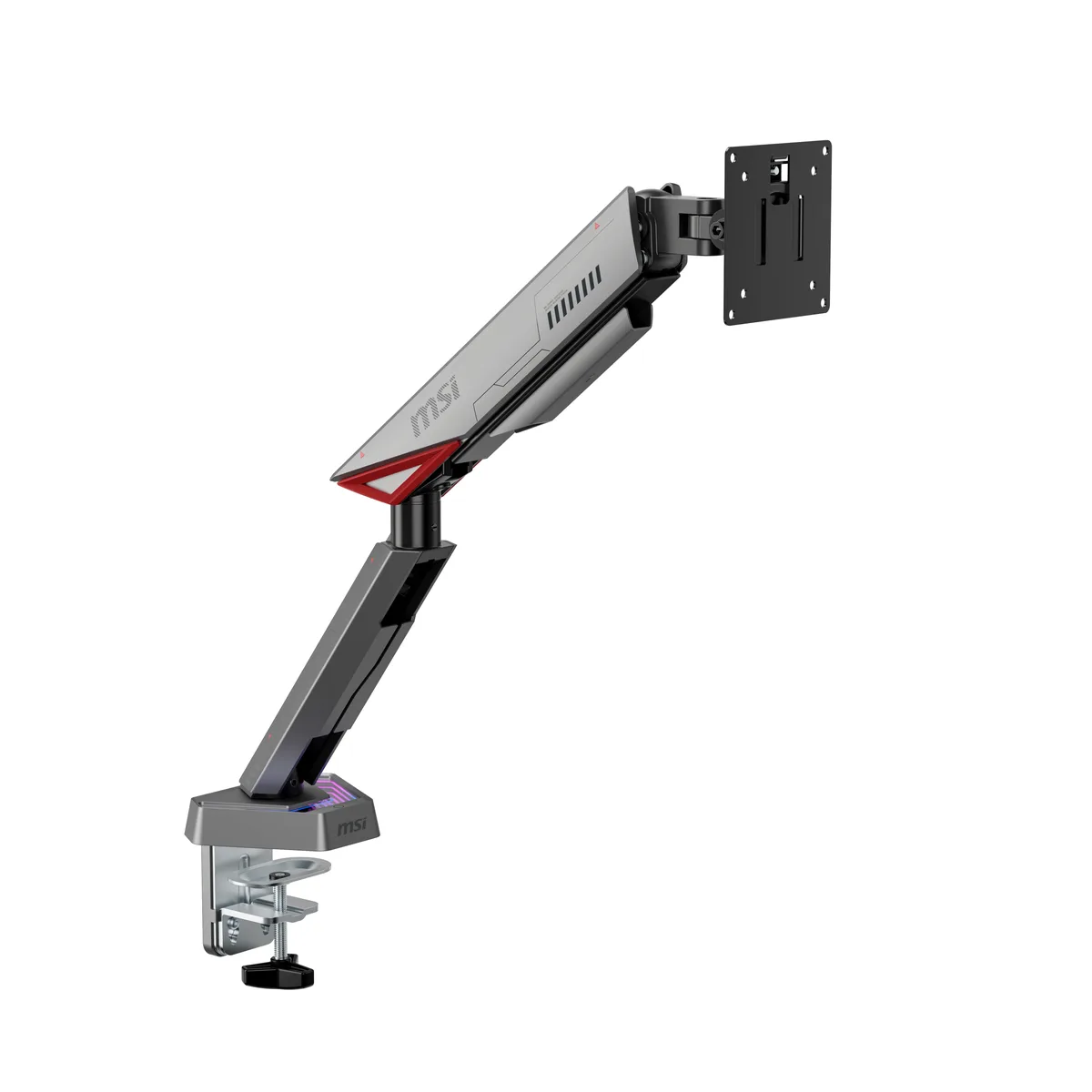

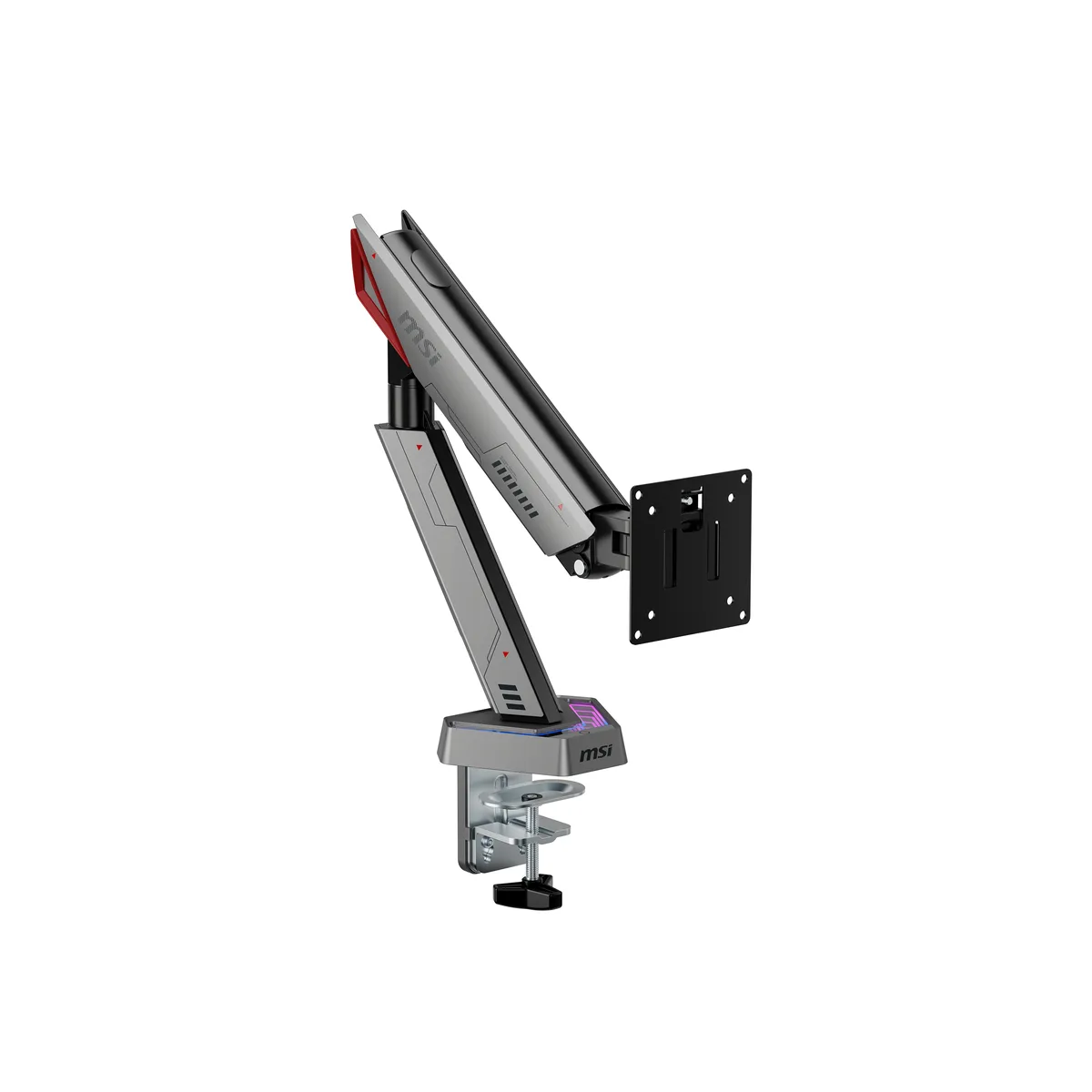

Iron gray single monitor arm with clamp and grommet base, VESA plate, spring arm and RGB strip

MSI

MSI MPG MT161R Single Monitor Arm 16 kg VESA 75 100 Clamp Grommet Iron Gray

SKU CH-GB4Y-G31YG MPN MPG MT161R

A single monitor arm holds 17 to 45 inch screens up to 16 kg with VESA 75/100 mounting, clamp or grommet bases, full tilt, swivel and rotation plus RGB lighting

  • TypeSingle Monitor Arm
  • ColorIron Gray
  • SpecificationsVESA Compatibility: 75 x 75mm / 100 x 100mm Max Weight Capac
  • Dimensions (H x W x D)17.32" x 7.95" x 4.41"
  • Weight4.2kg
  • Supports 17–45 inch screens with 16 kg weight capacity
  • VESA 75×75 mm and 100×100 mm mounting compatibility

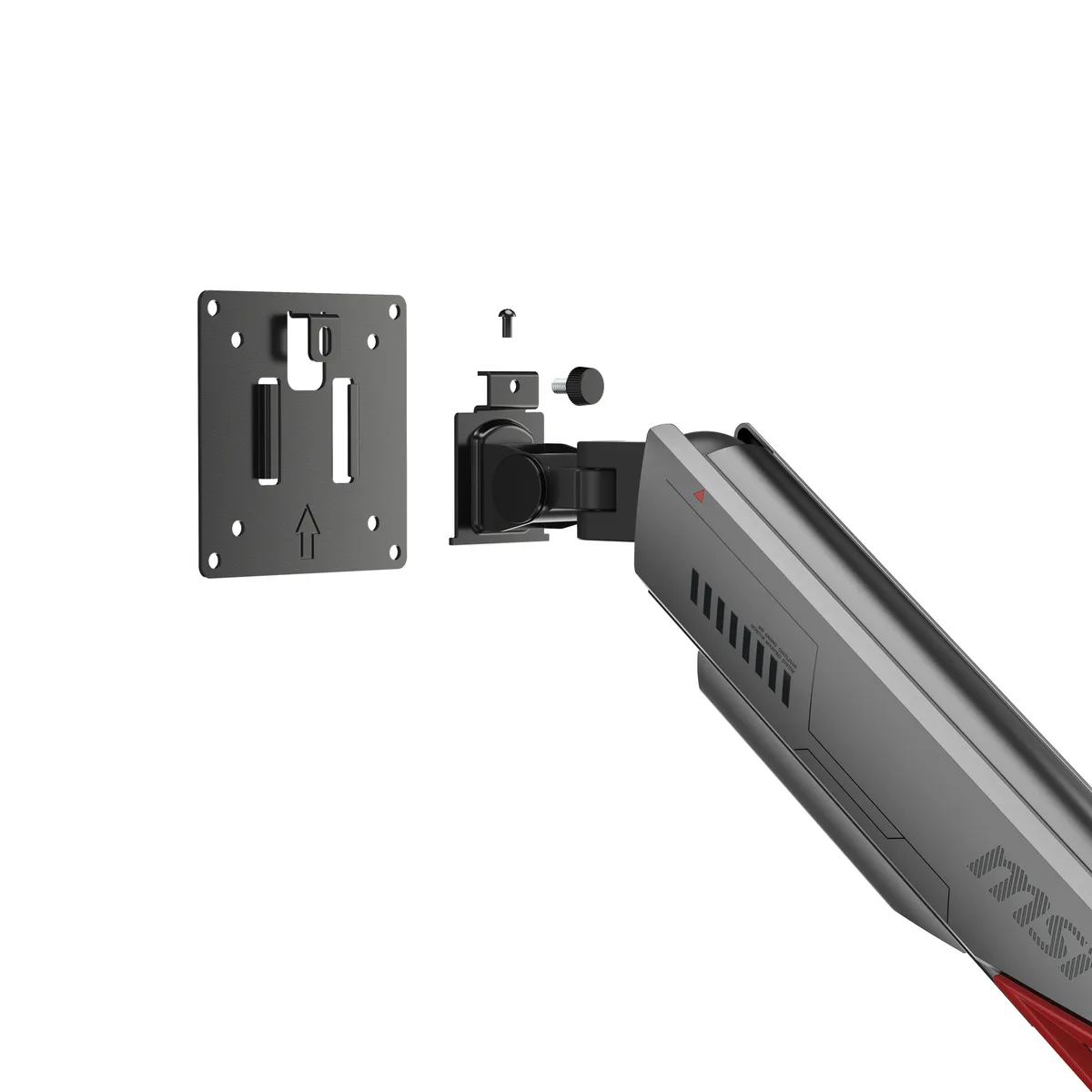

  • Quick-release VESA plate enables fast monitor installation
  • Tilt +50°/-20°, swivel ±90°, rotate ±180° for ergonomic positioning
  • Clamp fits desks 10–80 mm, grommet fits 10–40 mm thickness

What the product is

The MSI MPG MT161R is a single monitor arm finished in Iron Gray. It mounts one flat or curved display from 17 to 45 inches using VESA 75 x 75 mm or 100 x 100 mm patterns. The arm attaches to desks via a clamp or grommet base, freeing up desk space while providing full motion adjustment for gaming or productivity setups.

Weight capacity and screen type

The arm supports up to 16 kg for flat screens and 13 kg for curved screens. This capacity figure is the single specification that determines whether your specific monitor is compatible, regardless of its diagonal size or VESA pattern. Exceeding these limits will prevent safe installation and stable operation.

Thermals noise and power

The MPG MT161R is a passive mechanical mount with no fans, pumps or electronic cooling components. It produces zero operational noise and draws no electrical power for its articulation or spring-assisted movement. The integrated RGB lighting requires a separate USB connection for power but adds no thermal load to the system.

Highlights

  • Supports 17–45 inch screens with 16 kg weight capacity
  • VESA 75×75 mm and 100×100 mm mounting compatibility
  • Quick-release VESA plate enables fast monitor installation
  • Tilt +50°/-20°, swivel ±90°, rotate ±180° for ergonomic positioning
  • Clamp fits desks 10–80 mm, grommet fits 10–40 mm thickness

Specifications

BrandMSI
ModelMPG MT161R
Part Number306-3BA9540-LAX
TypeSingle Monitor Arm
ColorIron Gray
SpecificationsVESA Compatibility: 75 x 75mm / 100 x 100mm
Max Weight Capacity: 16kg / 35.2lbs.
Grommet Installation: Yes
Clamp Installation: Yes
Desk thickness: Maximum 10 ~ 80mm (Clamp) / Maximum 10 ~ 40mm (Grommet)
Adjustment (Tilt): -60° ~ 60°
Adjustment (Swivel): -90° ~ 90°
Adjustment (Pivot): -180° ~ 180°
Max Extension (Vertical): 432mm/17"
Max Extension (Horizontal): 1143mm / 38"
Dimensions (H x W x D)17.32" x 7.95" x 4.41"
Weight4.2kg
Shipping weight4.20 kg
Package size442 × 208 × 114 mm

Questions about this item

What does the 16 kg capacity mean for my actual monitor?

It supports flat screens up to 16 kg and curved screens up to 13 kg, covering most 17 to 45 inch displays.

How do the VESA 75 and 100 patterns limit which monitors I can mount?

The arm fits any monitor with 75 x 75 mm or 100 x 100 mm mounting holes, which is the standard for screens in the supported size range.

What desk thicknesses can the clamp and grommet bases actually handle?

The clamp works on desks 10 to 80 mm thick; the grommet mount works on desks 10 to 40 mm thick.
