Black fully modular ATX power supply with 135 mm fan and native 16 pin connector

MSI

MSI MAG A1000GL PCIE5 1000 W power supply

SKU CH-BHE4-SXYQQ MPN MAG A1000GL PCIE5

A fully modular 1000 W ATX 3.1 power supply with 80 PLUS Gold efficiency, a native 16-pin PCIe 5.1 connector and a 135 mm fluid dynamic bearing fan in a compact 150 mm frame

  • ColorBlack
  • TypeIntel ATX 12V
  • Maximum Power1000 W
  • Fans1 x 135 mm Fluid Dynamic Bearing
  • PFCActive
  • Max PSU Length150 mm

Type ATX 3.1 (1000W)

  • 1000 W output powers demanding builds
  • 80 PLUS Gold certification delivers up to 90 % efficiency
  • ATX 3.1 and PCIe 5.1 ready for modern GPUs
  • Native 16-pin 12V-2x6 connector supplies up to 600 W
  • Fully modular design with 150 mm compact length reduces clutter

1000 W ATX 3.1 power supply

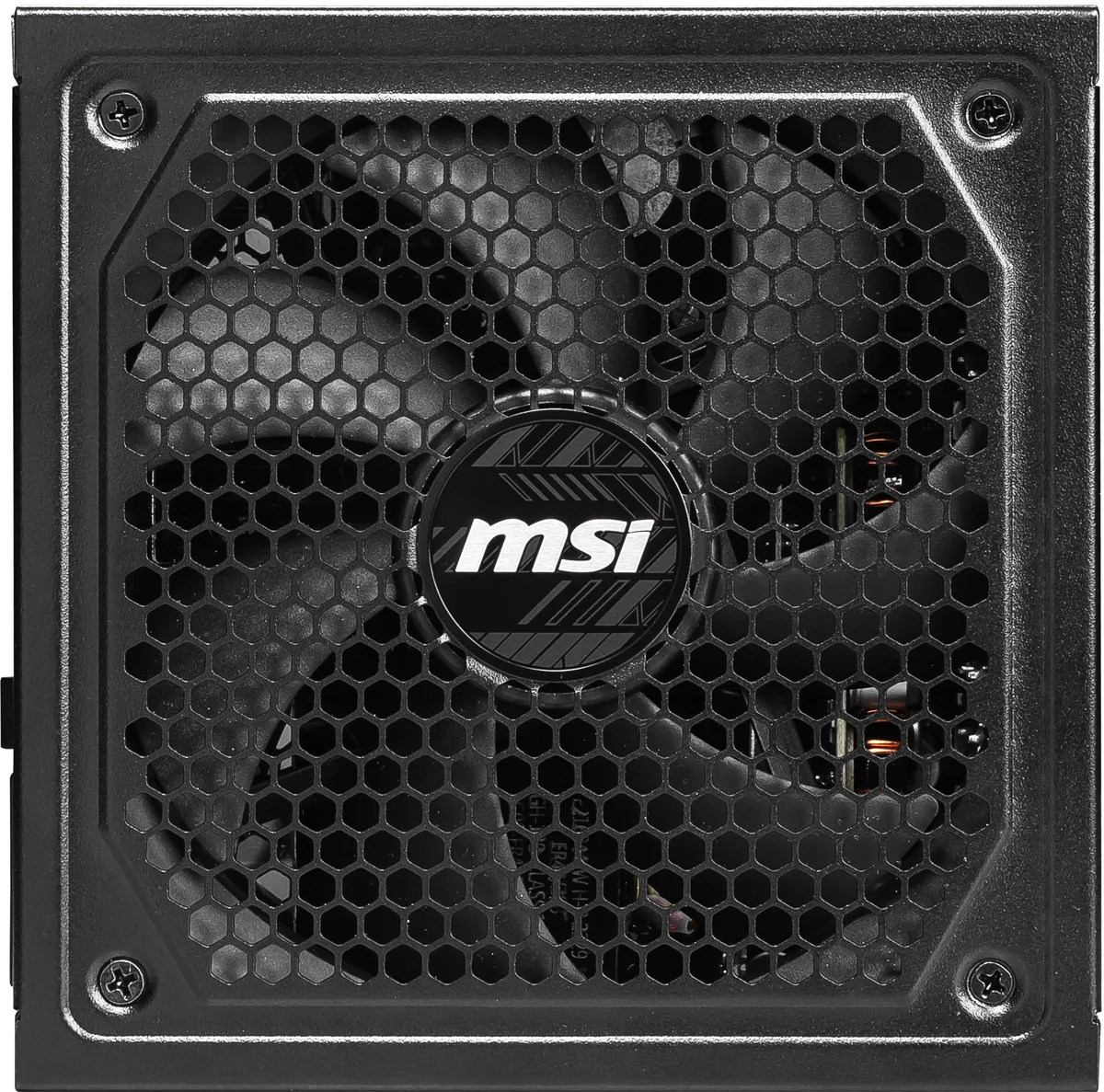

This fully modular unit delivers up to 1000 W of continuous power and meets the Intel ATX 3.1 and PCIe 5.1 specifications. An 80 PLUS Gold rating guarantees up to 90 % efficiency at typical loads. A 135 mm fluid dynamic bearing fan provides cooling inside a compact 150 mm deep chassis.

600 W native 12V-2x6 GPU connector

The single 16-pin PCIe 5.1 cable supplies up to 600 W directly to a modern graphics card without adapters. Four additional 6+2-pin PCIe connectors support further expansion cards or auxiliary power. Twelve SATA and four Molex connectors cover storage and peripheral needs.

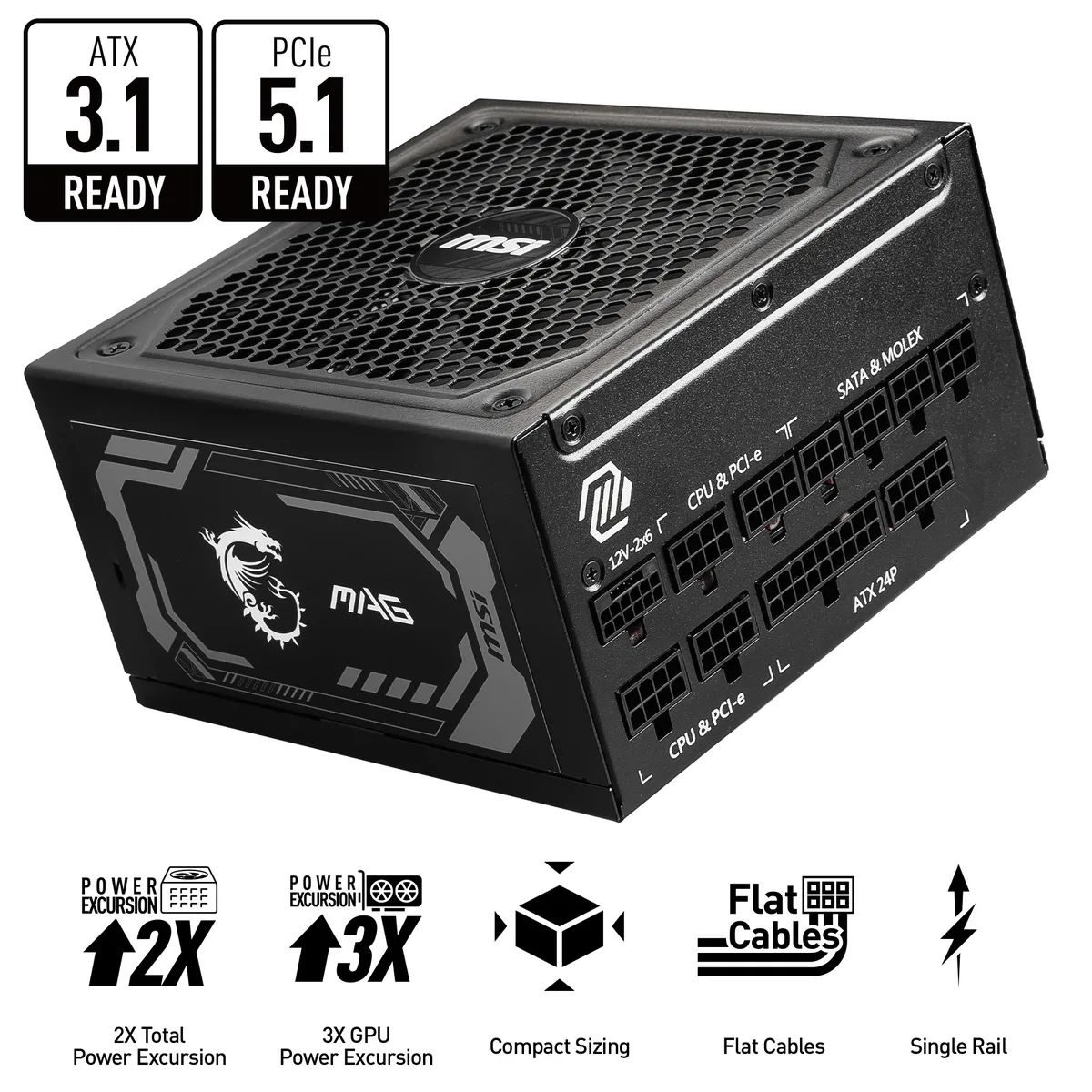

ATX 3.1 excursion limits

The ATX 3.1 design allows the PSU to sustain 2x total power excursions and 3x GPU power excursions for short periods. Full modular cabling reduces clutter and improves airflow in space-constrained builds. Protection circuits include OCP, OVP, OPP, OTP, SCP and UVP.

Highlights

  • 1000 W output powers demanding builds
  • 80 PLUS Gold certification delivers up to 90 % efficiency
  • ATX 3.1 and PCIe 5.1 ready for modern GPUs
  • Native 16-pin 12V-2x6 connector supplies up to 600 W
  • Fully modular design with 150 mm compact length reduces clutter

Specifications

BrandMSI
ModelMAG A1000GL PCIE5
ColorBlack
TypeIntel ATX 12V
Maximum Power1000 W
Fans1 x 135 mm Fluid Dynamic Bearing
PFCActive
Max PSU Length150 mm
ModularFull Modular
Energy-Efficient80 PLUS GOLD Certified
ProtectionOCP / OVP / OPP / OTP / SCP / UVP
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current15A (Max.)
Output+5V@22A, +3.3V@22A, [email protected] , [email protected] , +5VSB@3A

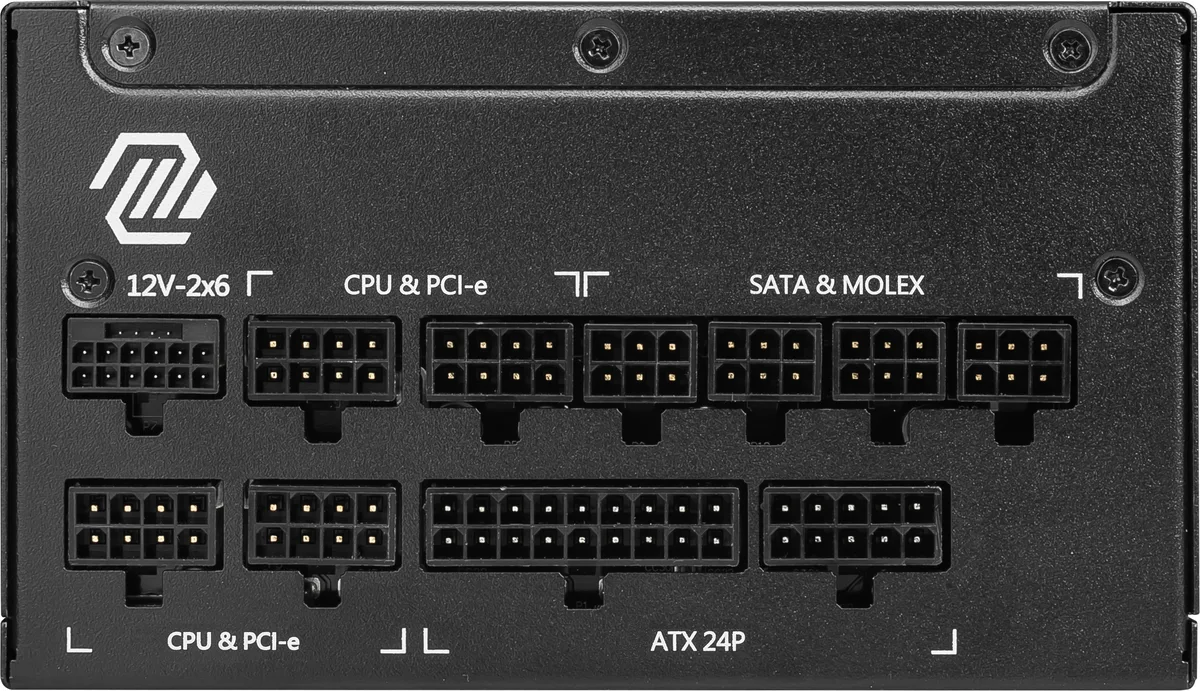

Connectors1 x ATX (24 PIN)
2 x EPS (4+4 PIN)
1x PCI-E 5.1 (16 PIN)
4 x PCI-E (6+2 PIN)
12 x SATA (15 PIN)
4 x MOLEX (4 PIN)
1 x Molex to FDD Adapter
Dimensions11.53 * 9.25 * 5.08"
Weight7.54 lbs
Shipping weight3.43 kg
Package size298 × 241 × 140 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will this 150 mm long unit fit in a compact ATX case?

The power supply measures 150 mm in length, so verify your case specification lists at least that much clearance for an ATX PSU.

Can the native 16-pin connector deliver 600 W to a PCIe 5.1 graphics card?

Yes, the included 12V-2x6 cable is rated for up to 600 W on a single PCIe 5.1 GPU.

What cable count comes in the box for SATA drives?

Twelve SATA power connectors are provided across the modular cables.
