MSI
MSI HERALD-BE WIFI 7 MAX Wi-Fi adapter
Adds tri-band Wi-Fi 7 and Bluetooth 5.4 via PCIe with 320 MHz channels and 5.8 Gbps peak speed
- TypePCIE Wi-Fi Adapter
- ColorBlack
- StandardsIEEE 802.11be
- Wireless Data RatesUp to 5.8Gbps
- WiFi GenerationWi-Fi 7
- InterfacePCI Express
- Wi-Fi 7 speeds up to 5.8 Gbps with NCM865 module
- Tri-band 2.4, 5 and 6 GHz with 320 MHz channels
- Bluetooth 5.4 for modern peripherals
- PCI Express interface with external antenna for better range
- Plug and play on Windows 11 or 10 (Wi-Fi 7 needs Windows 11)
Wi-Fi 7 tri-band adapter

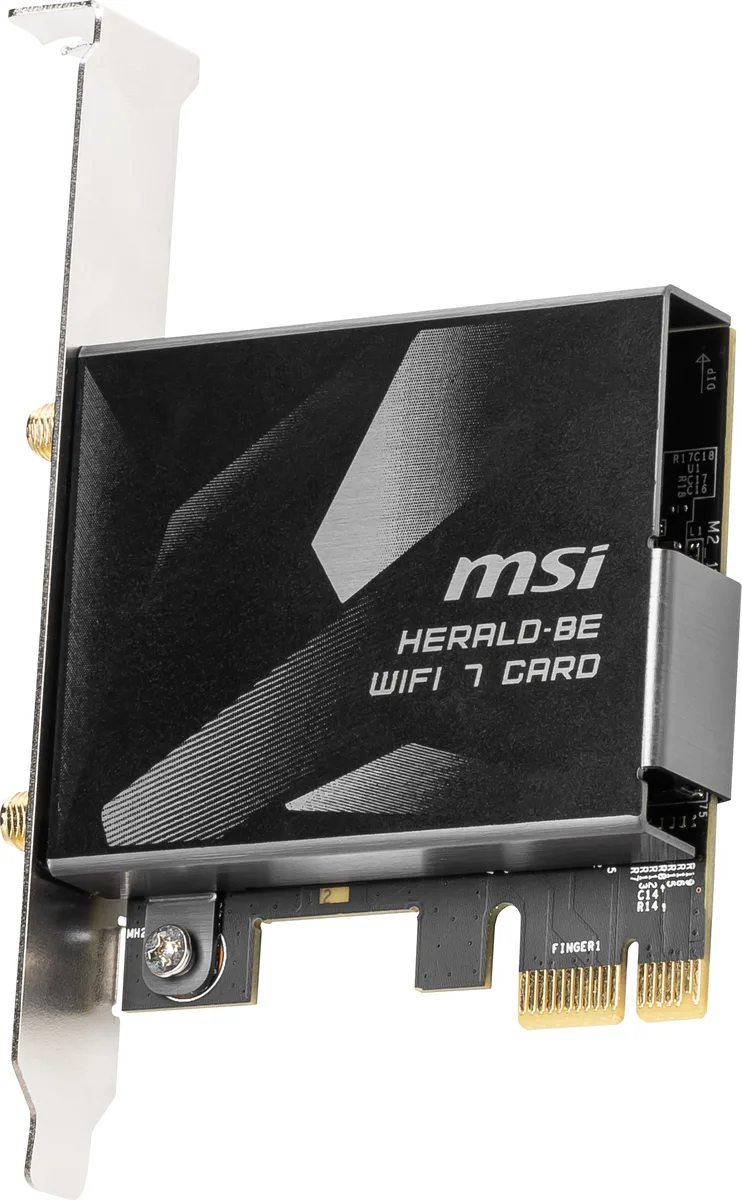

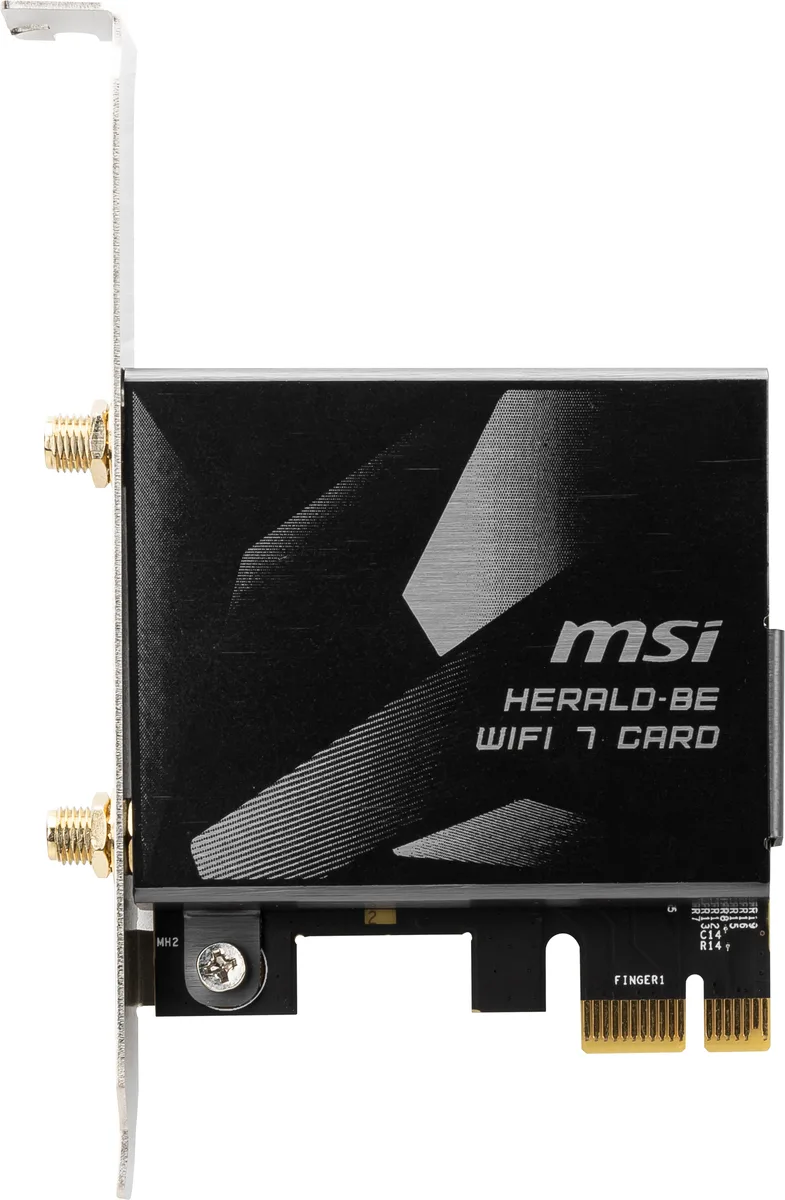

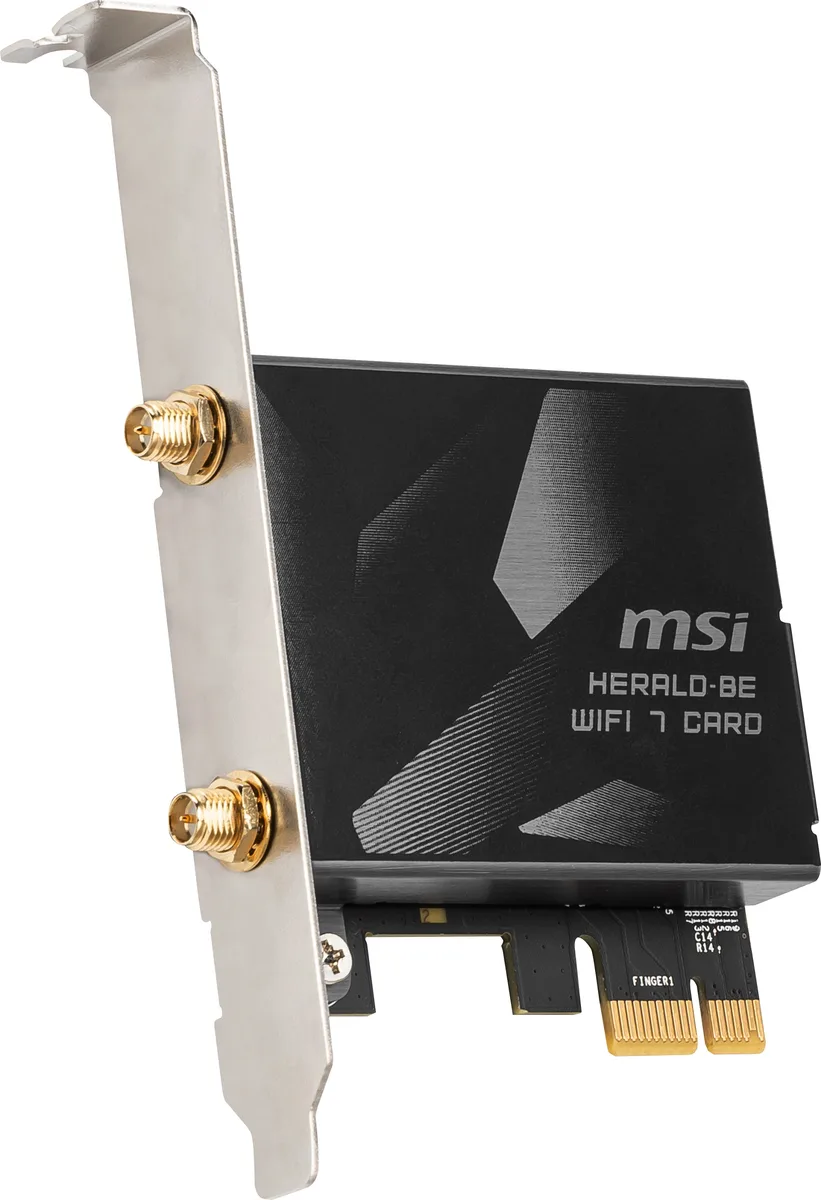

The MSI HERALD-BE WIFI 7 MAX is a PCIe wireless adapter built for desktop PCs that need 2.4 GHz, 5 GHz and 6 GHz connectivity. It uses the NCM865 module to deliver up to 5.8 Gbps throughput and adds Bluetooth 5.4 support. Windows 11 is required for Wi-Fi 7 operation, while Windows 10 handles earlier standards.
Upgrade from Wi-Fi 6
Moving from Wi-Fi 6 brings five times the network capacity through 320 MHz channel widths on the 6 GHz band and a shift from 1024-QAM to 4096-QAM modulation. Multi-Link Operation lets the adapter use multiple bands simultaneously, cutting latency for gaming or streaming. Systems staying on Windows 10 or lacking a 6 GHz router will not see the full jump.
Build integration

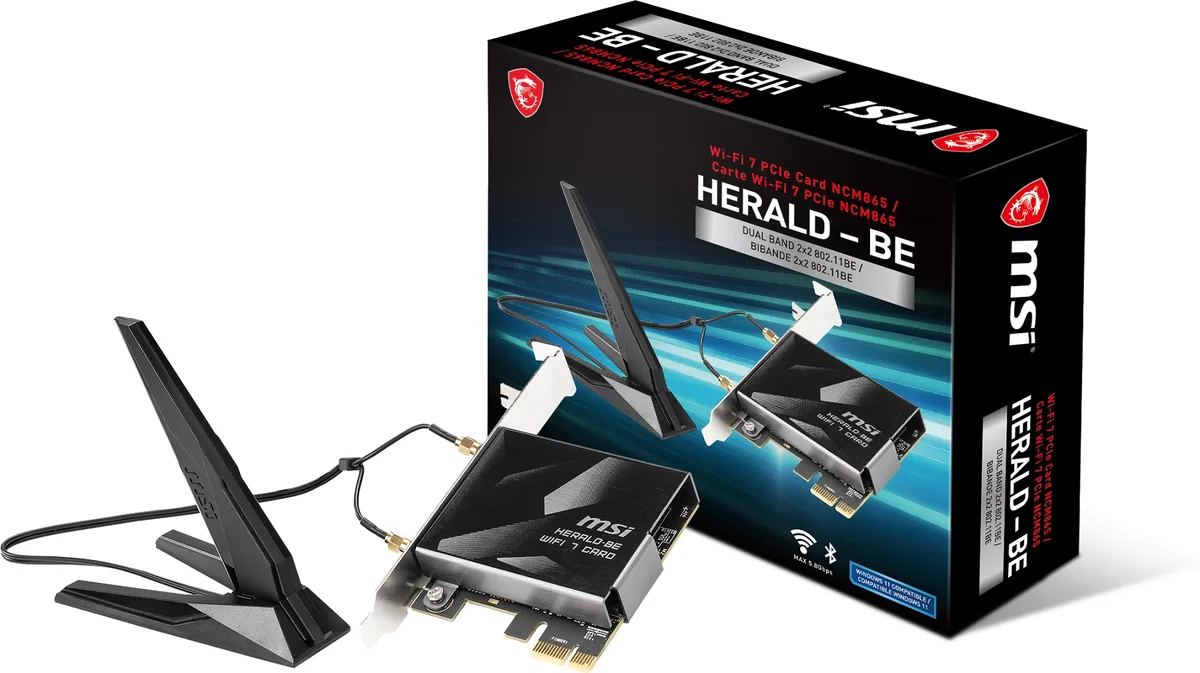

The card occupies a standard PCI Express slot and ships with an external antenna, a USB 2.0 pin-header cable for Bluetooth, and an installation guide. Its compact 2.6 by 0.7 by 4.72 inch form factor fits most chassis without blocking adjacent slots. Builders needing internal antennas or a different bracket style should look elsewhere.
Highlights
- Wi-Fi 7 speeds up to 5.8 Gbps with NCM865 module
- Tri-band 2.4, 5 and 6 GHz with 320 MHz channels
- Bluetooth 5.4 for modern peripherals
- PCI Express interface with external antenna for better range
- Plug and play on Windows 11 or 10 (Wi-Fi 7 needs Windows 11)
Specifications
| Brand | MSI |
|---|---|
| Model | HERALD-BE WIFI 7 MAX |
| Part Number | 916-B905C-014 |
| Type | PCIE Wi-Fi Adapter |
| Color | Black |
| Standards | IEEE 802.11be |
| Wireless Data Rates | Up to 5.8Gbps |
| WiFi Generation | Wi-Fi 7 |
| Interface | PCI Express |
| Frequency Band | 2.4 GHz / 5 GHz / 6 GHz (320Mhz Bandwidth) |
| Antenna | External Antenna |
| Bluetooth | Bluetooth 5.4 |
| System Requirements | Windows 11/10 (Plug & Play) (WiFi 7 requires Win11) |
| Features | Multi-Link Operation Technology |
| Dimensions | 2.6" x 0.7" x 4.72" |
| Weight | 0.5 lb. |
| Package Contents | 1 x Antenna 1 x Installation Guide 1 x USB Cable (USB 2.0 pin header) |
| Shipping weight | 1.50 kg |
| Package size | 175 × 119 × 84 mm |
Questions about this item
What PCI Express slot and chassis space does the 2.6" x 4.72" card need?
It fits a standard PCIe x1 or larger slot and occupies a single low-profile bracket; the external antenna base adds roughly 2.6 inches of clearance behind the case.
Which motherboard header does the included USB 2.0 pin-header cable connect to for Bluetooth 5.4?
Plug the cable into a spare 9-pin USB 2.0 front-panel header; the step often missed is enabling the header in BIOS before Windows loads the Bluetooth stack.
When should the external antenna or USB header cable be replaced?
Replace the antenna if the RP-SMA connector loosens or the hinge cracks, and swap the USB cable if the pin-header pins bend or the sheath frays.
