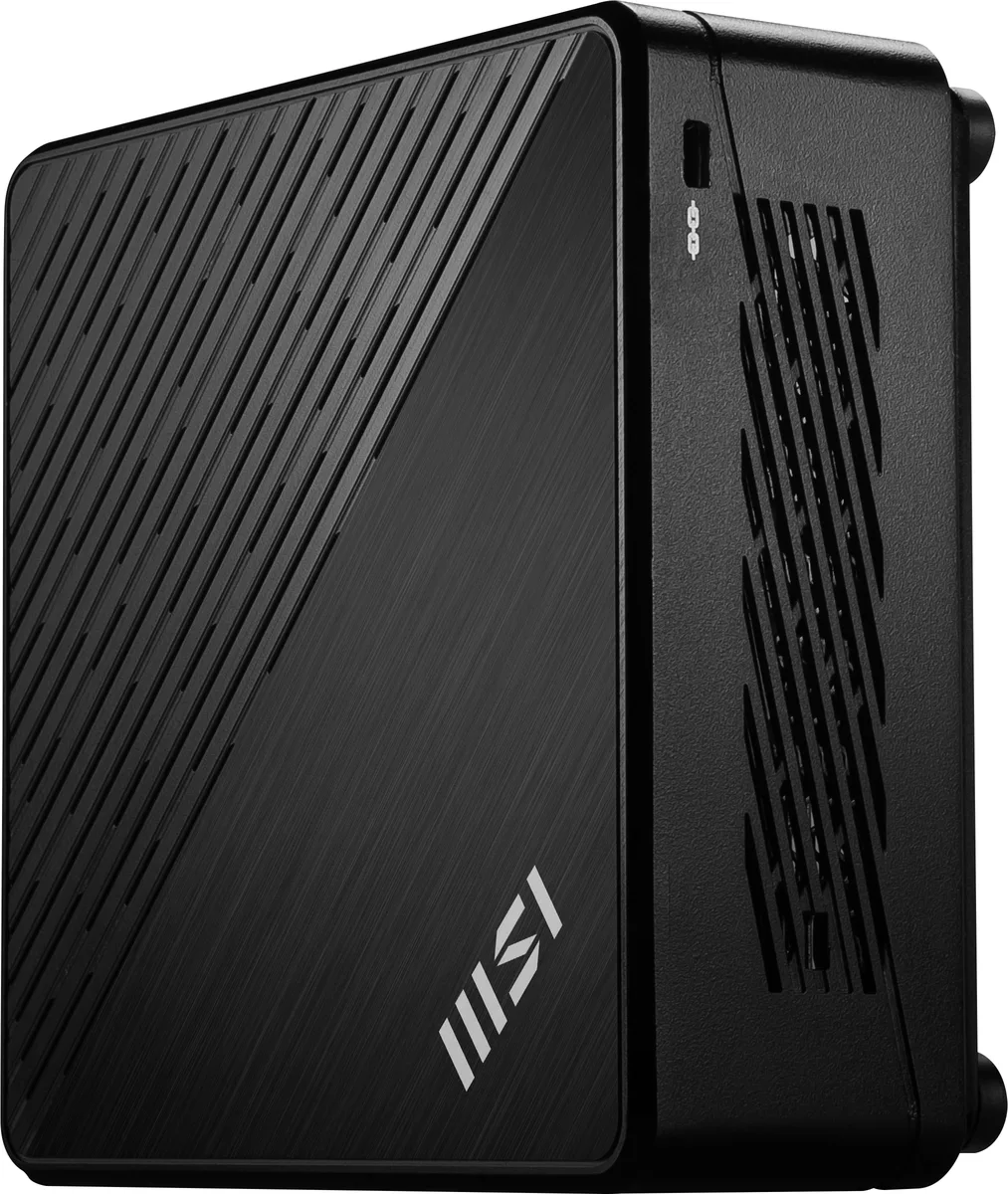

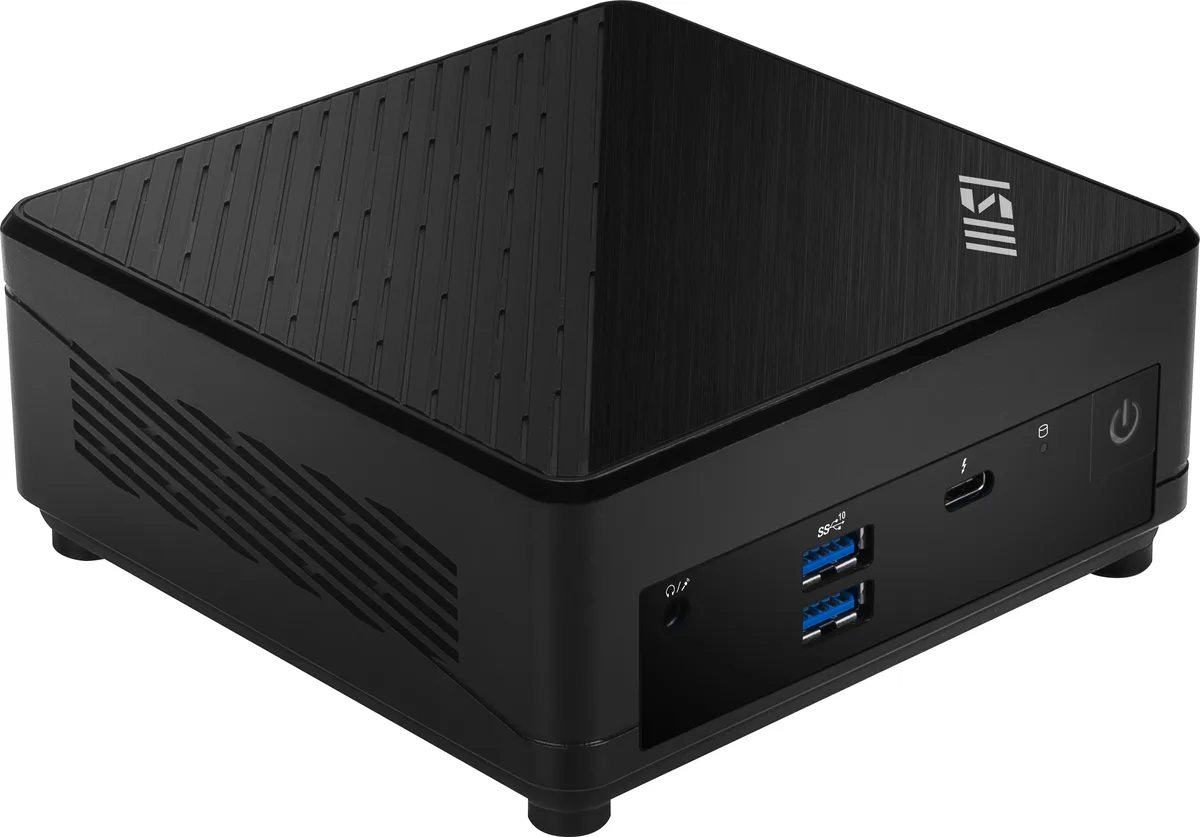

Small black square mini PC barebone, matte finish, front Thunderbolt 4 Type-C and USB-A ports, combo audio jack

MSI

MSI Cubi 5 1MA-494BUS barebone mini PC Intel Core 5 120U DDR4 64 GB

SKU CH-ECYF-VGM9X MPN Cubi 5 1MA-494BUS

Barebone mini PC with an Intel Core 5 120U processor, dual DDR4 SO-DIMM slots supporting 64 GB, Thunderbolt 4, dual LAN and Wi-Fi 6E

  • ColorBlack
  • CPU TypeIntel Core 5 120U
  • CPU Cores10-Core (2P+8E)
  • Memory installedNo Memory
  • Memory slot2 x 260Pin SO-DIMM
  • Memory Type SupportedDDR4 3200

CPU Intel Core 5 120U

  • 10-core Intel Core 5 120U handles demanding workloads
  • Dual-channel DDR4 3200 support up to 64 GB for smooth multitasking
  • Thunderbolt 4 at 40 Gbps connects displays and storage with one cable
  • Dual 2.5 Gbps and 1 Gbps LAN ports separate traffic for reliable networking
  • Wi-Fi 6E and Bluetooth 5.3 deliver fast wireless connectivity

Barebone mini PC with Core 5 120U

The MSI Cubi 5 1MA-494BUS is a compact barebone mini PC built around an Intel Core 5 120U processor with ten cores. It ships without memory or storage, letting integrators choose up to 64 GB of DDR4 3200 across two SO-DIMM slots and add a 2.5-inch drive plus an M.2 device.

Upgrade from older small-form PCs

Replacing a legacy desktop or first-generation mini PC with this unit adds Thunderbolt 4 at 40 Gb/s, dual LAN at 2.5 Gbps and 1 Gbps, and Wi-Fi 6E with Bluetooth 5.3. The jump is worthwhile when a workflow needs faster wired throughput, modern wireless bands, or a single-cable dock for multiple displays.

Fits into space-constrained builds

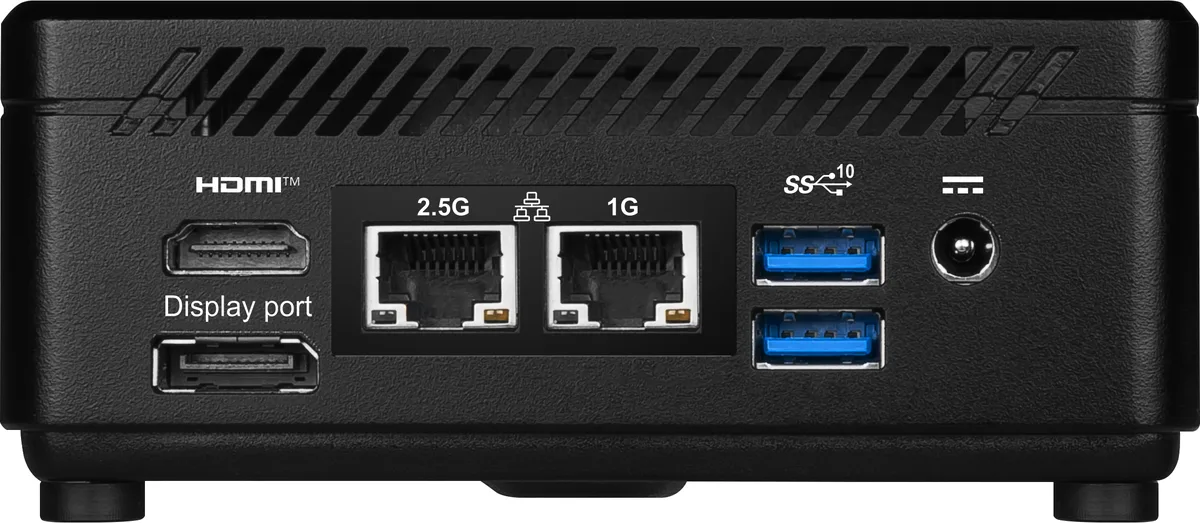

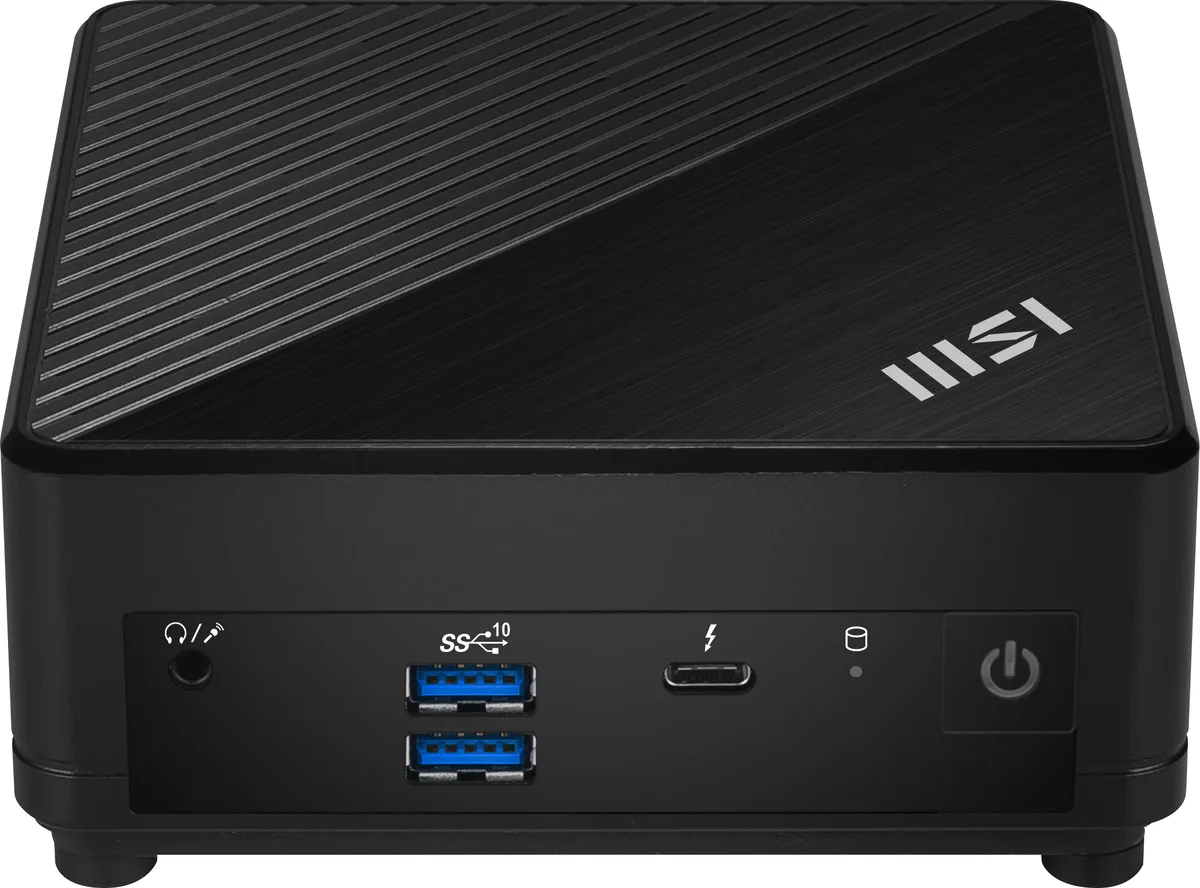

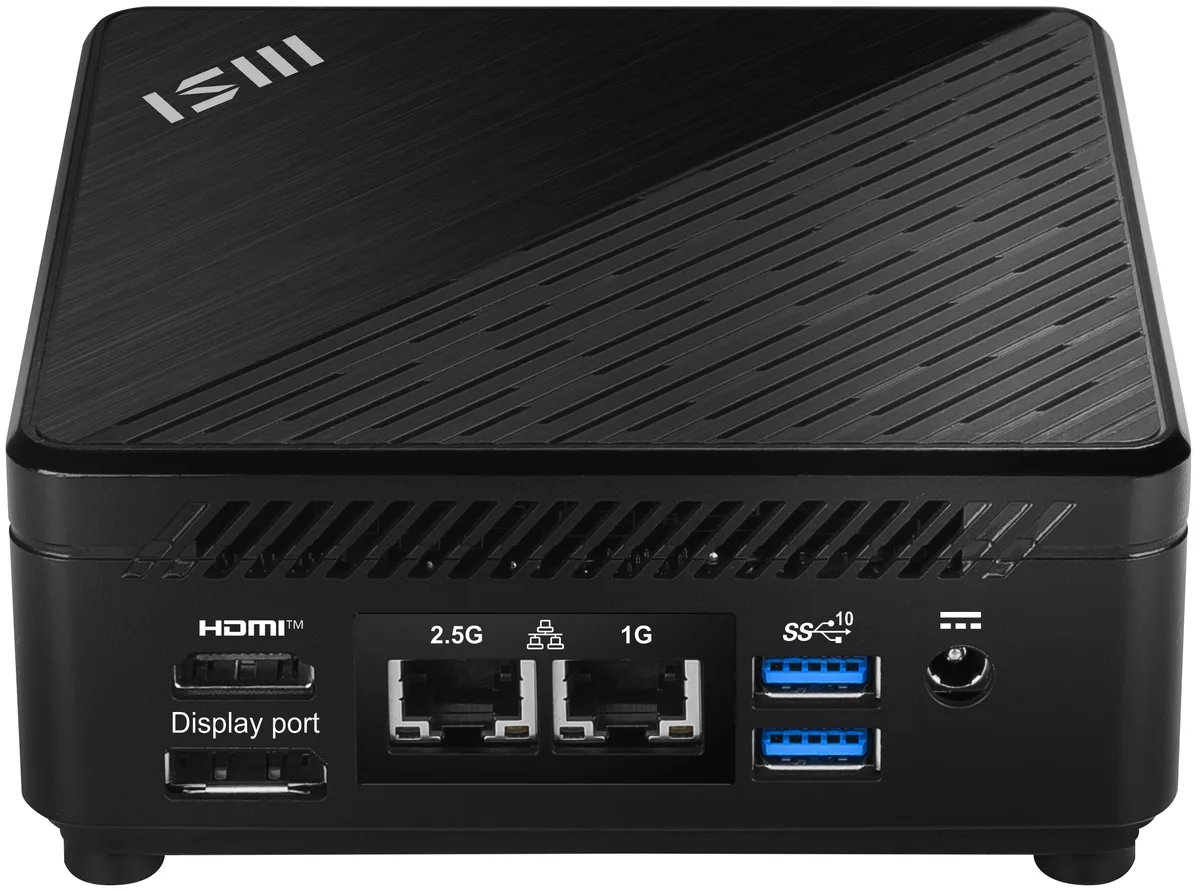

The chassis accepts two DDR4 SO-DIMMs, one M.2 module, and one 2.5-inch bay, while the front Thunderbolt 4 port and two USB 3.2 Gen 2 Type-A ports handle peripherals and video. Triple-display support frees desk space by reducing the need for a separate docking station.

Highlights

  • 10-core Intel Core 5 120U handles demanding workloads
  • Dual-channel DDR4 3200 support up to 64 GB for smooth multitasking
  • Thunderbolt 4 at 40 Gbps connects displays and storage with one cable
  • Dual 2.5 Gbps and 1 Gbps LAN ports separate traffic for reliable networking
  • Wi-Fi 6E and Bluetooth 5.3 deliver fast wireless connectivity

Specifications

BrandMSI
ModelCubi 5 1MA-494BUS
ColorBlack
CPU TypeIntel Core 5 120U
CPU Cores10-Core (2P+8E)
Memory installedNo Memory
Memory slot2 x 260Pin SO-DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported64GB
Storage InstalledNo Hard Drive
M.2 Slot1 x M.2
Integrated GraphicsIntel Graphics
LAN1 x Realtek RTL8111H,
1 x Realtek RTL8125BG-CG
Max LAN Speed2.5Gbps + 1Gbps
Wireless LAN802.11ax
WiFi GenerationWi-Fi 6E
BluetoothBluetooth 5.3
2.5" Internal Bays1
Front USB1 x ThunderBolt4 Type-C (front)
2 x USB 3.2 Gen2 Type-A (front)
Other Front Ports1 x Mic-in / Headphone-out combo
HDMI1 x HDMI-out (2.0b)
DisplayPort1 x DP-out (1.4)
Rear USB2 x USB 3.2 Gen2 Type-A (rear)
Power Supply65W Adapter
Dimensions4.88" x 4.88" x 2.11"
Weight1.3 lbs.
Shipping weight1.36 kg
Package size244 × 211 × 97 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What size SO-DIMM slots does the Cubi 5 1MA-494BUS have for memory?

It has two 260-pin SO-DIMM slots that accept DDR4 3200 modules up to 64 GB total.

How do I install memory and storage in this barebone, and what step is often missed?

Remove the bottom cover, insert DDR4 SO-DIMMs into both slots for dual-channel operation, install a 2.5-inch drive in the internal bay and an M.2 drive in the single slot, then secure each with its screw before reassembling.

Which replaceable parts will need attention after extended use?

The SO-DIMM memory modules, the 2.5-inch drive, the M.2 drive and the internal Wi-Fi 6E / Bluetooth 5.3 module are all user-replaceable components.
