Black direct-drive base with 280mm formula wheel and SR-P Lite pedals

Moza

Moza RS20 R5 5.5Nm direct-drive driving simulator

SKU CH-QKCB-5EQ2J MPN RS20

Direct-drive wheel base with 5.5 Nm peak torque, 2700° rotation and 1000 Hz USB rate, bundled with ES formula wheel and SR-P Lite pedals

  • TypeBases
  • Simulator TypeRacing
  • PlatformPC
  • SpecificationDD R5 Platform: PC FFB Drive System: Direct Drive Max Steeri
  • 5 Nm peak torque for strong, direct-drive force feedback
  • 2700 ° maximum steering angle allows multiple full rotations

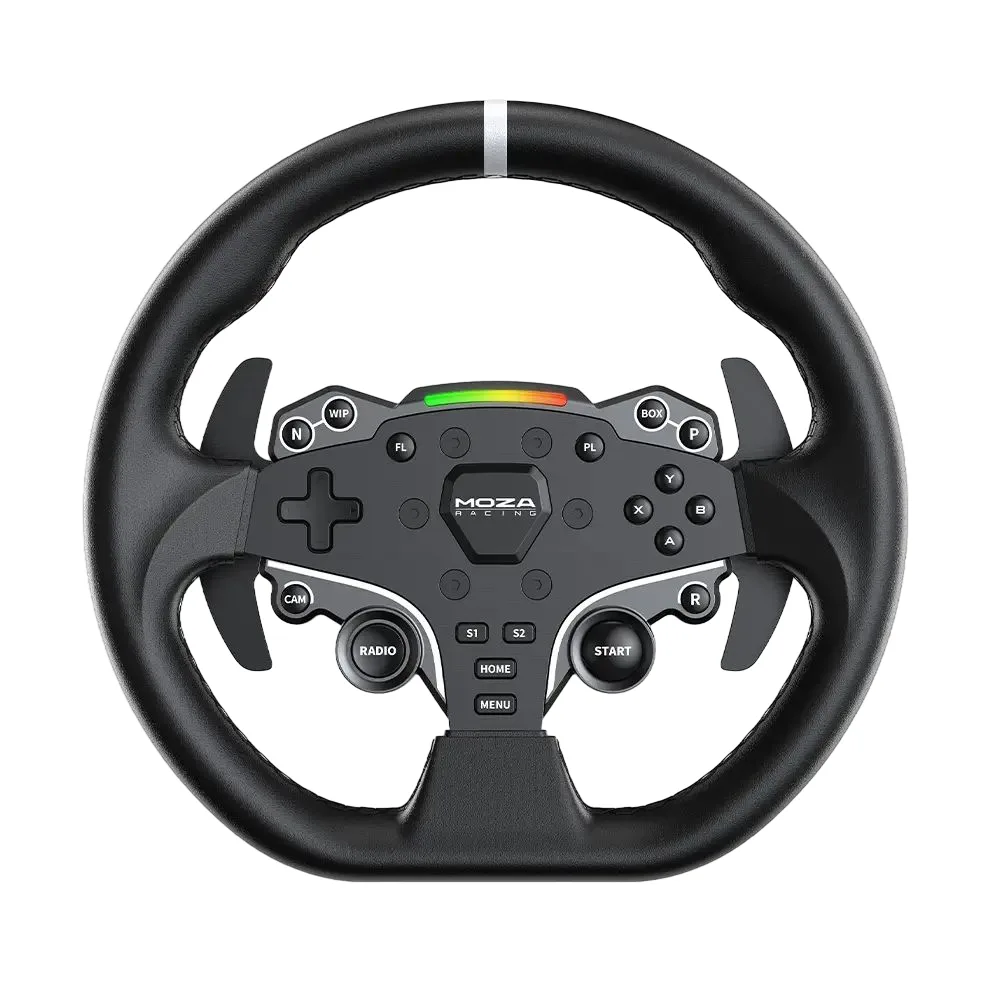

  • 280 mm ES formula wheel matches real racing dimensions

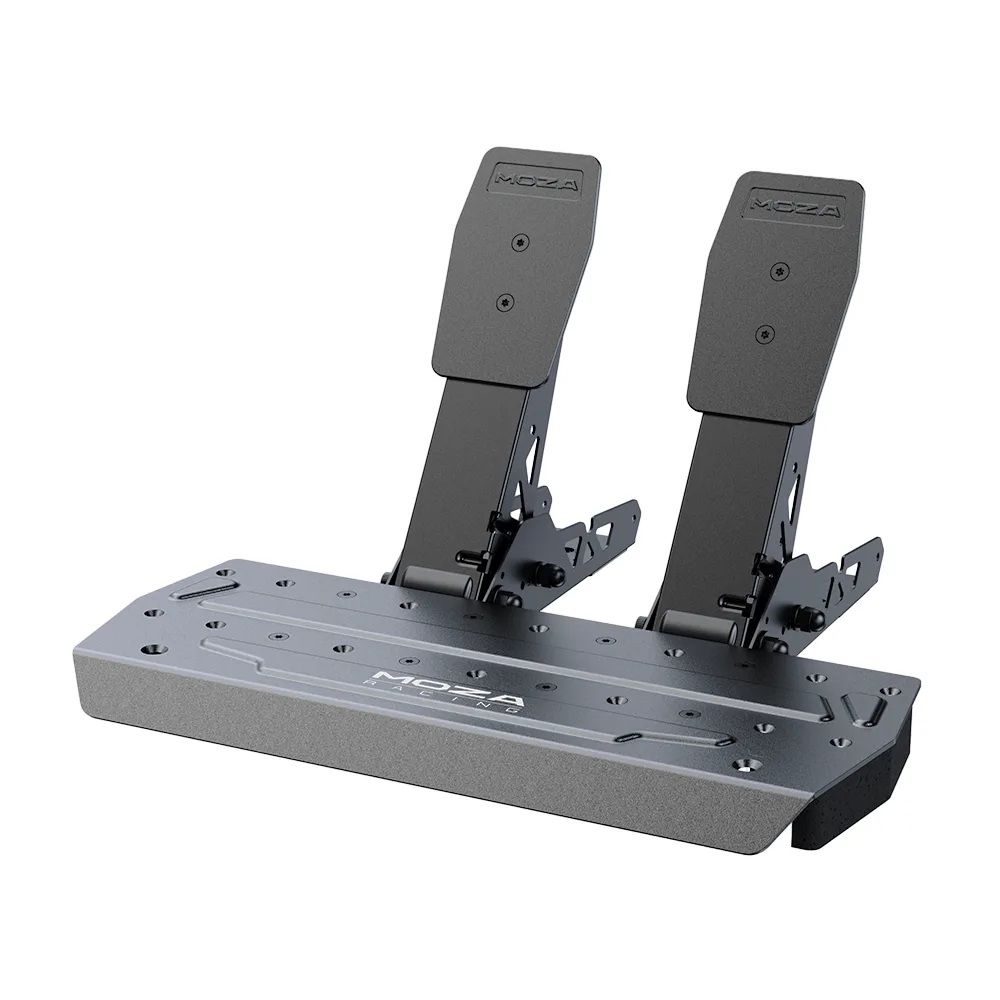

  • SR-P Lite pedals use Hall sensors for precise, adjustable input
  • MOZA Pit House software customises force feedback and button mapping

Direct-Drive Simulator Bundle

The Moza RS20 R5 delivers 5.5Nm of peak torque through a direct-drive motor housed in aviation-grade aluminium alloy. The bundle includes an ES formula-style wheel and SR-P Lite pedals plus a table clamp so the system is ready to race on a standard desk. It connects to a PC via USB at a 1000Hz refresh rate for low-latency feedback.

5.5Nm Torque With 2700° Rotation

The motor provides 5.5Nm of continuous force feedback across a maximum steering angle of 2700°, giving ample headroom for high-downforce formula cars and GT machinery. Drivers who need sustained torque above this level for heavy truck or rally simulations will find the unit reaches its limit during extended high-load corners.

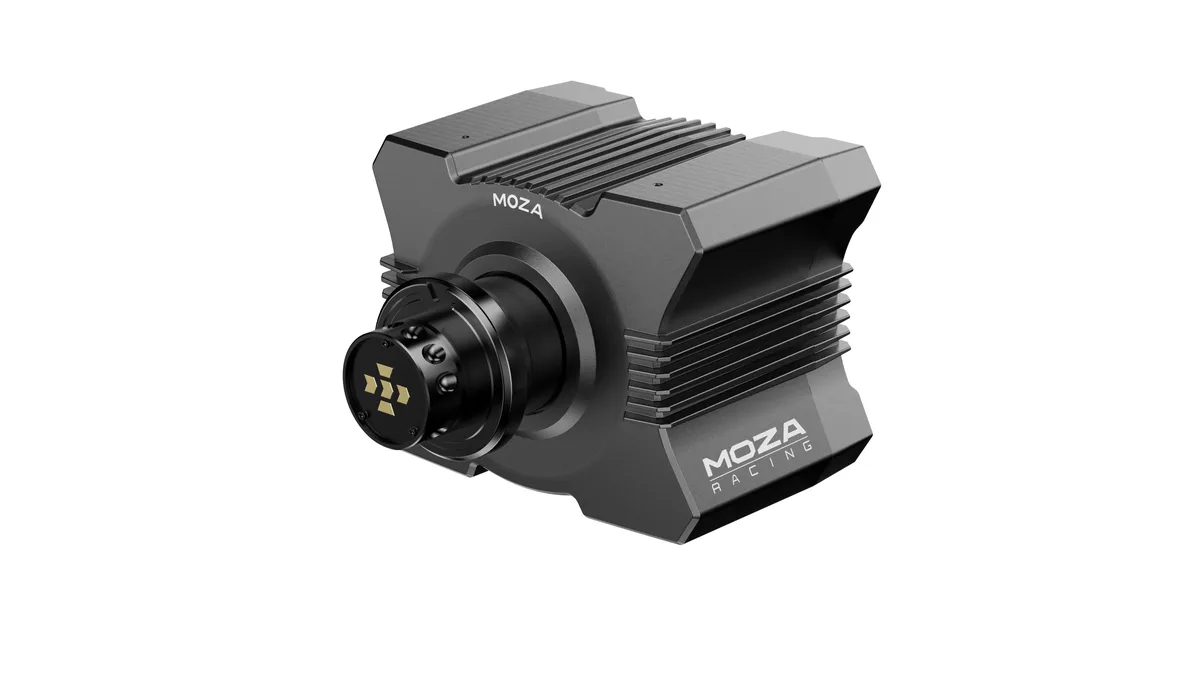

Passive Cooling And Low Power Draw

The compact direct-drive base relies on its aluminium housing for passive heat dissipation so no fan noise is added to the cockpit. Power is supplied through an external 110V~220V AC to 12V DC adapter keeping the desk footprint small and the electrical draw modest during typical sessions.

Highlights

  • 5 Nm peak torque for strong, direct-drive force feedback
  • 2700 ° maximum steering angle allows multiple full rotations
  • 280 mm ES formula wheel matches real racing dimensions
  • SR-P Lite pedals use Hall sensors for precise, adjustable input
  • MOZA Pit House software customises force feedback and button mapping

Specifications

BrandMoza
ModelRS20
TypeBases
Simulator TypeRacing
PlatformPC
SpecificationDD R5
Platform: PC
FFB Drive System: Direct Drive
Max Steering Angle: 2700°
Housing Material: Aviation Grade Aluminum Alloy
Color: Black
Peak Torque: 5.5Nm
USB Refresh Rate: 1000Hz
Input Voltage: 110V~220V AC —>12V DC
Encoder Resolution: 15 bits
App Functions: Supported
Quick Release: Supported
Interface: Power, Data, Display, Pedals, Wheel Input
Accessories: User manual, Warranty card, Power supply, USB cable, Toolkit
Mounting Method: 4 holes on the bottom
Desktop Mounting Clip: Standard
Online Firmware Upgrade: Supported
Emergency Stop Switch: Optional
Firmware Upgrade: Applicable
Shipping weight10.52 kg
Package size417 × 406 × 259 mm

Questions about this item

Will the 5.5 Nm direct-drive base mount to my existing desk without a dedicated rig?

The bundle includes a table clamp that secures the R5 base to a standard desk or table for plug-and-play use.

How can I verify the force feedback is running at the advertised 1000 Hz USB refresh rate?

The MOZA Pit House software reports the live refresh rate and lets you tune force-feedback curves to confirm performance.

Does the box contain the ES steering wheel and SR-P Lite pedals, or must they be purchased separately?

The bundle ships with the 280 mm ES formula wheel mod and SR-P Lite pedals included; no extra components are required for a complete setup.
