Small grey metal box with multiple network ports

Moxa

Moxa EDS-P206A-4PoE Unmanaged PoE Ethernet Switch

SKU CH-K935-CEX9J

Unmanaged PoE switch with four powered 10/100BaseTX ports, two extra 10/100BaseTX ports, up to 30 W per PoE port and redundant 12/24/48 VDC inputs for 0 to 60 °C operation

  • IEEE 802.3af/at PoE powers devices through Ethernet cables
  • Up to 30 W per port runs demanding endpoints
  • Redundant 12/24/48 VDC inputs keep the switch alive
  • Intelligent detection classifies power needs automatically
  • Operating range 0 to 60 C suits industrial environments

Unmanaged PoE Switch for Industrial Networks

The Moxa EDS-P206A-4PoE is an unmanaged Ethernet switch designed for industrial environments. It provides six 10/100BaseTX ports, four of which deliver IEEE 802.3af/at compliant Power over Ethernet. Each PoE port supplies up to 30 W for connected devices such as IP cameras or wireless access points.

Suited for Simple PoE Deployments.

This switch fits installations that need plug-and-play PoE distribution without configuration. It operates from 0 to 60 °C with redundant 12/24/48 VDC power inputs for reliability. Buyers who require VLANs, QoS, SNMP monitoring or Gigabit uplink speeds should look at managed alternatives.

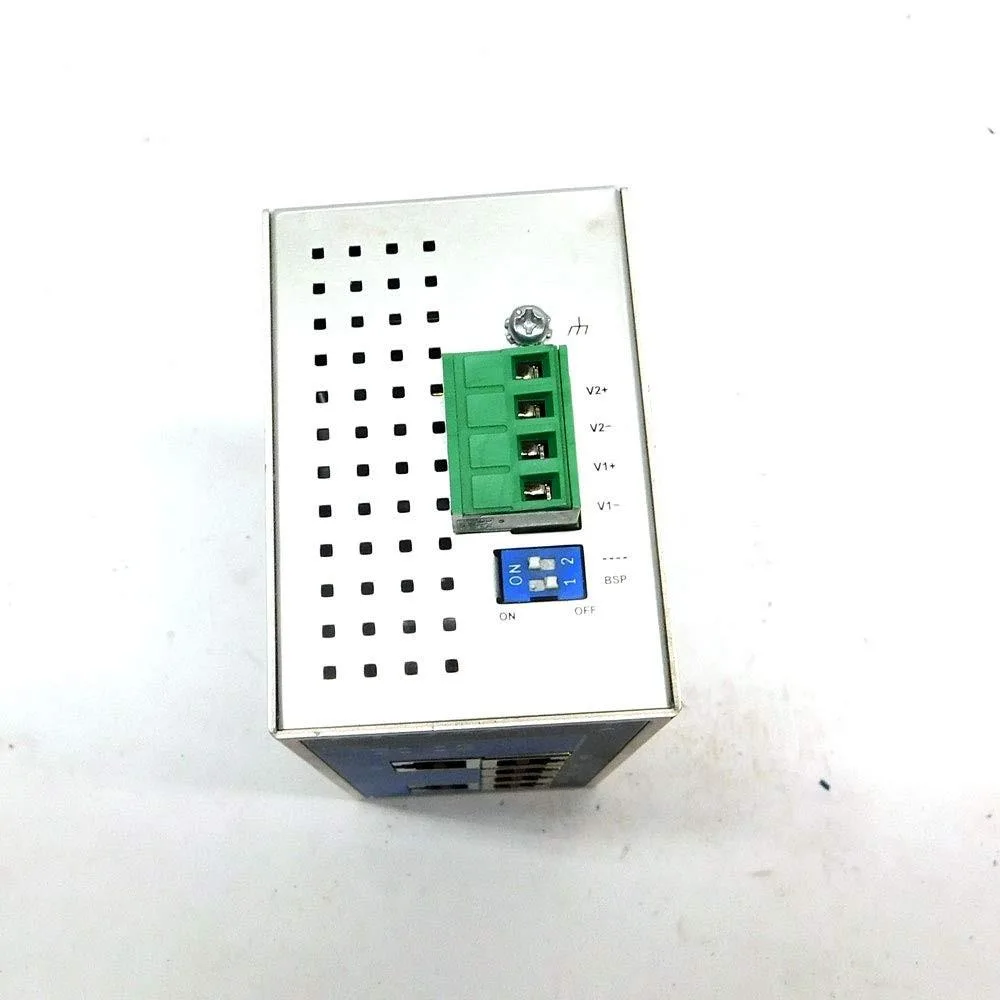

DIN-Rail Mounting with Redundant DC Power

The unit mounts on a standard DIN rail and accepts two independent DC power sources for fault tolerance. Intelligent power detection classifies connected devices automatically. Installers must ensure the total PoE budget matches the power supply capacity and that cabling does not exceed 100 m for 10/100 links.

Highlights

  • IEEE 802.3af/at PoE powers devices through Ethernet cables
  • Up to 30 W per port runs demanding endpoints
  • Redundant 12/24/48 VDC inputs keep the switch alive
  • Intelligent detection classifies power needs automatically
  • Operating range 0 to 60 C suits industrial environments

Specifications

No published specifications for this item yet.

Questions about this item

What power source do I need to run the EDS-P206A-4PoE switch?

The switch accepts redundant 12, 24 or 48 VDC inputs, so you must provide a compatible DC power supply.

Can I keep my 10/100BaseTX devices on the two non-PoE ports while powering newer PoE gear on the other four?

Yes, the two standard 10/100BaseTX ports operate alongside the four PoE 10/100BaseTX ports without speed mismatch.

How do I confirm each PoE port is delivering up to 30 W to a connected device?

The switch performs intelligent power consumption detection and classification per IEEE 802.3af/at, so the port LED pattern indicates active power delivery.
