Metal soundbar bracket, long slim arms, matte black finish, adjustable swivel plates

Mounting Dream MD5420 Soundbar Mount Bracket 15 Lbs

SKU CH-XG64-JWM6G

Soundbar bracket holds up to 15 lbs, fits TV VESA patterns up to 600x400 mm, and swivels 180 degrees for flexible placement

  • MaterialsMetal
  • Length563 L x 11.5 W x 44 H millimeters
  • SpecificationMounting Dream, MD5420, Metal, 563 L x 11.5 W x 44 H millime
  • FeatureMetal
  • Dimension563 mm x 11.5 mm x 44 mm
  • Weight1.22 kilograms
  • Holds soundbars up to 15 lbs / 6.8 kg without drilling into walls
  • Adjustable plates swivel 180 degrees for flexible positioning under or above TV
  • Fits TV VESA patterns up to 600x400 mm for 26-90 inch displays
  • Teeth on arm connections lock soundbar securely using existing TV mount screws
  • Includes L-shaped bracket and full hardware kit with M4, M5, M6 bolts and washers

Soundbar bracket up to 15 lbs

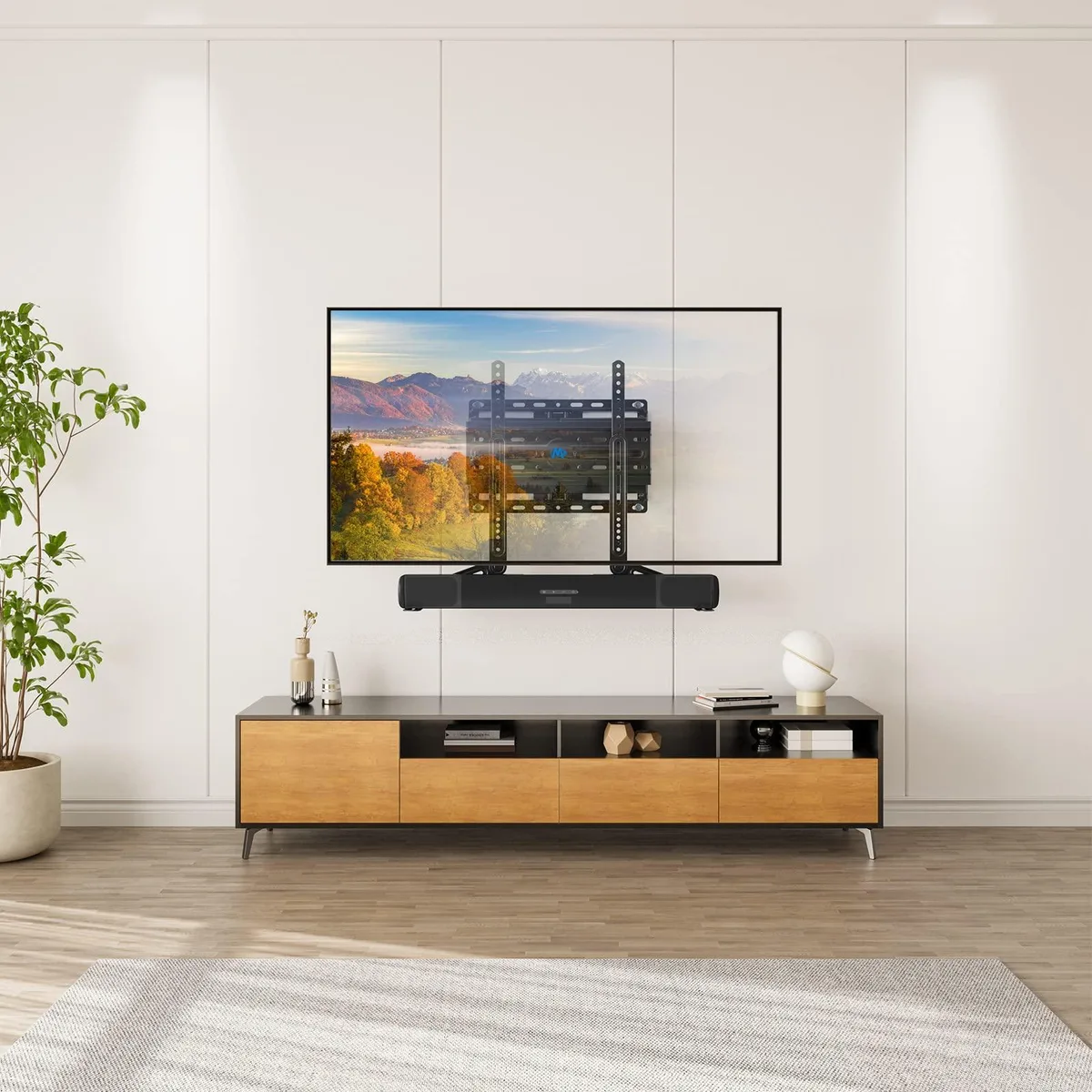

The Mounting Dream MD5420 is a metal bracket designed to hold soundbars weighing up to 15 lbs (6.8 kg). It attaches to the VESA mounting points of a TV or a compatible wall mount, so the soundbar sits above or below the screen without needing its own wall anchors. The bracket suits buyers who want a single mounting point for both devices.

Fits VESA patterns to 600x400 mm

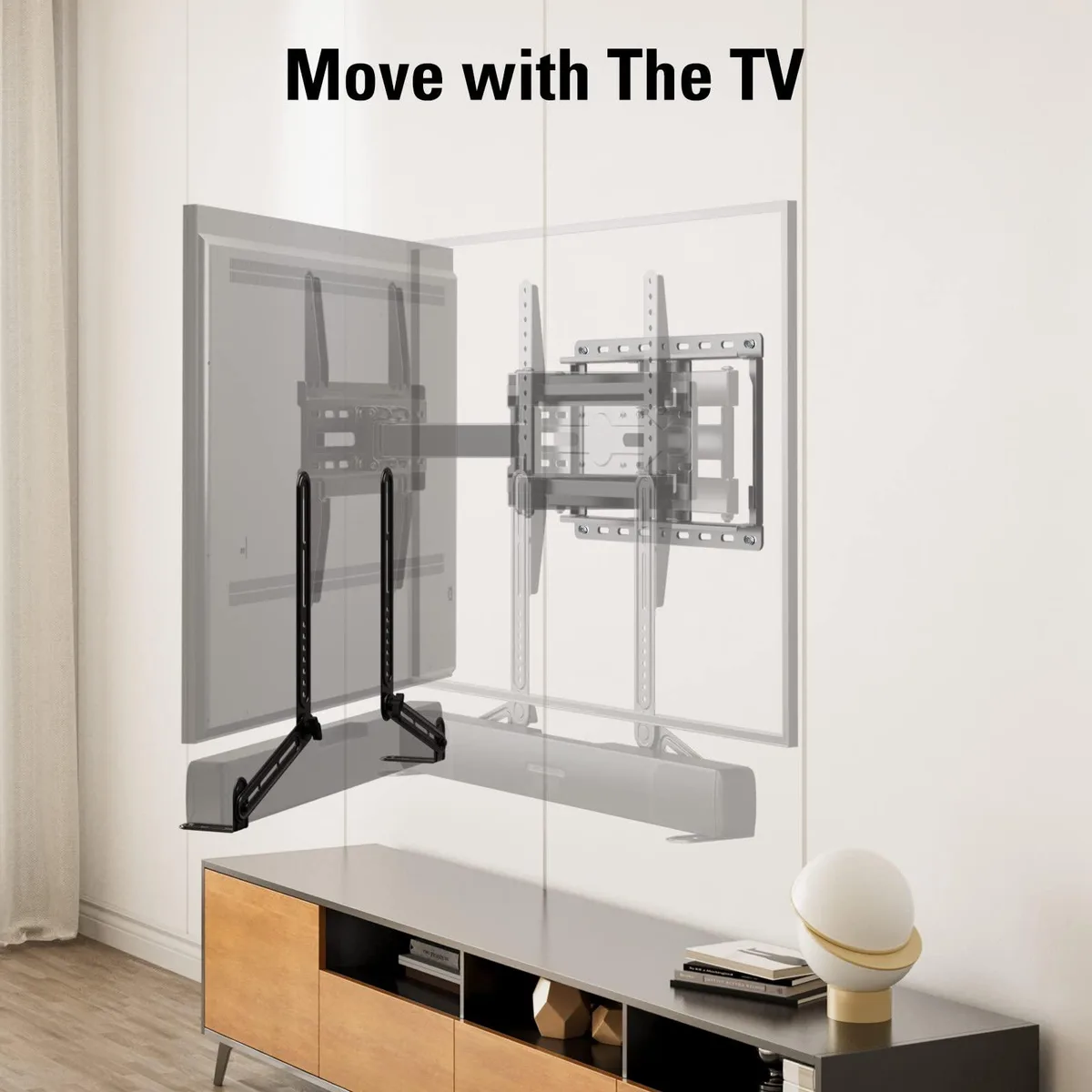

The bracket spans 563 mm in length and supports TV VESA patterns including 200x100, 200x200, 300x300, 400x200, 400x400 and 600x400 mm. Adjustable, detachable extension plates allow a 180-degree swivel for flexible positioning. It works with fixed, tilt or full-motion TV mounts and is not recommended for TVs larger than 83 inches without an additional extension bracket.

Hardware kit with multiple bolt sizes

The package includes the bracket unit, a hardware kit and a user manual. The kit supplies M4x16 mm, M5x16 mm, M6x16 mm and M6x12 mm bolts plus washers, antiskid nuts, key-hole bolts and M6 butterfly nuts. Teeth on the arm connections lock the soundbar in place, removing the need to drill screw holes in the soundbar itself.

Highlights

  • Holds soundbars up to 15 lbs / 6.8 kg without drilling into walls
  • Adjustable plates swivel 180 degrees for flexible positioning under or above TV
  • Fits TV VESA patterns up to 600x400 mm for 26-90 inch displays
  • Teeth on arm connections lock soundbar securely using existing TV mount screws
  • Includes L-shaped bracket and full hardware kit with M4, M5, M6 bolts and washers

Specifications

BrandMounting Dream
ModelMD5420
Part NumberMD5420
MaterialsMetal
Length563 L x 11.5 W x 44 H millimeters
SpecificationMounting Dream, MD5420, Metal, 563 L x 11.5 W x 44 H millimeters, 1.22 kilograms
FeatureMetal
Dimension563 mm x 11.5 mm x 44 mm
Weight1.22 kilograms

Questions about this item

How much weight can the MD5420 bracket hold before it becomes the limiting factor?

The bracket supports soundbars up to 15 lbs (6.8 kg), which is the maximum load it is rated for.

Does the metal bracket generate noticeable heat or noise during all-day use?

The MD5420 is a passive metal bracket with no moving parts or electronics, so it produces no heat or noise.

Which TV VESA patterns must my TV already have for this mount to attach?

Compatible VESA patterns are 200x100, 200x200, 300x300, 400x200, 400x400 and 600x400 mm.
