Black steel tilting TV wall bracket with open wall plate for cable routing

Mount-It

Mount-It Tilting TV Mount 37-80" 175 lbs VESA 600x400

SKU CH-SF2A-0HQ3P

Tilting wall bracket holds 37-80" TVs up to 175 lbs with 10° up and 12° down adjustment, fits VESA 100x100 to 600x400, installs on 16 or 24" studs or solid walls.

  • Mount StyleMounting Bracket
  • ColorBlack
  • TV Size Capacity80"
  • TV Weight CapacityMax. load 175 lbs.
  • Reduces glare with tilt up to 10 degrees up and 12 degrees down

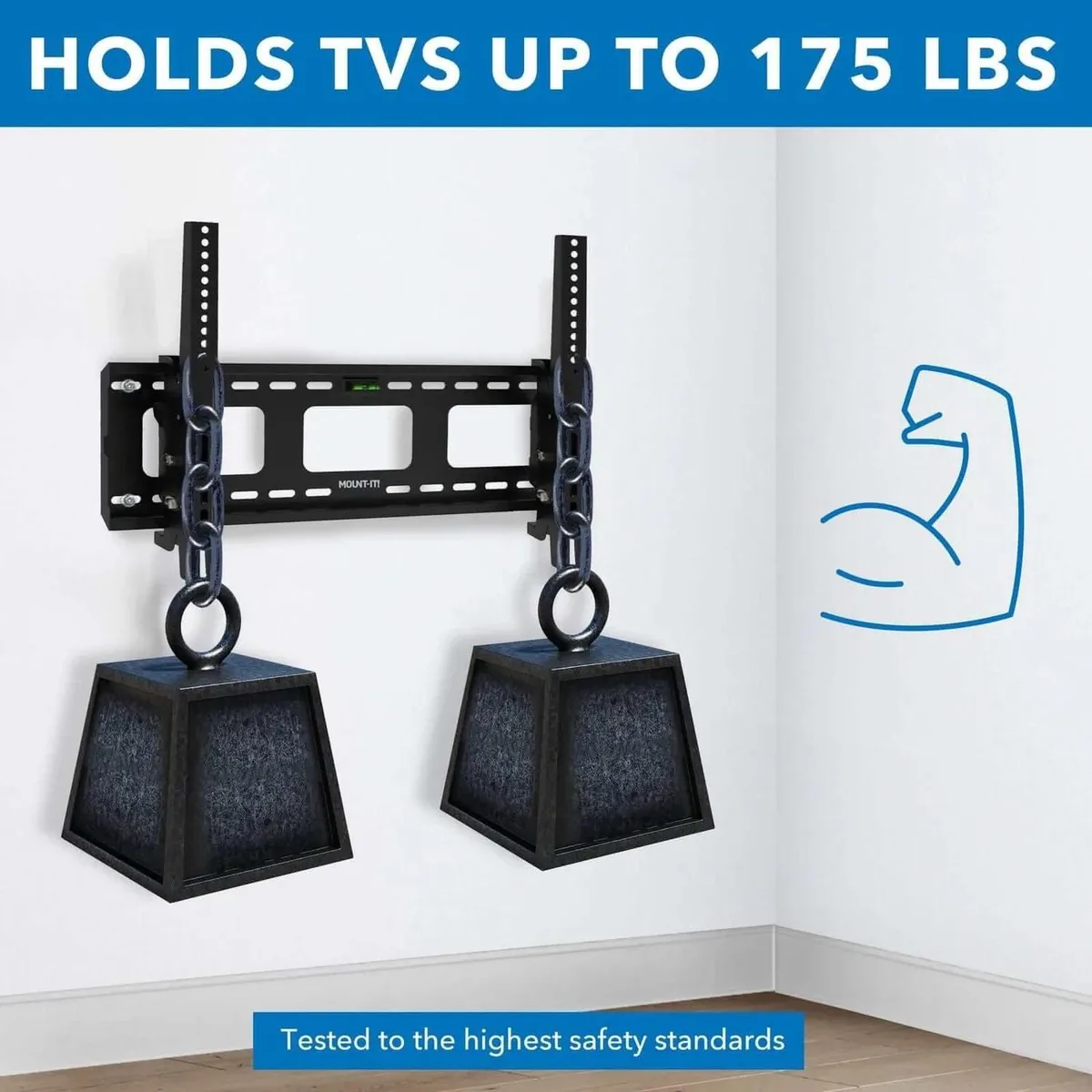

  • Holds TVs from 37 to 80 inches weighing up to 175 lbs

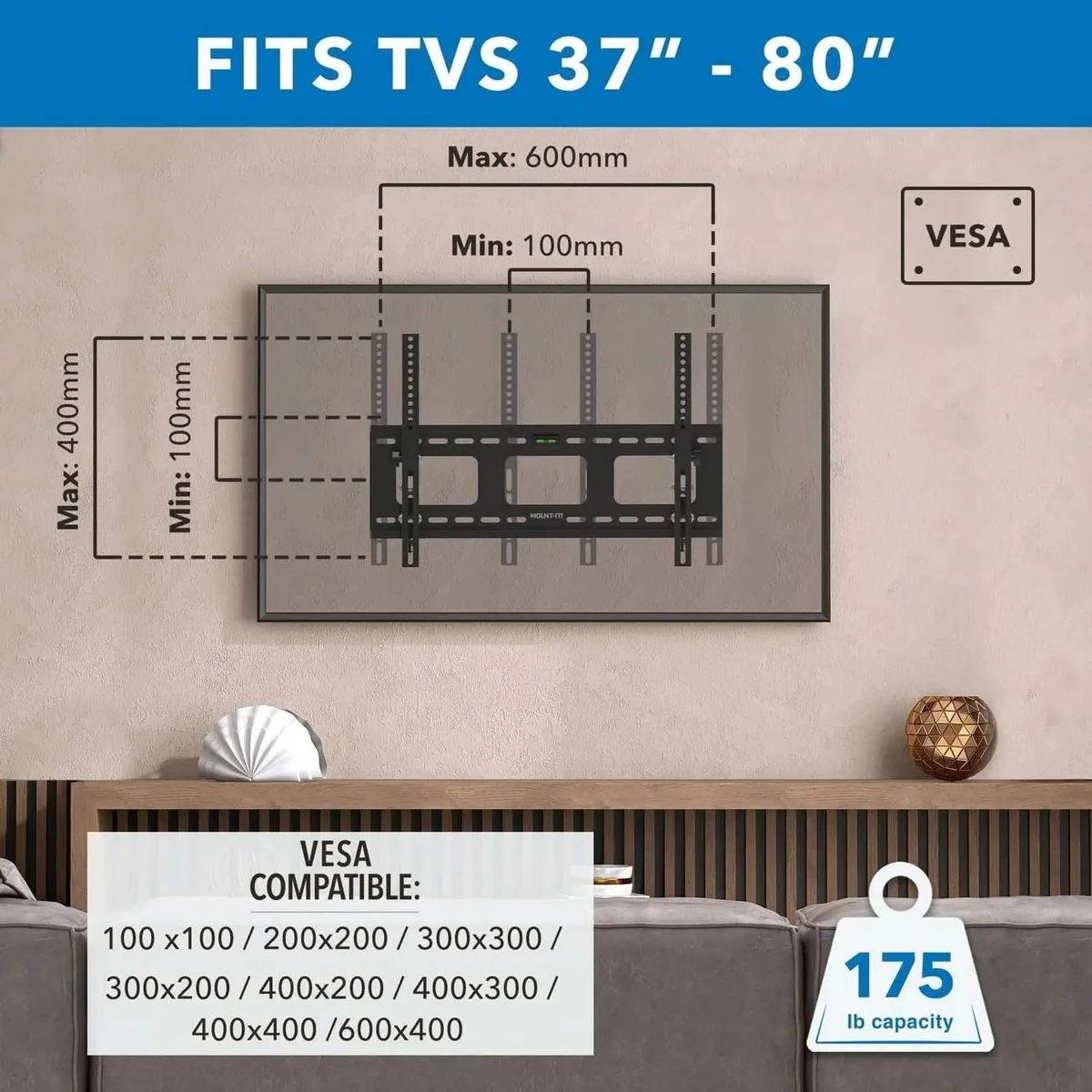

  • Fits VESA patterns from 100x100 to 600x400 for broad compatibility
  • Large wall-plate openings simplify cable routing and hide wires
  • Installs on 16 or 24 inch wood studs or solid walls

Heavy-duty mount for 37-80 inch TVs

This steel bracket supports flat screens from 37 to 80 inches and carries up to 175 lbs. It fits VESA patterns from 100x100 through 600x400, covering most medium and large displays. The low 2.45 inch profile keeps the TV close to the wall while still allowing tilt adjustment. Installation works on 16 or 24 inch wood studs and solid walls.

Tilt range and cable management

The mount tilts 10 degrees up and 12 degrees down to reduce glare from windows or lighting. Large openings in the wall plate give room to route power and signal cables neatly behind the screen. No moving parts generate noise and the fixed steel construction draws no power. Normal use is silent and thermally neutral.

Replaces fixed or undersized brackets

This unit replaces a non-tilting mount when glare reduction is needed or a bracket rated below 175 lbs when the TV is heavier. The jump is worth it if the current mount cannot reach the required VESA pattern or lacks the tilt range for the viewing position. It is not for buyers who need full-motion articulation or a mount that extends away from the wall.

Highlights

  • Reduces glare with tilt up to 10 degrees up and 12 degrees down
  • Holds TVs from 37 to 80 inches weighing up to 175 lbs
  • Fits VESA patterns from 100x100 to 600x400 for broad compatibility
  • Large wall-plate openings simplify cable routing and hide wires
  • Installs on 16 or 24 inch wood studs or solid walls

Specifications

BrandMount-It
Mount StyleMounting Bracket
ColorBlack
TV Size Capacity80"
TV Weight CapacityMax. load 175 lbs.

Questions about this item

How do I install the mount on 16-inch or 24-inch wood studs and what step do people often miss?

Locate the centre of each stud, drill pilot holes, then bolt the wall plate to two studs using the supplied lag bolts; the step people miss is confirming both bolts hit the stud centre so the 175 lb rating is fully supported.

What maintenance or replacement will the mount need over time?

No scheduled maintenance is required; periodically check that the lag bolts and TV mounting screws remain tight, and replace any hardware that shows corrosion or stripped threads.

What is the first limit reached when the TV is tilted repeatedly?

The tilt mechanism stops at +10° up and -12° down; exceeding this range is mechanically blocked by the bracket stops.
