Black steel VESA bracket clamps round pole, tilts and swivels display

Mount-It

Mount-It MI-390 VESA Pole Mount 32" 17.6lbs

SKU CH-DD3P-HEEHN

Clamps to poles 1.1 to 2.4 inches wide and holds VESA 75 or 100 screens up to 32 inches and 17.6 lbs with 45-degree tilt and 180-degree swivel

  • TypeBracket
  • ColorBlack
  • Supports screens up to 32 inches with VESA 75x75mm and 100x100mm
  • Holds displays weighing up to 17.6lbs on heavy-duty steel construction
  • Clamps securely to poles from 1.1 to 2.4 inches in diameter
  • Tilts 45 degrees up or down for optimal viewing angle

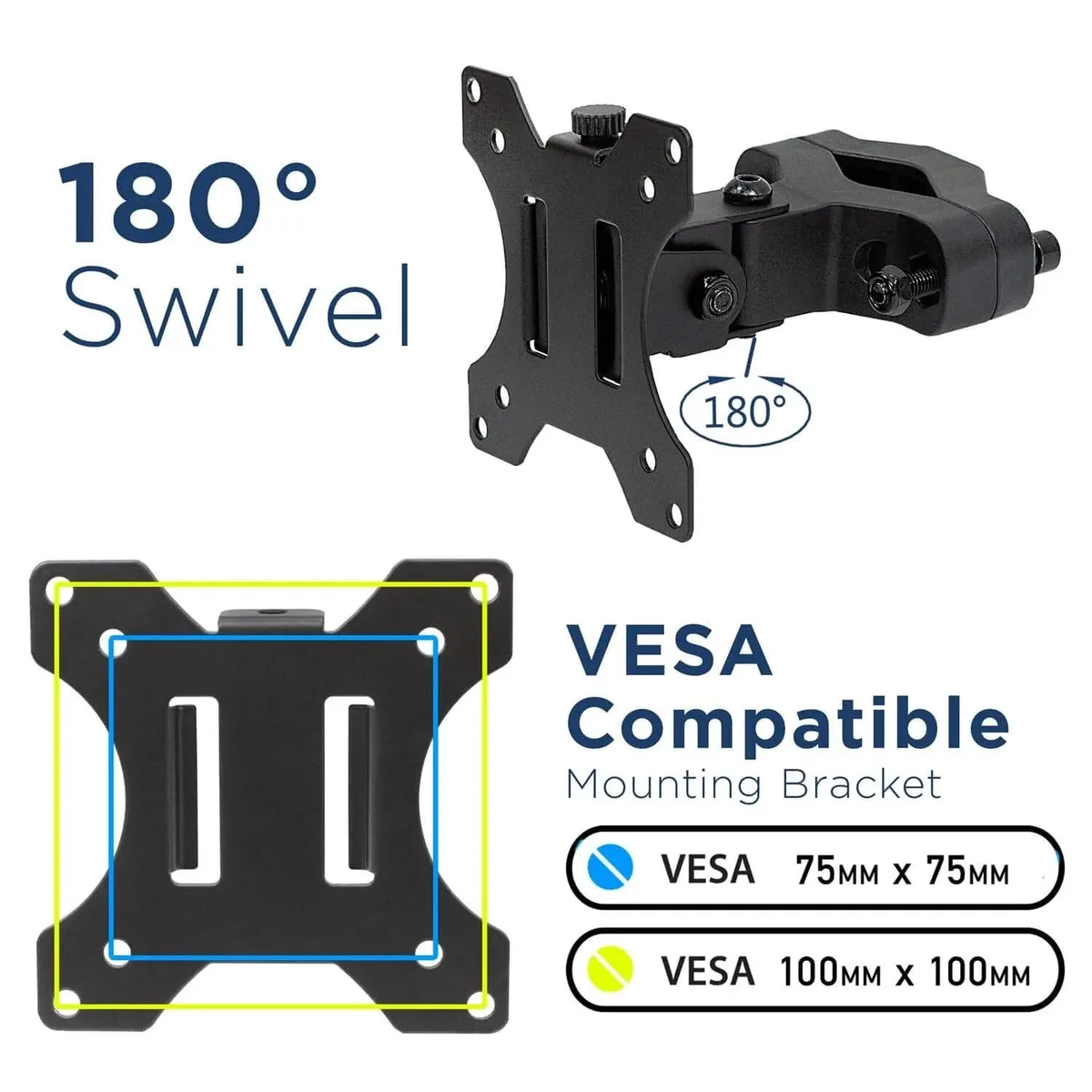

  • Swivels 180 degrees and rotates for flexible positioning

Mount-It MI-390 pole clamp for screens up to 32

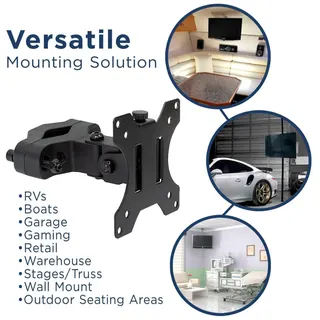

The MI-390 attaches a VESA 75x75mm or 100x100mm display weighing up to 17.6lbs to a vertical or horizontal pole. It suits installers who need a monitor or TV mounted on structural tubing in garages, retail spaces, stage truss, boats or outdoor seating areas. The steel bracket clamps poles from 1.1" to 2.4" in diameter.

Pole diameter range is the hard limit for this mount

Clamping force only works on round poles between 1.1" and 2.4" outer diameter; square tubing, flat rails or poles outside that span will not hold. The VESA pattern must be exactly 75x75mm or 100x100mm and the screen cannot exceed 32" or 17.6lbs. Tilt travels 45° up or down and swivel reaches 180° but there is no height adjustment along the pole.

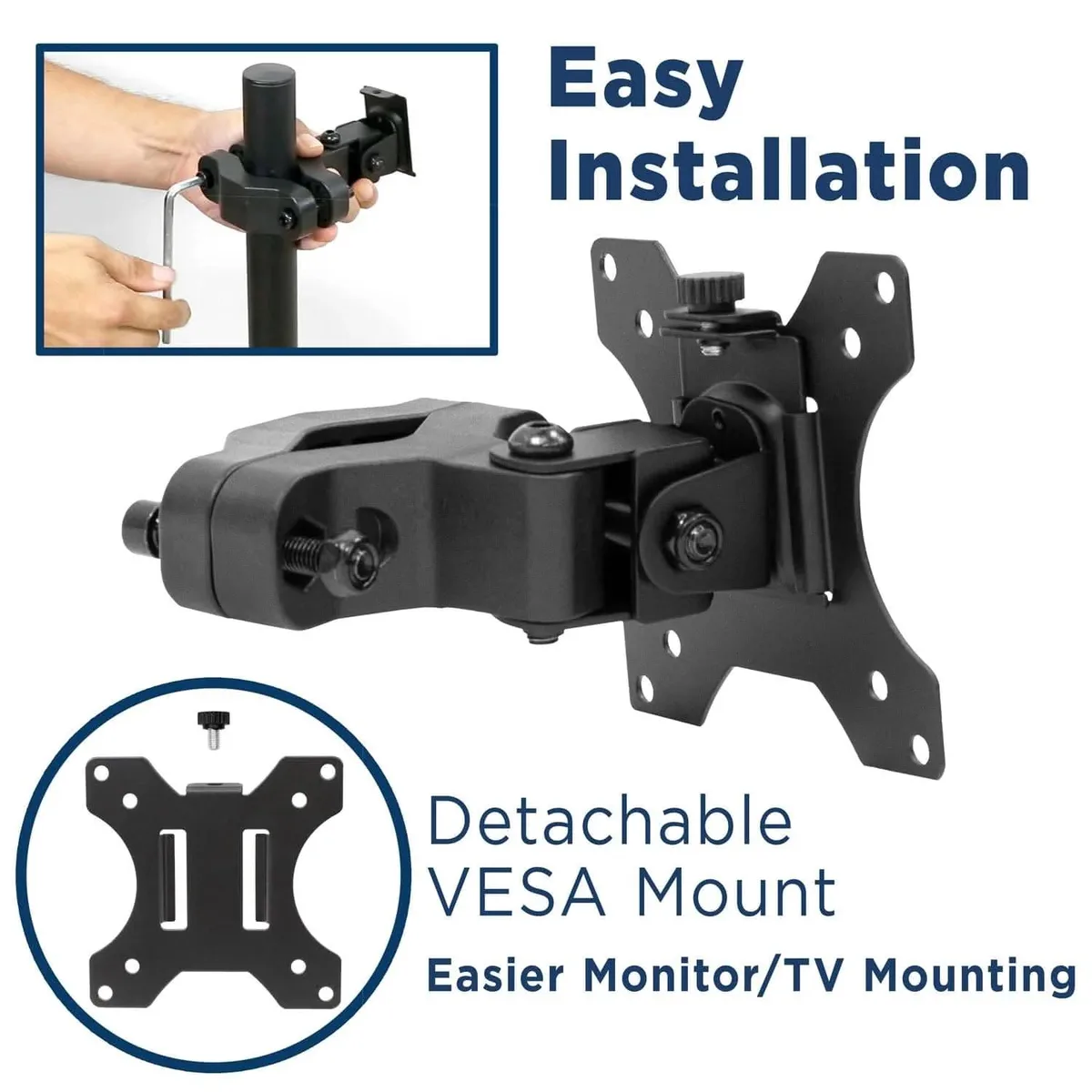

Installation is a two-bolt clamp

Most fitters secure the clamp around the pole with the supplied hardware then bolt the display to the VESA plate. The usual problem is discovering the pole is slightly over 2.4" or has an irregular shape so the jaws cannot close fully. Another common issue is the screen's VESA holes being recessed, requiring longer screws than those included.

Highlights

  • Supports screens up to 32 inches with VESA 75x75mm and 100x100mm
  • Holds displays weighing up to 17.6lbs on heavy-duty steel construction
  • Clamps securely to poles from 1.1 to 2.4 inches in diameter
  • Tilts 45 degrees up or down for optimal viewing angle
  • Swivels 180 degrees and rotates for flexible positioning

Specifications

BrandMount-It!
TypeBracket
ColorBlack

Questions about this item

Which pole diameter range does the MI-390 clamp fit?

The clamp adjusts to fit poles from 1.1 inches to 2.4 inches in diameter.

What screen sizes and weight does the MI-390 support?

It holds displays up to 32 inches and a maximum weight of 17.6 lbs.

What VESA patterns and tilt range does the MI-390 offer?

It mounts 75x75 mm and 100x100 mm VESA patterns with 45 degrees tilt up and 45 degrees tilt down.
