Motorola
Motorola LI2208-SR7U2100AZN corded 1D linear imager barcode scanner
Handheld 1D linear imager scans barcodes on paper and screens up to 31 inches away with 547 scans per second
- Form FactorHandheld
- ConnectivityCorded
- Scan Engine1D Linear Imager
- Interfaces SupportedUSB
- Light SourceLED
- Pitch±65 degree
- Scans 1D barcodes on mobile screens with linear imager engine
- Captures codes up to 31 inches away for flexible reach
- Survives 6-foot drops to concrete with single board design
- IP42 rating resists dust and water splashes in daily use
- 547 scans per second throughput speeds checkout lines
Motorola LI2208 Linear Imager
The Motorola LI2208-SR7U2100AZN is a corded handheld barcode scanner built for retail point-of-sale, shipping, receiving and hospitality check-in. It reads 1D barcodes on paper labels and on mobile phone, tablet or computer screens. The USB interface connects directly to a host system without extra power.
Installation and common issues
Plug the included USB cable into the host and the scanner is recognised as a keyboard input device; no driver installation is required on standard operating systems. Ensure the scanner is held within the 31-inch depth of field and that the barcode has at least 15% print contrast. Direct sunlight does not prevent reads, but reflective screen protectors on mobile devices can reduce first-pass success.
1D linear imager scan engine
The single circuit board construction survives 6-foot drops to concrete and carries an IP42 seal against dust and water splashes. The engine captures 547 scans per second with pitch ±65°, roll ±45° and yaw ±65° for wide-angle tolerance. It reads 13 mil 100% UPC codes from 1 inch to over 30 inches (2.54 cm to 76.2 cm). Buyers needing 2D code capture or wireless freedom should choose a different model.
Highlights
- Scans 1D barcodes on mobile screens with linear imager engine
- Captures codes up to 31 inches away for flexible reach
- Survives 6-foot drops to concrete with single board design
- IP42 rating resists dust and water splashes in daily use
- 547 scans per second throughput speeds checkout lines
Specifications
| Brand | Motorola |
|---|---|
| Model | LI2208-SR7U2100AZN |
| Part Number | LI2208-SR7U2100AZN |
| Form Factor | Handheld |
| Connectivity | Corded |
| Scan Engine | 1D Linear Imager |
| Interfaces Supported | USB |
| Light Source | LED |
| Pitch | ±65 degree |
| Roll | ±45 degree |
| Yaw | ±65 degree |
| Scan Speed | 547 scans per second |
| Print Contrast Ratio (Minimum) | 15% |
| Color | Black |
| Dimensions | 2.75" x 7.34" x 3.84" |
| Weight | 0.49 lbs. |
| Features | 31" scanning depth of field "Auto Aim" functionality for improved scanning accuracy Withstands 6-foot drops to concrete IP42 seal protects from dirt & water splashes Can scan in direct sunlight Reads barcodes on LCD screens |
| Shipping weight | 0.50 kg |
| Package size | 183 × 124 × 76 mm |
Other versions of this model
1 more in the same range
Same family, different memory, cooler or clock — compare before you commit.
Questions about this item
How do I confirm the scanner is reading 1D barcodes correctly after plugging in the USB cable?
The LED light source will illuminate and the scanner will beep once on a successful read; the 547 scans-per-second engine captures codes from 1 in. to over 30 in. away.

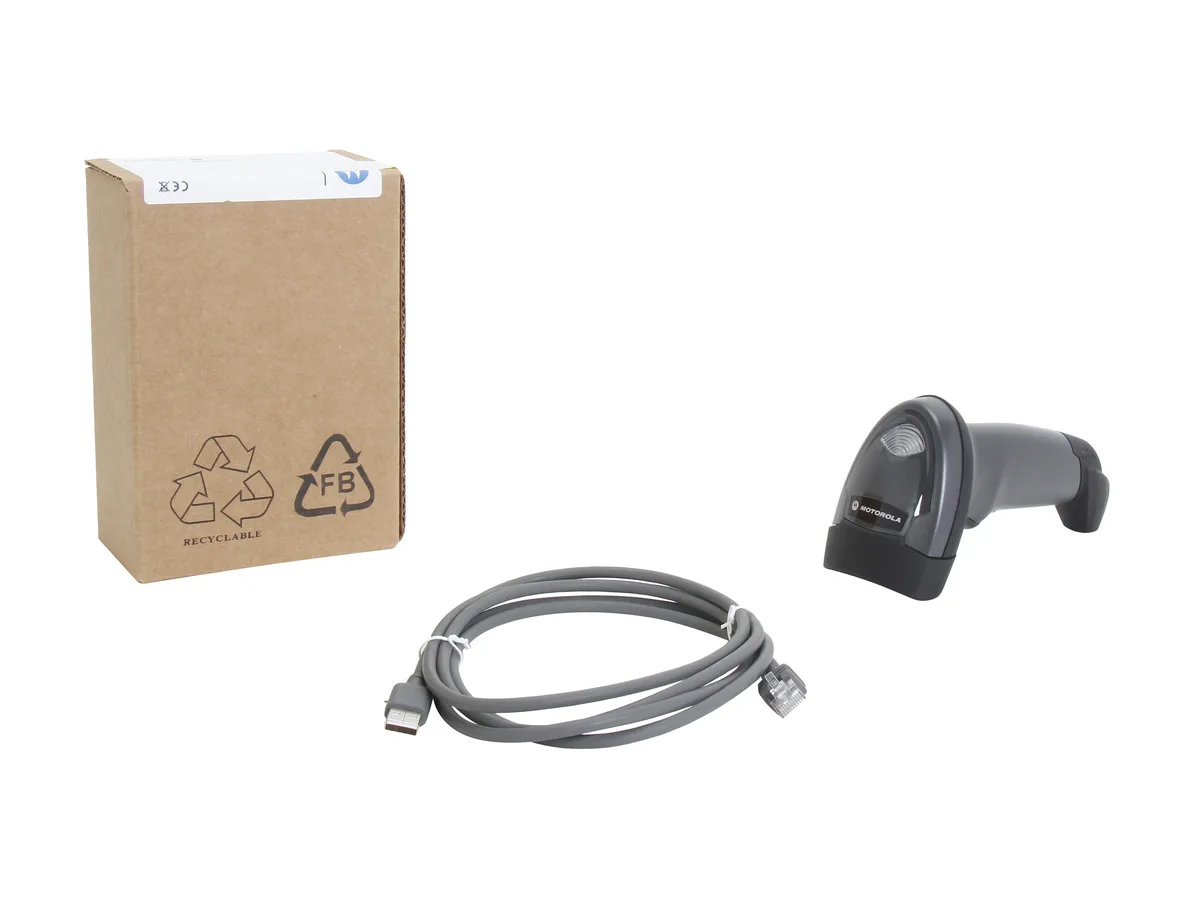

What items come in the box with the LI2208-SR7U2100AZN?
The scanner and a USB cable are included; the handheld unit weighs 0.49 lbs and measures 2.75 in. x 7.34 in. x 3.84 in.
Which scan depth should I choose for reading 13 mil UPC codes on mobile screens and paper labels?
The 31 in. depth of field covers 1 in. to over 30 in. on 13 mil 100 % UPC codes, handling both screen and paper surfaces.
