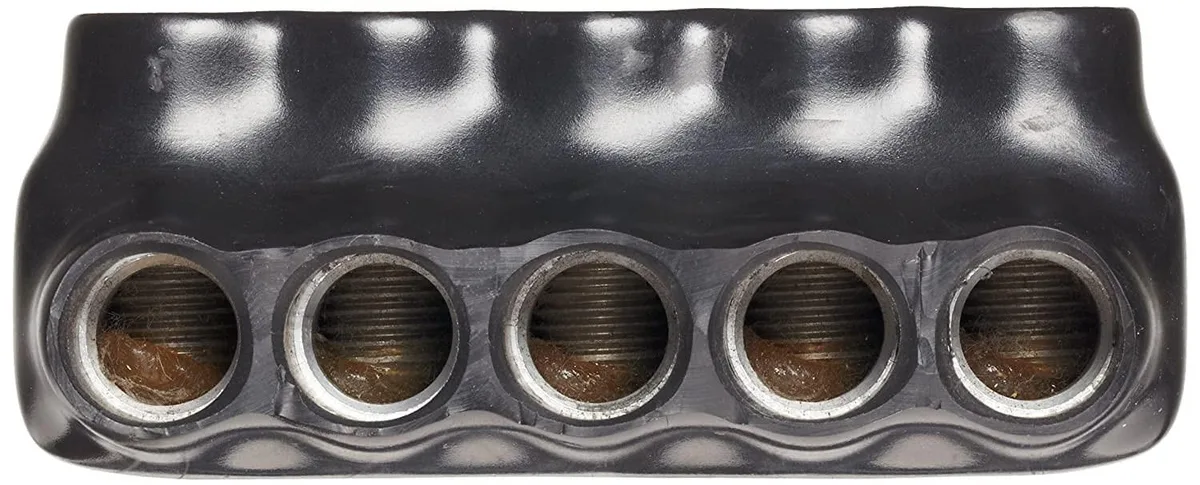

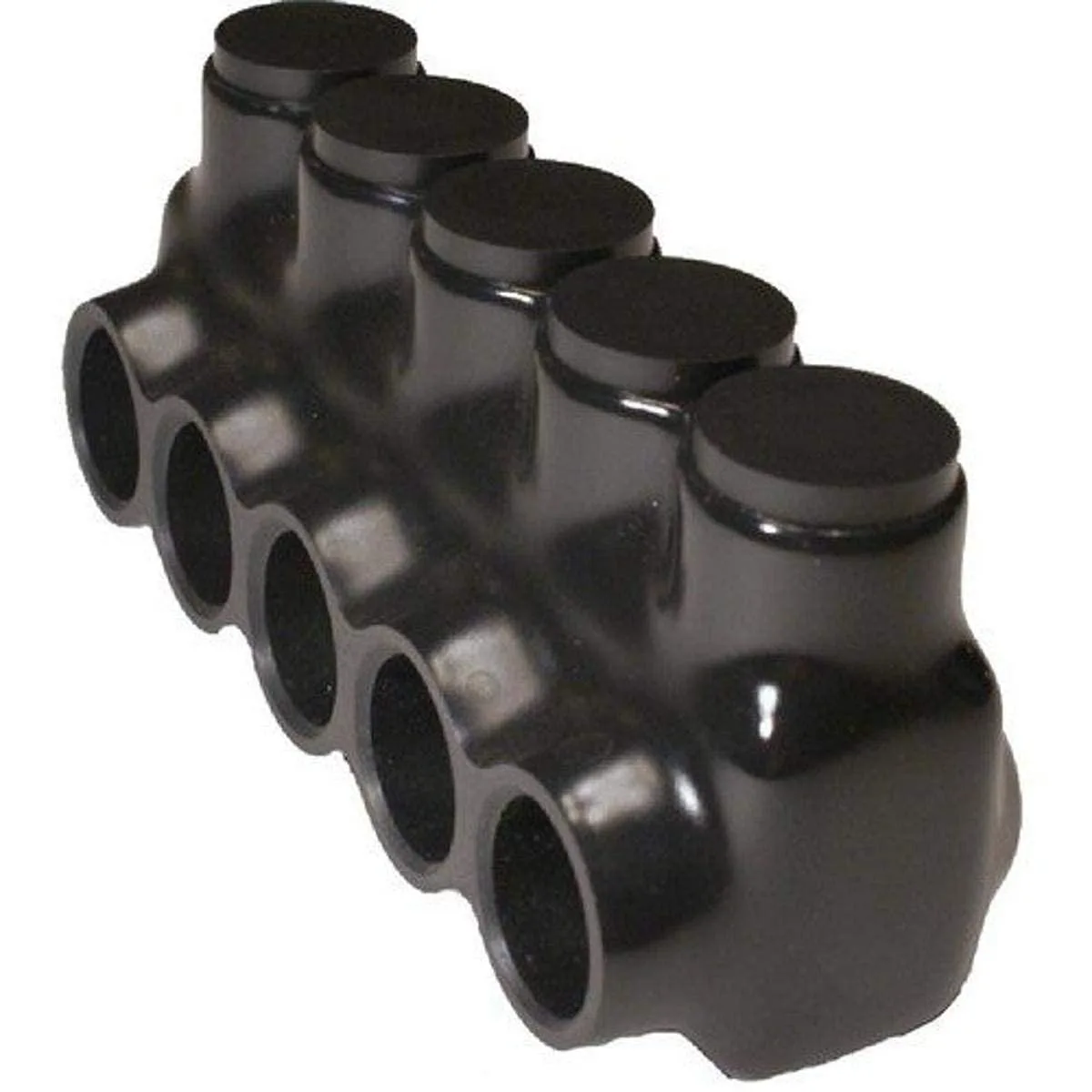

Black insulated multi-cable connector, single side entry, five ports, rugged rubber vinyl coating

Morris Products

Morris Products 97515 Black Insulated Multi-Cable Connector 5 Ports 4-14 Wire Range

SKU CH-DWFP-GNW3T

A black insulated multi-cable connector with five ports for 4-14 wire range, 600-volt dual-rated aluminium body, oxide inhibitor pre-fill and easy re-entry for inspection

  • Heavy-duty rubber and vinyl coating protects connections for long-term use
  • Single-side entry design allows quick re-entry for inspection and changes
  • Pre-filled oxide inhibitor prevents corrosion across a -49 to 194 °F range
  • 600 V, 6061-T6 aluminium body rated CU9AL for copper and aluminium wires
  • ANSI C 119.4 and cULus 486B listed for code-compliant installations

5-Port Connector for 4-14 Wire Range

The Morris Products 97515 is a single-entry multi-cable connector with five ports designed for wire sizes 4 through 14. It suits electricians and installers who need to splice or tap multiple conductors in one insulated block. The 600-volt rating and CU9AL dual rating allow use with both copper and aluminum conductors. It is not for applications requiring more than five ports or wire sizes outside the 4-14 range.

600-Volt Capacity with Oxide Inhibitor

Each port accepts one wire and the connector body is pre-filled with oxide inhibitor to reduce contact resistance over time. The assembly is rated for continuous operation from -49 to 194 degrees Fahrenheit. Headroom ends at the 600-volt limit and the five-port layout; larger conductor counts or higher voltage classes need a different connector.

Rugged Insulation and Tool Access

Insulation uses high-dielectric rubber and vinyl coating for durability in field conditions. Plugs are marked with the maximum wire size for quick identification during inspection. The single-side entry allows straightforward re-entry for troubleshooting or changes without removing the connector. Allen hex or slotted hardware options are available depending on the specific variant chosen.

Highlights

  • Heavy-duty rubber and vinyl coating protects connections for long-term use
  • Single-side entry design allows quick re-entry for inspection and changes
  • Pre-filled oxide inhibitor prevents corrosion across a -49 to 194 °F range
  • 600 V, 6061-T6 aluminium body rated CU9AL for copper and aluminium wires
  • ANSI C 119.4 and cULus 486B listed for code-compliant installations

Specifications

No published specifications for this item yet.

Questions about this item

Will the 97515 connector accept the 14 AWG copper wires I already have in my panel?

Yes, the 4-14 wire range covers 14 AWG copper and the CU9AL dual rating confirms compatibility with both copper and aluminum conductors.

How can I verify the connector is seated correctly after installation?

The single-side entry design allows visual inspection of each wire through the open ports, and the pre-filled oxide inhibitor ensures consistent contact resistance across all five terminals.

Does the 97515 come with mounting hardware or Allen keys for the set screws?

The connector is supplied as a single unit with oxide inhibitor pre-filled; slotted, 3/16 or 1/4 Allen hex keys and any mounting hardware must be purchased separately.
