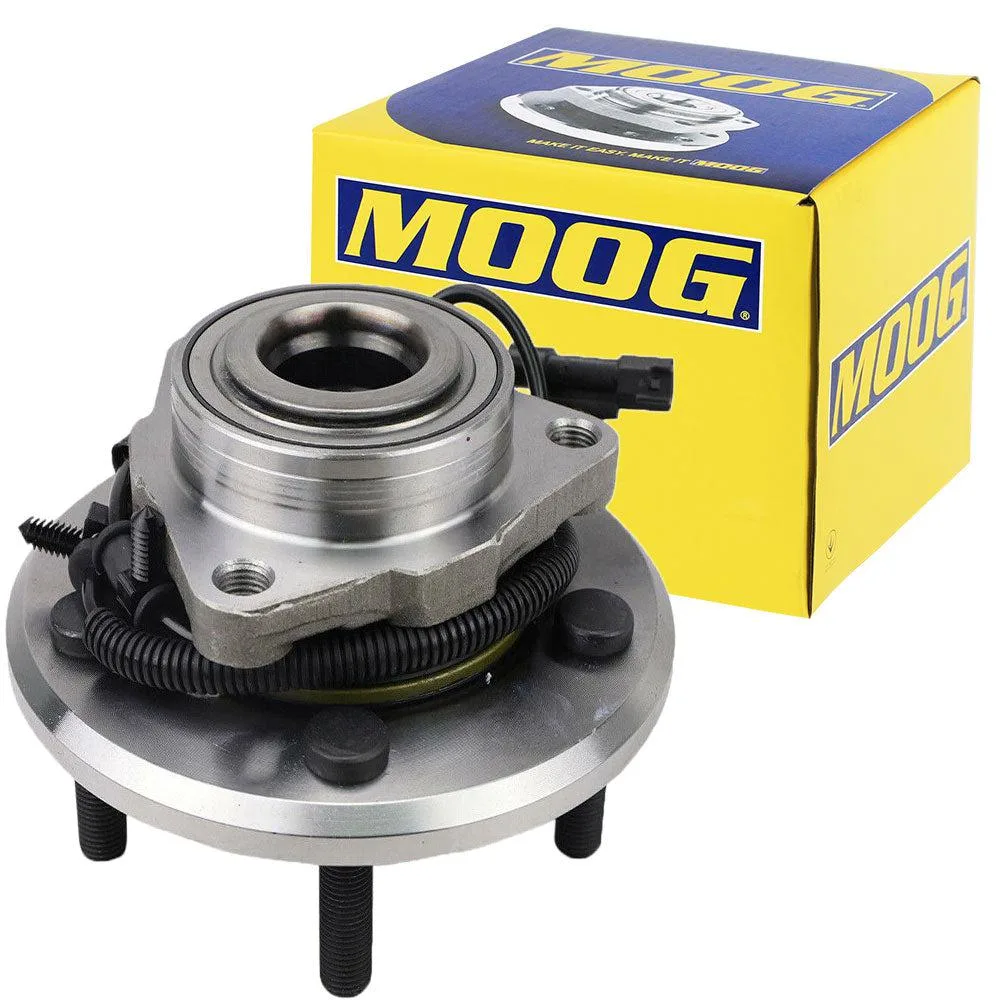

Black metal wheel hub assembly with five lug bolts and ABS sensor wire

Moog

Moog Front Wheel Bearing & Hub RAM 1500 2012-2019 accessories - wheel

SKU CH-X32W-Z6ER4

Front wheel bearing and hub assembly fits RAM 1500 models from 2012 through 2019 with a 33.47-inch wiring harness

  • ColorBlack
  • Precision fit for RAM 1500 2012-2019 models
  • 33 splines and 55 ABS teeth ensure correct sensor operation
  • 5-lug M14-1.50 pattern matches OE 515151 specification
  • 47 in harness reaches connector without splicing
  • Driven hub with 7.20 in diameter supports factory load rating

Front Wheel Hub for RAM 1500 2012-2019

This Moog front wheel bearing and hub assembly fits RAM 1500 models from 2012 through 2019, covering both two-wheel-drive and four-wheel-drive variants. It serves the driver or passenger side front position and includes five lug bolts for direct installation.

Sustained Load Durability

The driven hub uses 33 splines and a 55-tooth ABS sensor ring to maintain consistent signal accuracy under continuous rotation and braking cycles. A 33.47-inch wiring harness provides secure routing without tension during full suspension travel.

Replaces OE Numbers 515151 and HA590492

This unit replaces original equipment part numbers 515151, HA590492, BR930858 and HA590515 when the factory hub shows bearing noise, ABS faults or excessive play. The jump is worth it when the original splines are worn or the sensor ring is damaged. Not for rear axle positions or non-driven front applications.

Highlights

  • Precision fit for RAM 1500 2012-2019 models
  • 33 splines and 55 ABS teeth ensure correct sensor operation
  • 5-lug M14-1.50 pattern matches OE 515151 specification
  • 47 in harness reaches connector without splicing
  • Driven hub with 7.20 in diameter supports factory load rating

Specifications

ColorBlack

Questions about this item

How much heat or noise does the Moog front wheel hub generate during daily driving?

As a sealed mechanical bearing, it produces no electrical noise and negligible heat under normal operation; any noticeable growl or excess warmth indicates wear or incorrect torque.

What existing hardware must be on the truck for this hub to bolt on and the ABS to function?

The hub requires a 5-lug rotor with M14×1.50 studs, a 3.54 in pilot diameter, and the factory 55-tooth ABS tone ring to match the 33.47 in wiring harness.

Will the 33-spline driven hub engage correctly with the original half-shaft on a 2012-2019 Ram 1500?

Yes — the 33-spline count matches the OE half-shaft on both 2WD and 4WD models listed, so the factory axle nut and washer can be reused at the specified torque.
