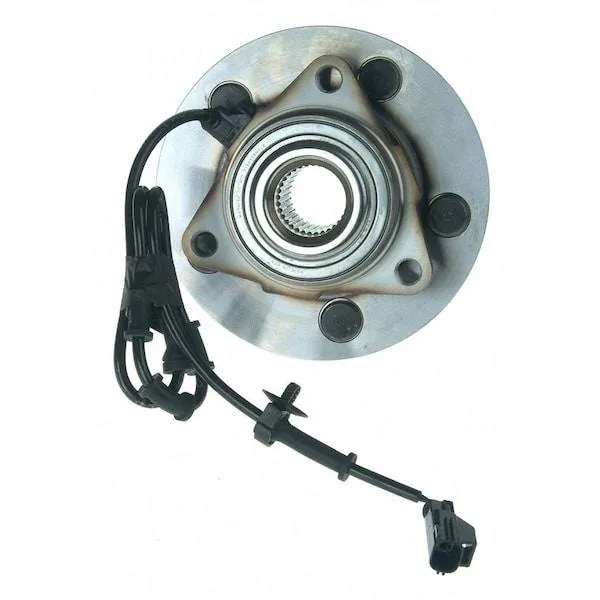

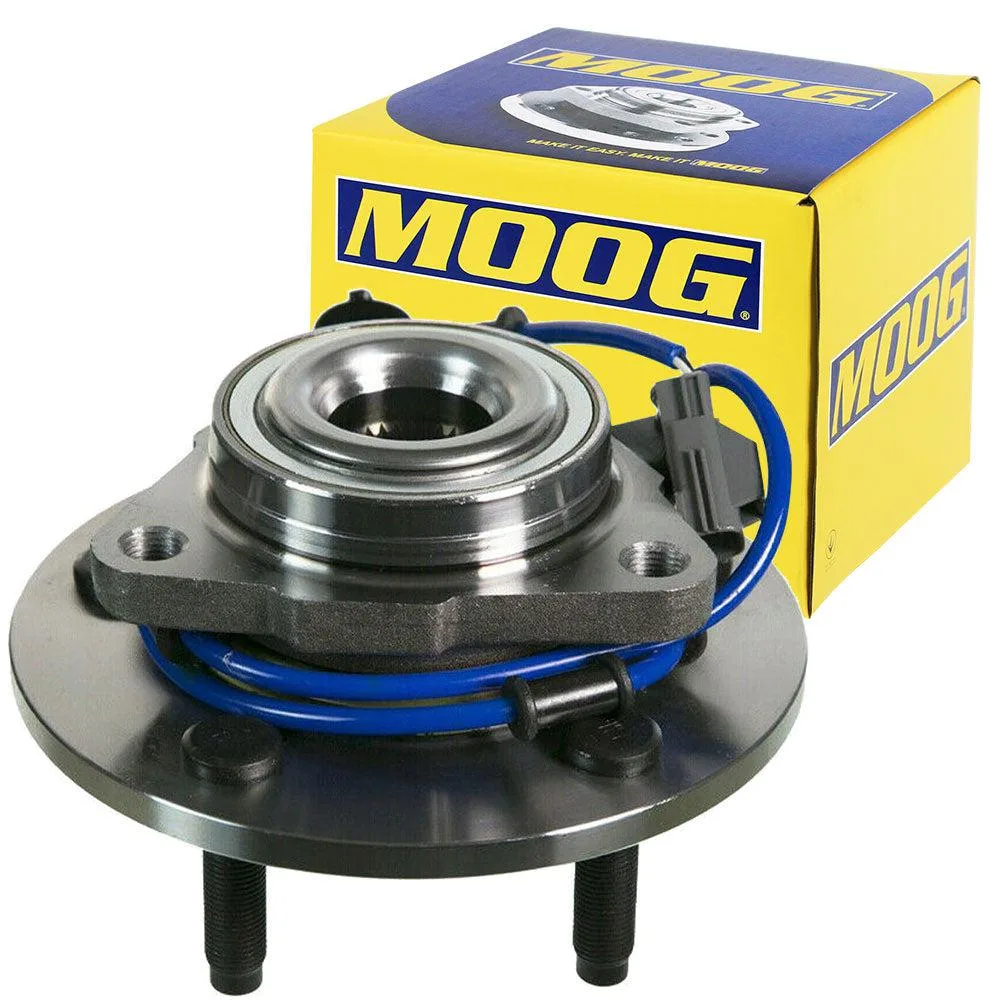

Black steel front wheel hub assembly with five lug bolts and ABS sensor wiring

Moog

Moog Front Wheel Bearing Hub Assembly 5-Lug for Dodge Ram 1500 2002-2007

SKU CH-8XVK-X72RY

Direct-replacement front wheel bearing hub with ABS sensor, wiring harness and five-lug flange for 2002-2005 Dodge Ram 1500 2WD and 4WD models

  • ColorBlack
  • Direct replacement fits 2002–2005 Ram 1500 2WD and 4WD models
  • Integrated ABS sensor with 55-tooth tone ring restores anti-lock function
  • Pre-assembled hub unit with 33-spline driven flange cuts installation time
  • 65-inch wiring harness and round connector match factory routing exactly
  • Tapered roller bearing design handles 1500-series front-wheel loads reliably

Front wheel hub for 2002-2005 Ram 1500

This Moog front wheel bearing hub assembly fits 2002 through 2005 Dodge Ram 1500 trucks in both two-wheel and four-wheel drive configurations. It serves the left or right front position on half-ton models. The unit includes the ABS sensor and wiring harness for direct replacement.

Bolt-on installation with three knuckle bolts

Installation requires removing the wheel and tyre before unbolting the old hub from the steering knuckle using three mounting bolts. The included wiring harness measures 34.65 inches and uses a round connector that plugs into the existing ABS circuit. Corroded bolts or a seized hub in the knuckle are the most common difficulties.

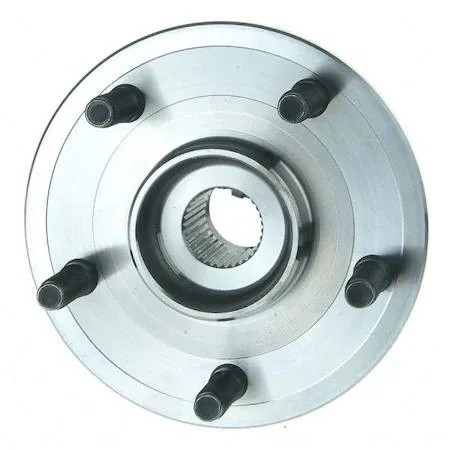

33-spline driven hub matches factory axle

The hub carries 33 splines and is designed for driven front axles on the specified Ram 1500 models. A different spline count or a non-driven hub will not engage the axle shaft correctly. Verify the spline count before ordering.

Highlights

  • Direct replacement fits 2002–2005 Ram 1500 2WD and 4WD models
  • Integrated ABS sensor with 55-tooth tone ring restores anti-lock function
  • Pre-assembled hub unit with 33-spline driven flange cuts installation time
  • 65-inch wiring harness and round connector match factory routing exactly
  • Tapered roller bearing design handles 1500-series front-wheel loads reliably

Specifications

ColorBlack

Questions about this item

How can I verify the hub assembly is functioning correctly after installation?

Confirm the ABS warning light remains off and test for smooth steering without vibration or pulling during braking.

What components are included and what must be purchased separately?

The assembly includes the hub with integrated ABS sensor, wiring harness (34.65 Inch), 5 lug bolts (9/16-18 Inch), 5 flange bolts (M14-1.50), and 3 knuckle mounting bolts. Brake rotor and wheel are not included.

Which version should I select for a 2004 Dodge Ram 1500 4WD?

This single assembly fits both 2WD and 4WD models for 2002-2005 Dodge Ram 1500; choose based on driver or passenger side requirement.
