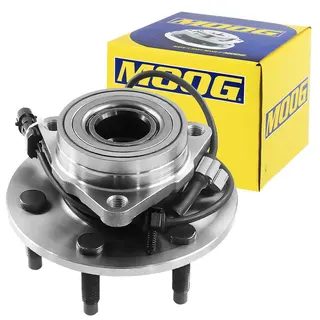

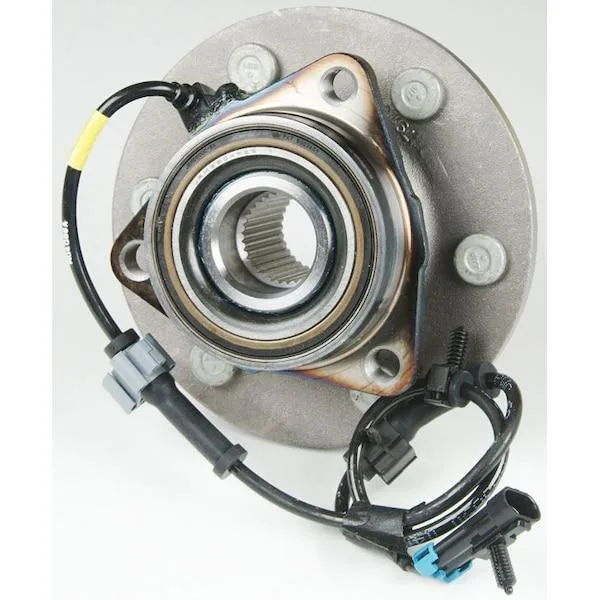

Black front wheel bearing hub assembly with ABS sensor and wiring harness, triangular three-bolt flange, six lug bolts

Moog

Moog Front Wheel Bearing Hub Assembly 1500 4WD accessories - wheel

SKU CH-5KVH-8BKXM

Front wheel hub assembly with ABS sensor and wiring harness fits 1999-2013 GM 1500-series 4WD trucks and SUVs

  • ColorBlack
  • Fits GMC Savana 1500 2003-14 and Yukon 2000-06
  • ABS sensor and wiring harness included for direct replacement
  • 4WD/AWD 4x4 models only with 6 lug bolts
  • 3-bolt triangular flange matches OE mounting pattern
  • Replaces multiple OE part numbers including 19209040 and 15233113

Front Wheel Bearing Hub Assembly for 4WD 1500 Models

This Moog hub assembly fits the front left or right position on four-wheel-drive 1500-series trucks and SUVs from 1999 through 2013. It includes the ABS sensor and wiring harness so the anti-lock braking system functions immediately after installation. The unit uses a three-bolt triangular flange and six lug bolts. It is sold new and ready for direct replacement.

Installation Notes and Common Issues

The three-bolt flange pattern allows straightforward bolt-on mounting using standard hand tools. Because the ABS sensor and harness are pre-installed, no separate wiring work is required. A frequent problem is corrosion on the steering knuckle bore that can make the old hub difficult to remove without a press or slide hammer. Another issue is cross-threading the lug bolts if the wheel is tightened before the hub seats fully.

Behaviour Under Sustained Load

The sealed bearing design maintains consistent rolling resistance during extended highway driving or heavy towing typical of 1500 applications. Heat generated during long descents or continuous stop-and-go traffic dissipates through the hub body without affecting the integrated ABS sensor signal. The assembly is engineered for the weight and torque demands of four-wheel-drive 1500 platforms rather than lighter two-wheel-drive variants.

Highlights

  • Fits GMC Savana 1500 2003-14 and Yukon 2000-06
  • ABS sensor and wiring harness included for direct replacement
  • 4WD/AWD 4x4 models only with 6 lug bolts
  • 3-bolt triangular flange matches OE mounting pattern
  • Replaces multiple OE part numbers including 19209040 and 15233113

Specifications

ColorBlack

Questions about this item

How can I confirm the ABS sensor is functioning correctly after installing this hub assembly?

After fitting the assembly, start the vehicle and verify the ABS warning light on the dashboard turns off and stays off; a scan tool should show live wheel-speed data from the left or right front sensor without fault codes.

Does the package include the ABS sensor and wiring harness, or do I need to buy them separately?

The hub assembly comes with the ABS sensor and wiring harness already installed, so no additional ABS components are required for a complete front-wheel replacement.

My truck is a 2006 GMC Sierra 1500 4WD — is this the correct hub assembly for that application?

Yes, the part fits 2006 GMC Sierra 1500 4WD models with six lug bolts and the three-bolt triangular flange; it also covers 1999-2006 Yukon, Silverado 1500, Suburban 1500, Tahoe and Savana 1500 4WD variants.
