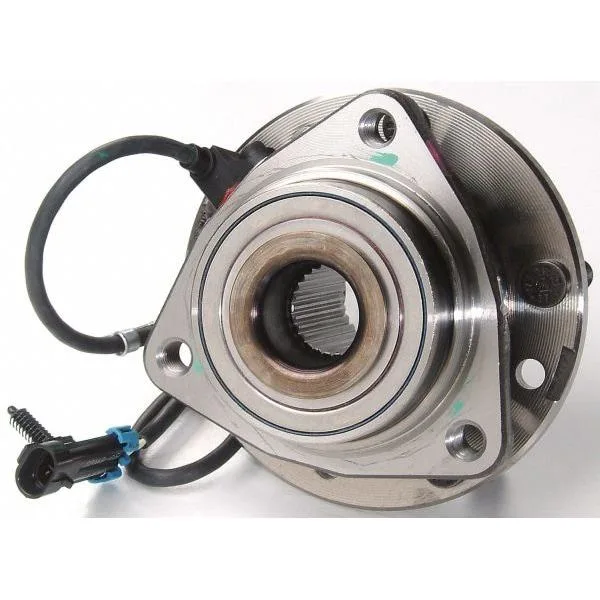

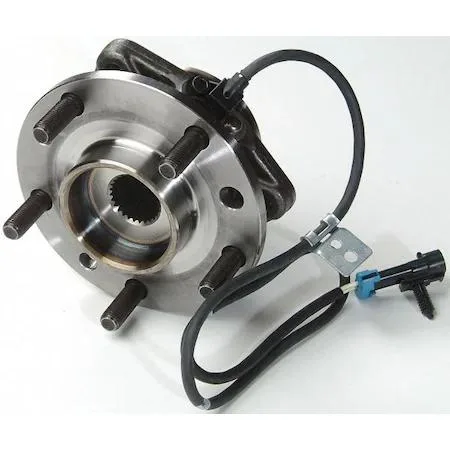

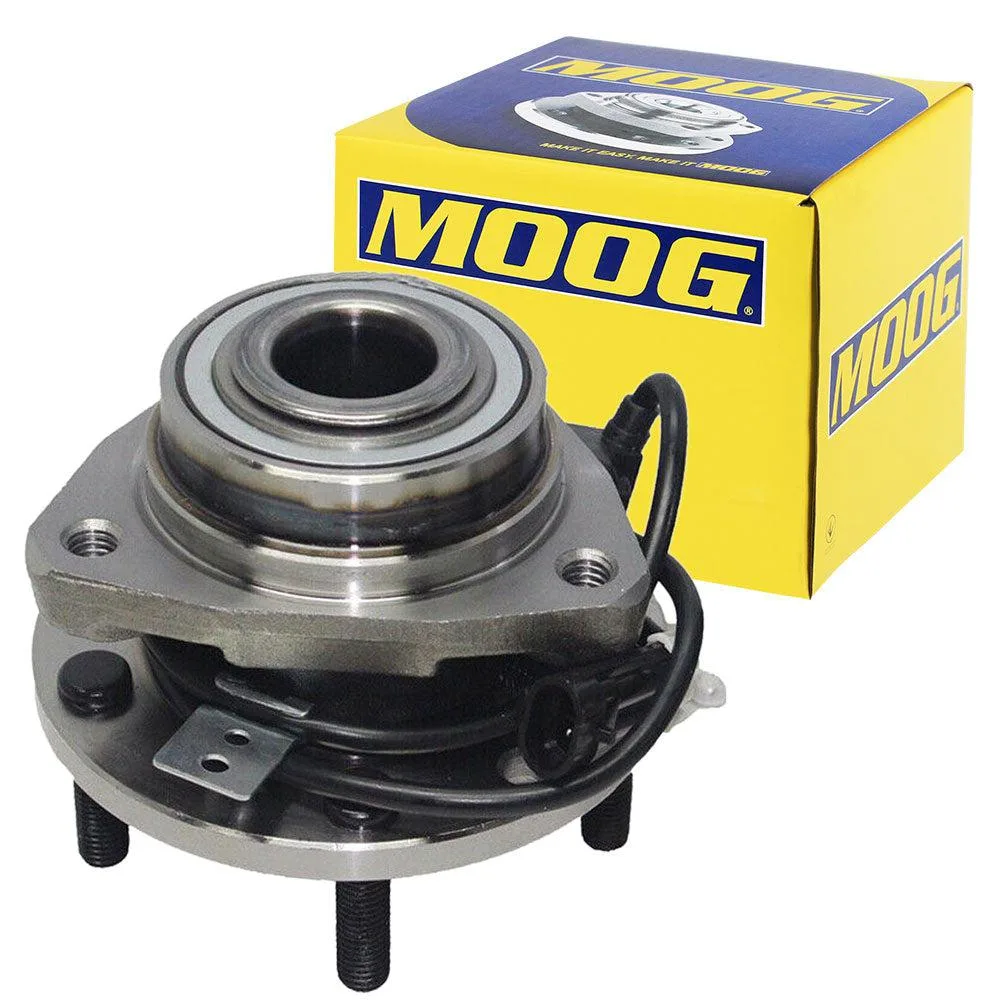

Black steel front wheel bearing hub with triangular flange, ABS sensor and wiring harness

Moog

Moog Front Wheel Bearing Hub 4WD 97-05 accessories - wheel

SKU CH-V02R-GZG74

Front 4WD wheel bearing hub with ABS sensor, 27 splines and five M12 lug bolts for 1997–2005 Chevrolet, GMC, Isuzu and Oldsmobile models

  • ColorBlack
  • Direct replacement fits 1997-2005 Chevrolet Blazer S10 GMC Jimmy Sonoma
  • ABS sensor with oval connector and 32.25 inch harness included for plug-in install
  • 27-spline driven hub matches 4WD front axle for torque transfer
  • Three M12-1.75 mounting bolts secure hub to knuckle
  • Five M12-1.50 lug bolts included for wheel attachment

Front Wheel Bearing Hub for 4WD 97-05

The Moog front wheel bearing hub fits four-wheel-drive Chevrolet S10 Blazer, GMC Sonoma, Jimmy, Oldsmobile Bravada and Isuzu Hombre models from 1997 to 2005. It is a driven assembly with 27 splines and a ball bearing design built from steel. An ABS sensor and a 32.25-inch wiring harness with an oval connector are included for direct installation.

Suits drivers replacing a worn front hub on listed

This unit bolts to the knuckle with three M12-1.75 bolts and provides five M12-1.50 lug bolts for the wheel. The triangular flange has a 5.68-inch diameter, a 1.85-inch offset and a 3.61-inch pilot diameter. It will not fit two-wheel-drive variants or vehicles outside the 1997-2005 application range.

Sustained-load behaviour of the ball-bearing hub

Under continuous cornering and braking forces the sealed ball bearing maintains rolling contact while the steel housing resists deflection. The integrated ABS ring and sensor deliver consistent wheel-speed signals during extended driving cycles. Heat generated by prolonged load is dissipated through the steel body without external cooling provisions.

Highlights

  • Direct replacement fits 1997-2005 Chevrolet Blazer S10 GMC Jimmy Sonoma
  • ABS sensor with oval connector and 32.25 inch harness included for plug-in install
  • 27-spline driven hub matches 4WD front axle for torque transfer
  • Three M12-1.75 mounting bolts secure hub to knuckle
  • Five M12-1.50 lug bolts included for wheel attachment

Specifications

ColorBlack

Questions about this item

What lug bolt thread size does this Moog hub require for the wheel nuts?

The hub uses M12-1.50 lug bolts, so the wheel nuts must match that thread pitch.

Will the three-bolt knuckle pattern on this hub match the steering knuckle on my 1998 GMC Sonoma 4WD?

Yes, the hub has three mounting bolts to the knuckle, which is the factory pattern for those Sonoma 4WD models.

How can I verify the ABS sensor is functioning after installing this hub?

The oval ABS connector and 32.25-inch harness plug into the vehicle loom; the ABS warning light should stay off and the speedometer will read correctly when the sensor ring passes the pickup.
