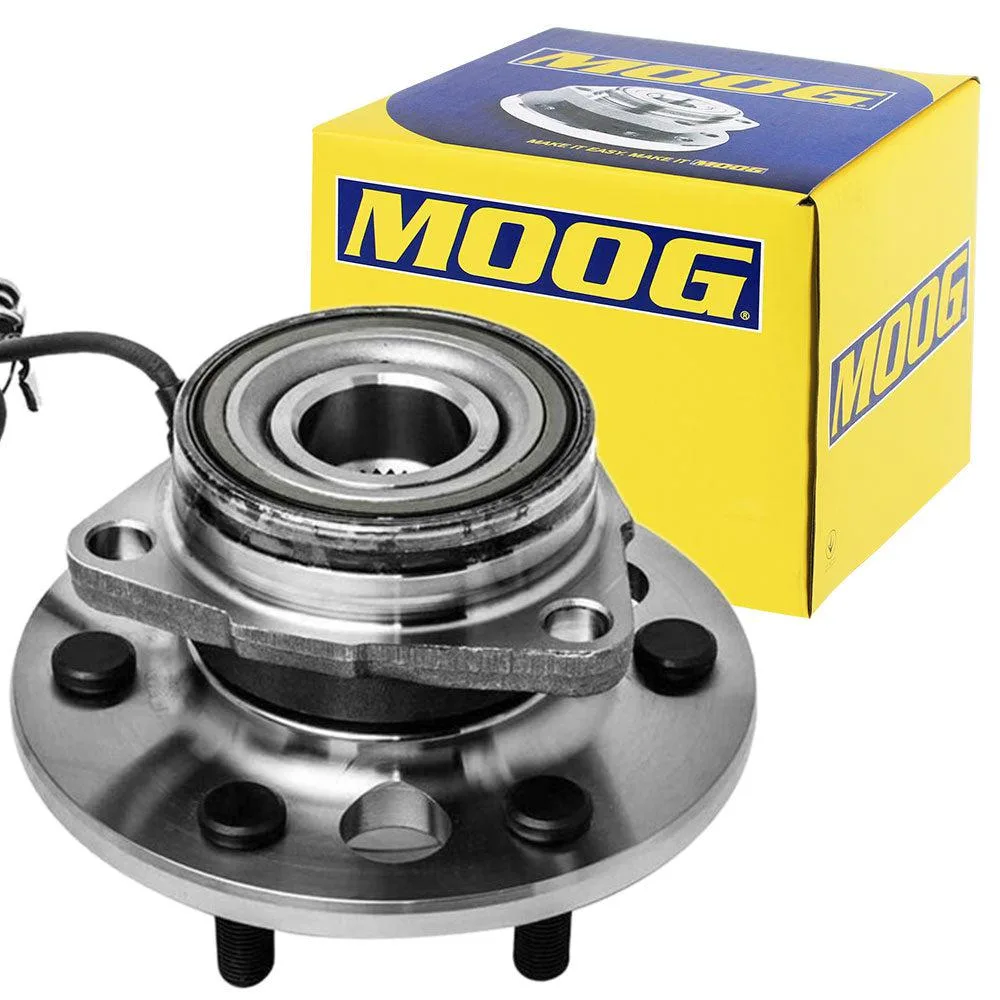

Black steel front wheel bearing hub assembly with ABS sensor and wiring harness

Moog

Moog Front Wheel Bearing Hub 4WD 1995-2000 accessories - wheel

SKU CH-SVAV-TNA9V

Front 4WD wheel bearing hub fits 1995-2000 Chevy and GMC trucks with ABS sensor, wiring harness, 33 splines and 55-tooth tone ring

  • ColorBlack
  • Ready for 1995-2000 Chevy and GMC 4WD trucks
  • ABS sensor and wiring harness included for direct install
  • Driven steel hub with 33 splines and 55-tooth ring
  • Six lug bolts and three mounting bolts supplied
  • Fits driver or passenger front position on K1500, K2500, Suburban, Tahoe, Yukon

Front Wheel Hub for 1995-2000 4WD Trucks

This Moog front wheel bearing hub fits Chevrolet and GMC 1500 and 2500 series trucks plus Yukon, Tahoe, Suburban and Escalade models from 1995 through 2000. It is a driven front hub assembly designed for four-wheel-drive applications on either the driver or passenger side.

Sustained load performance

The hub uses a steel body with 33 splines and a 55-tooth ABS sensor ring to maintain consistent torque transfer and wheel-speed signalling under continuous driving loads. An integrated ABS sensor and wiring harness are included so the anti-lock system receives uninterrupted data during extended operation.

Build quality and mounting

Three mounting bolts secure the hub to the knuckle while six lug bolts fasten the wheel to a flange measuring 7.161 inches in diameter with a 2.232-inch offset. The centrebore is 5.5 inches, overall hub diameter is 7.125 inches and total height is 4.622 inches, with a flange bolt size of 1.354 inches.

Highlights

  • Ready for 1995-2000 Chevy and GMC 4WD trucks
  • ABS sensor and wiring harness included for direct install
  • Driven steel hub with 33 splines and 55-tooth ring
  • Six lug bolts and three mounting bolts supplied
  • Fits driver or passenger front position on K1500, K2500, Suburban, Tahoe, Yukon

Specifications

ColorBlack

Questions about this item

Does the Moog front wheel bearing hub run hot or draw extra power during all-day driving?

This is a passive steel hub assembly with no electrical load or heat source of its own; it simply rotates with the driven front wheel on 4WD K1500, K2500, Suburban, Tahoe and Yukon models from 1995 to 2000.

What existing parts must the vehicle already have for this hub to bolt on and function?

The truck needs a front steering knuckle drilled for the 3 mounting bolts, a 33-spline axle shaft, a 6-lug rotor or drum pattern, and the original ABS wiring harness to plug into the included 55-tooth sensor ring.

Will the 33-spline, 6-bolt hub work with older 1995–1998 front axles and rotors I plan to keep?

Yes — the 33-spline count, 6 lug bolts, 5.5 in centrebore, 7.125 in hub diameter and 3-bolt knuckle pattern match the factory specs on 1995–1998 K1500, K2500, Suburban, Tahoe and Yukon 4WD front ends.
