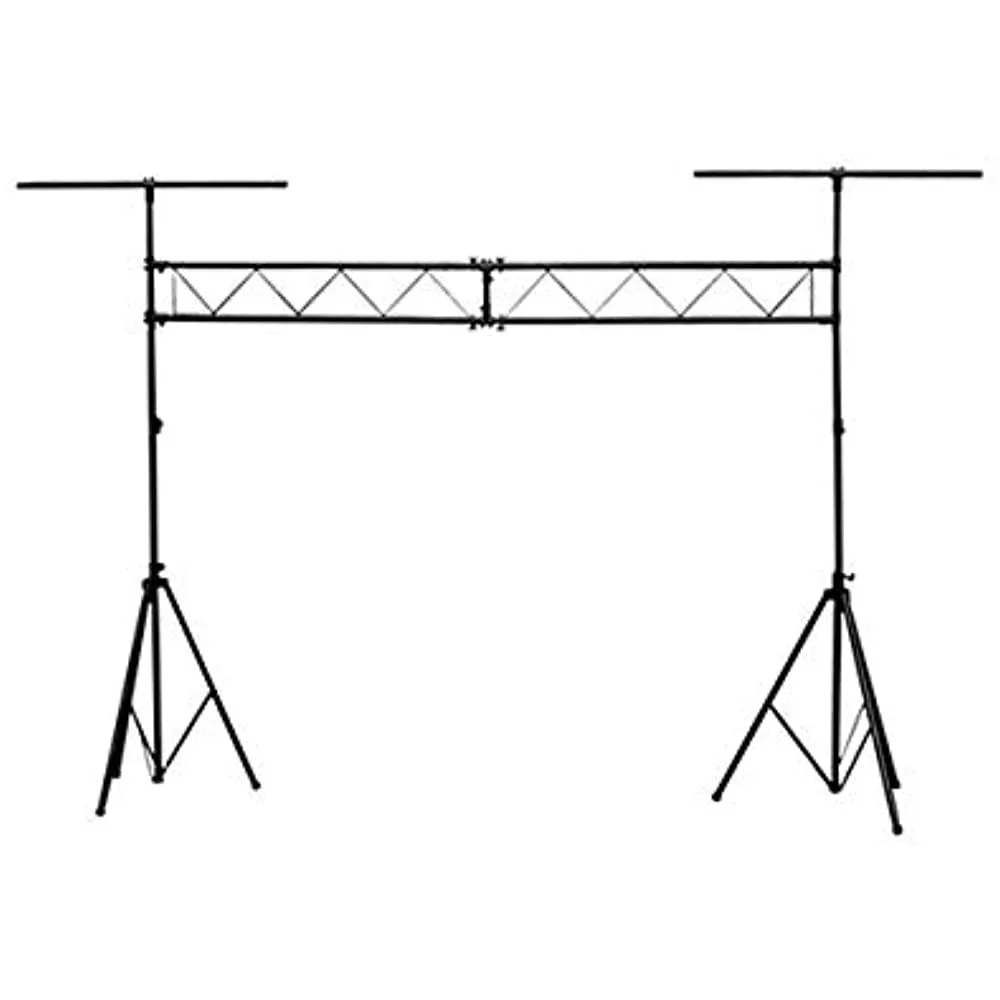

Two tripods extend to 12.5 ft with 4 ft T-bars and two 5 ft trusses spanning 10 ft, 36 mounting points, black steel finish

Monoprice Inc.

Monoprice Lighting Stand System With Truss 220 lbs 12.5 ft 4 ft T-bars Stage Right Series

SKU CH-E709-BFQBJ

Lightweight 53 lb truss system spans 10 ft with two 4 ft T-bars, extends to 12.5 ft and supports 220 lbs

  • TypeLive Sound & Stage Systems
  • Supports up to 220 lbs for heavy lighting rigs
  • Extends to 12.5 ft height with dual locking pins
  • Spans 10 ft wide using two 5 ft truss sections
  • Offers 36 mounting locations across T-bars and trusses
  • Weighs 53 lbs with tripod bases adjustable to 3.5 ft

Lighting Stand System for Mobile Staging

This Monoprice trussing system provides a portable structure for lighting, speakers or a projector screen. It suits mobile DJs, bands and rental companies that need a freestanding rig they can transport and assemble without permanent installation.

220 lbs Maximum Load Capacity

The complete frame is rated for 220 lbs of equipment distributed across the truss span. Exceeding this limit risks structural failure, so the weight of every fixture, speaker and cable run must stay within the stated maximum.

53 lbs System Weight with 12.5 ft Extension

The full assembly weighs 53 lbs and the tripods telescope to 12.5 ft using two locking grooved pins. Two five-foot trusses lock together for a 10 ft span, while the tripod bases spread up to 3.5 ft wide for stability under sustained load.

Highlights

  • Supports up to 220 lbs for heavy lighting rigs
  • Extends to 12.5 ft height with dual locking pins
  • Spans 10 ft wide using two 5 ft truss sections
  • Offers 36 mounting locations across T-bars and trusses
  • Weighs 53 lbs with tripod bases adjustable to 3.5 ft

Specifications

BrandMonoprice
TypeLive Sound & Stage Systems

Questions about this item

What does the 220 lbs maximum load mean when the stands are fully extended?

The 220 lbs rating applies across the full 12.5 ft height and 10 ft truss span, so you can hang fixtures or a projector screen at full extension without derating.

How do the locking grooved pins and truss connections limit setup options?

Two locking grooved pins per tripod secure the telescoping height, while the two five-foot trusses lock together for a single 10 ft span or can be used separately for shorter runs.

What floor space and ceiling clearance does the 3.5 ft base and 12.5 ft height require?

Each tripod base adjusts up to 3.5 ft wide, and the system reaches 12.5 ft tall, so allow at least that much clearance plus room for the 4 ft T-bars.
