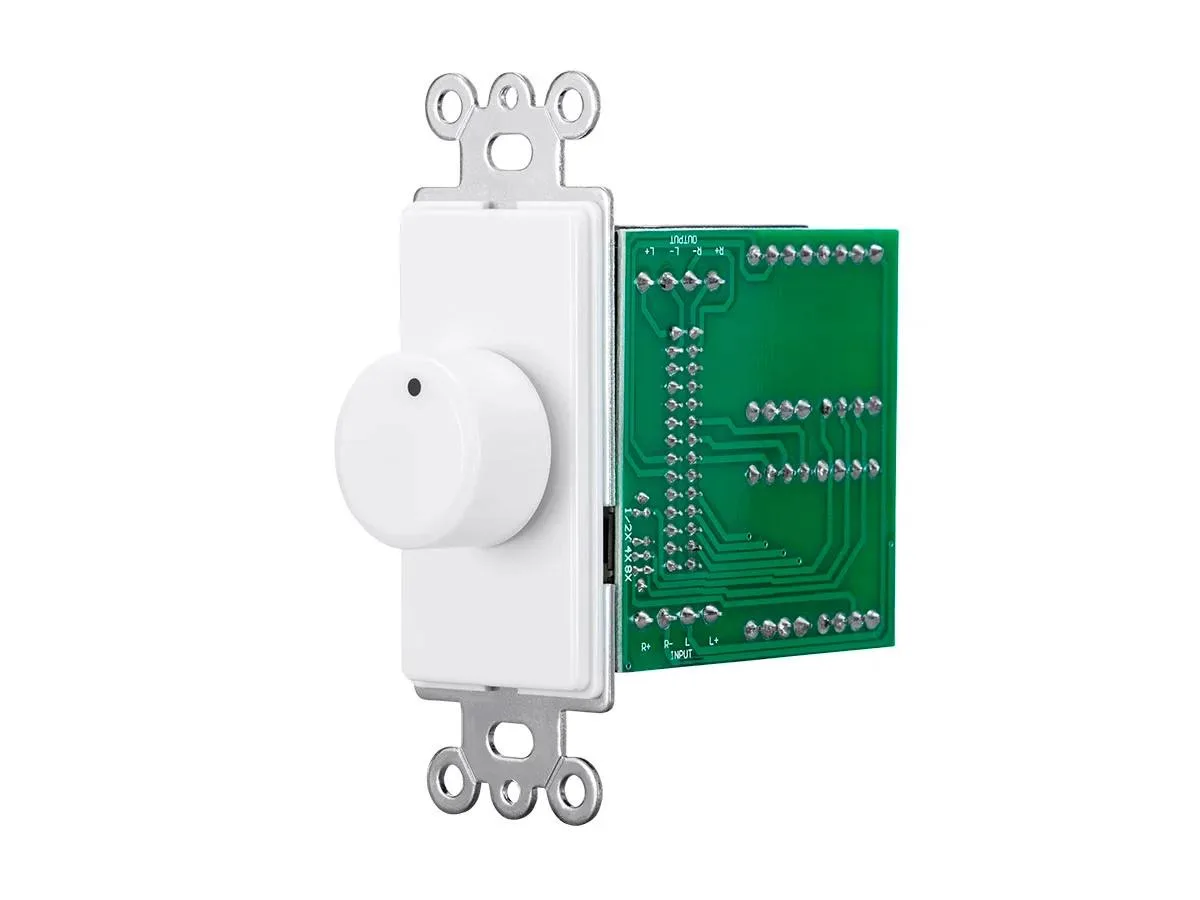

Monoprice 138172 100W Rotary Impedance Matching Speaker Volume Control with Color Kit

Impedance Matching Volume Control

The Monoprice 138172 is a rotary impedance matching speaker volume control designed for whole-home audio systems. It allows you to connect multiple speaker pairs to a single power amplifier or receiver safely. The unit adjusts the impedance of each connected pair to protect the amplifier from damage due to low impedance loads. It supports amplifiers with up to 100 watts of output power per channel.

Standard Single-Gang Installation

This volume control fits into standard single-gang low-voltage junction boxes or mounting brackets for in-wall placement. It integrates into existing electrical infrastructure without requiring specialised enclosures or oversized cutouts. The rotary knob provides local volume adjustment for the connected speaker zone. A color kit is included to match common decorator wall plate finishes.

Passive Operation and Thermal Profile

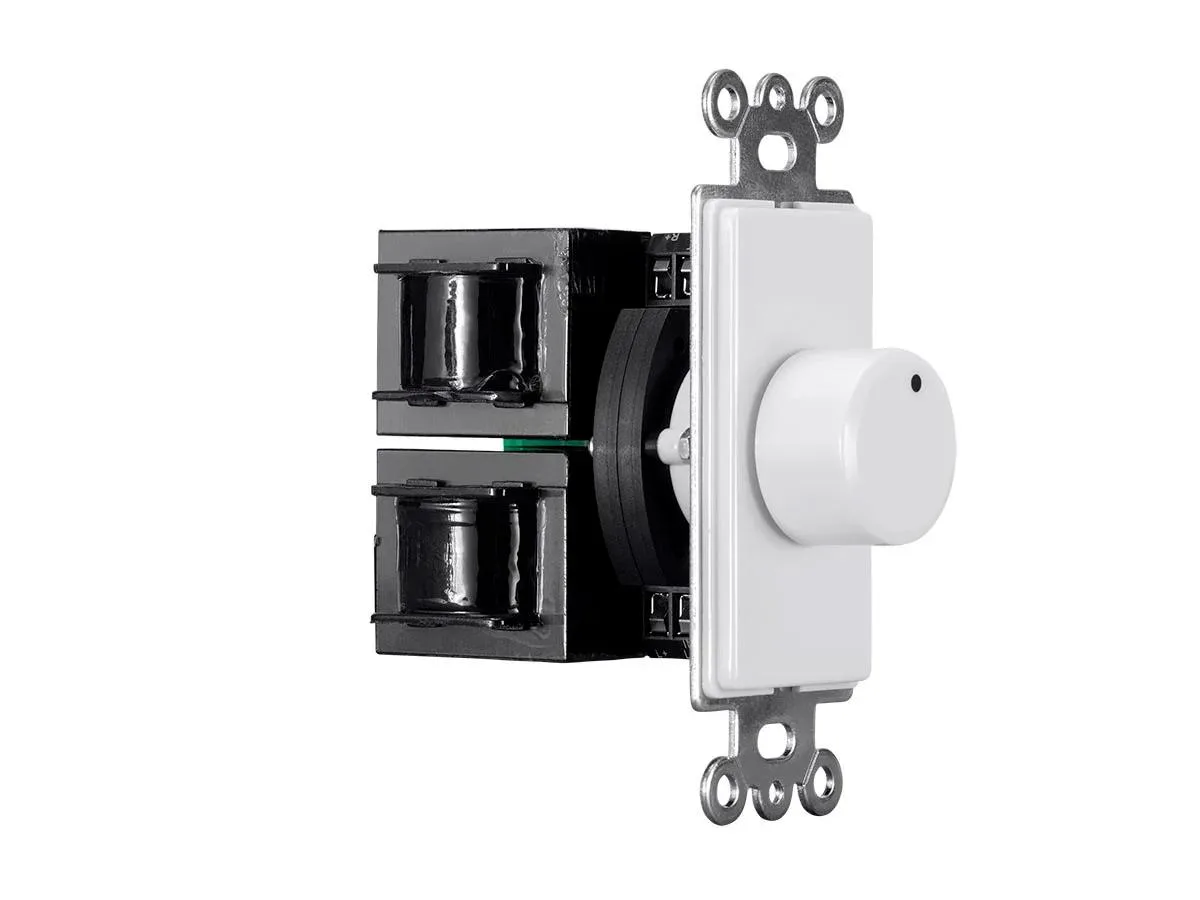

The device operates passively without external power, adding no active heat or noise to the installation. Impedance matching is handled by internal autoformer circuitry that presents a safe load to the amplifier at all volume settings. Insertion loss is minimal and typical for this class of passive volume control. The 1.18 lb weight reflects the robust transformer construction required for 100 watt power handling.
