Transparent 10mm 4-pin COB LED strip connectors with 10ft cable

MIWISE 10mm 4-Pin COB LED Strip Connector Kit 20+10PCS 10ft Cable Transparent IP30

SKU CH-Y7KZ-DNRM7

Solderless kit joins 10 mm 4-pin RGB COB strips with 20 strip-to-wire and 10 gapless connectors plus 10 ft of 22 AWG cable

  • ColorTransparent
  • Standards/CertificationsIP30
  • Solder-free connection speeds up RGB COB strip installs
  • 20 strip-to-wire plus 10 gapless I-shaped connectors included
  • 10 ft 22 AWG cable cuts to any length needed
  • Transparent housing shows pin alignment for reliable contact
  • IP30 rating suits dry indoor DIY lighting projects

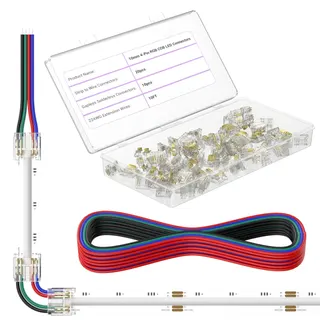

Kit Contents

This kit provides 20 strip-to-wire connectors, 10 gapless I-shaped connectors and a 10ft 22AWG extension cable for 10mm 4-pin RGB COB LED strips. It is designed for DIY installers who need solderless joints and flexible cable routing. Transparent housings let you verify pin alignment before locking the copper tabs. The components support 5V, 12V and 24V low-voltage lighting projects.

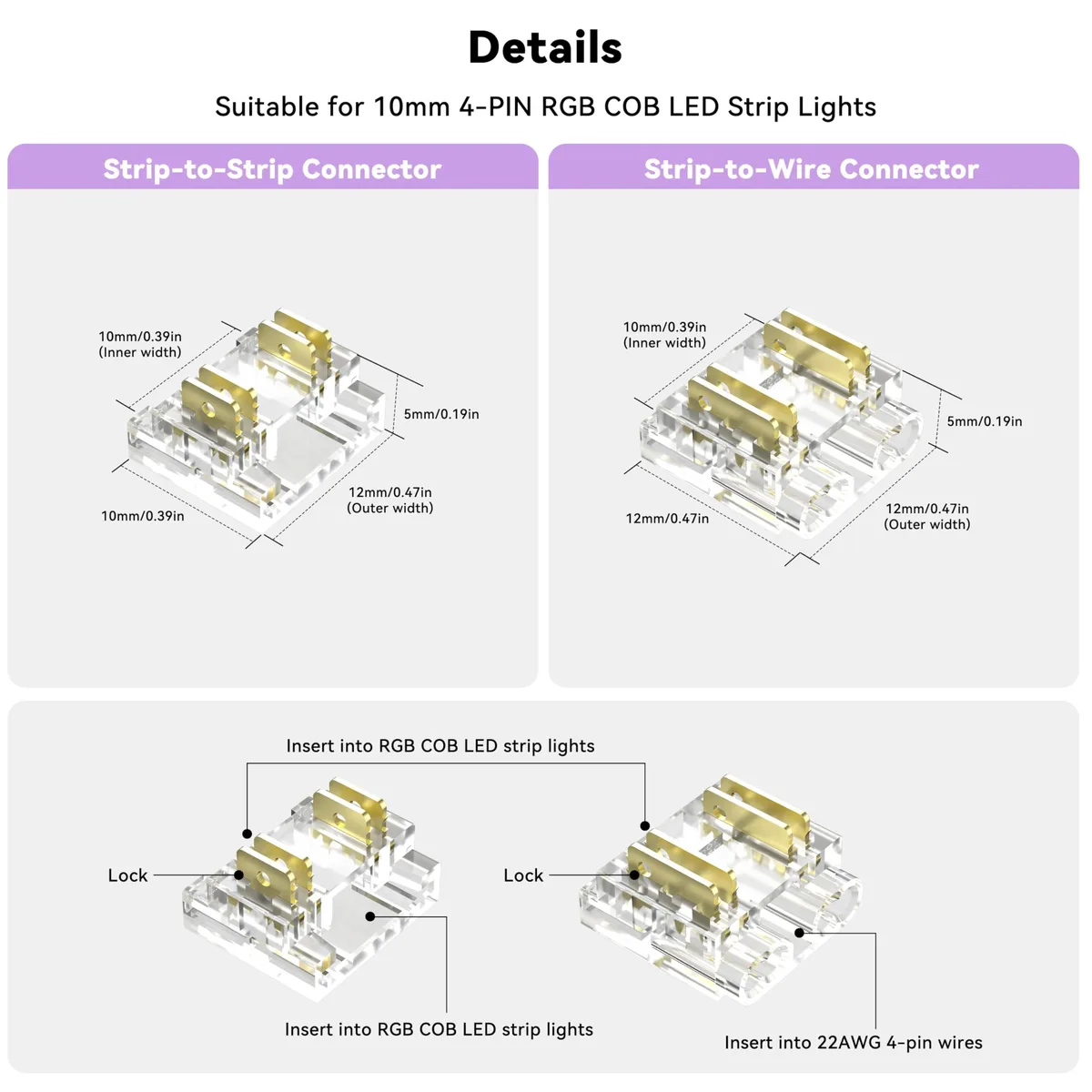

Build & Connectors

Each connector uses a press-fit copper piece that sits flush with the transparent housing once fully seated, giving a stable electrical path without solder. The 22AWG cable can be cut to any required length for custom runs between strip segments or power supplies. IP30 rating means the parts are suited to dry indoor locations only. No tools are needed beyond wire cutters for the cable.

Upgrade Path

The kit replaces soldering irons, heat-shrink tubing and makeshift jumper wires when joining or extending 10mm 4-pin COB RGB strips. It is not for 2-pin, 3-pin, 5-pin or 6-pin COB strips, nor for standard SMD 5050 or single-colour strips. Buyers needing waterproof connections or larger strip widths should look elsewhere.

Highlights

  • Solder-free connection speeds up RGB COB strip installs
  • 20 strip-to-wire plus 10 gapless I-shaped connectors included
  • 10 ft 22 AWG cable cuts to any length needed
  • Transparent housing shows pin alignment for reliable contact
  • IP30 rating suits dry indoor DIY lighting projects

Specifications

ColorTransparent
Standards/CertificationsIP30

Questions about this item

What is the IP30 rating on these connectors and what does it limit?

The IP30 rating means the connectors are protected against solid objects but not against water, so they must be used in dry indoor locations only.

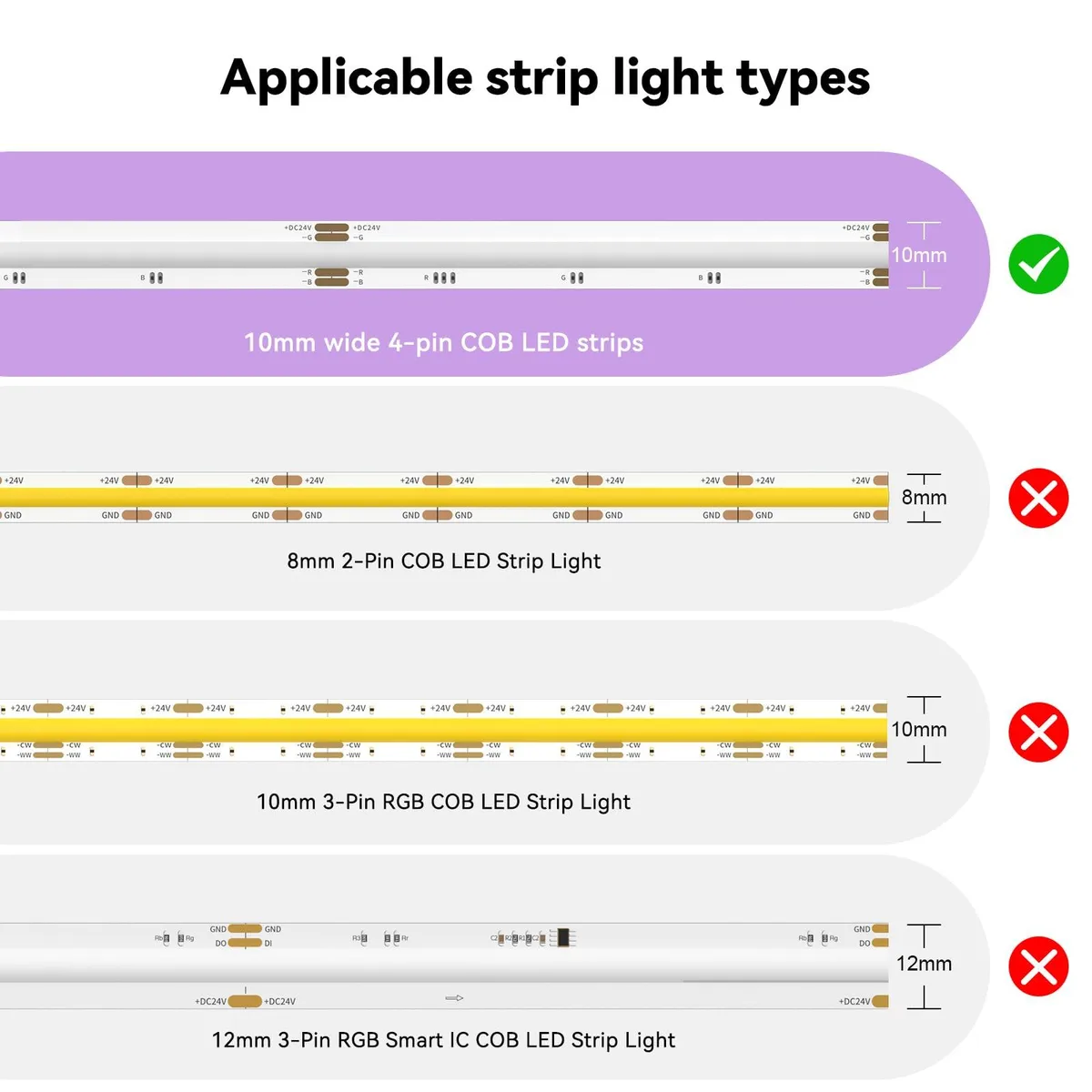

What strip width and pin count do the connectors in this kit fit?

The kit fits only 10 mm wide 4-pin RGB COB LED strip lights and is not compatible with other widths or pin counts.

How do you install the connectors without soldering and what step is often missed?

Align the strip contact points with the connector pins then press the copper piece down until it sits completely flush with the transparent housing; the connection will not be stable if the copper piece still bulges.
