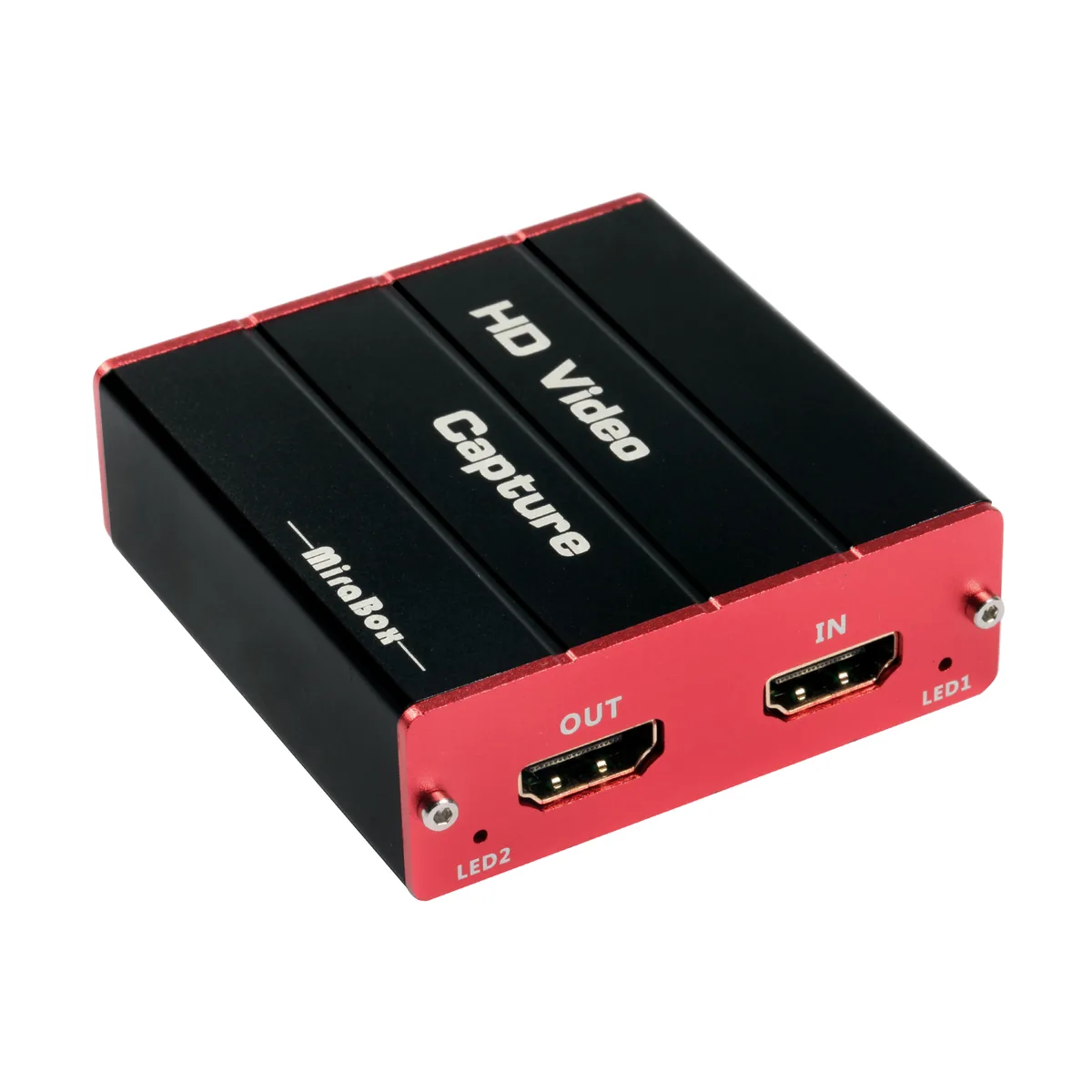

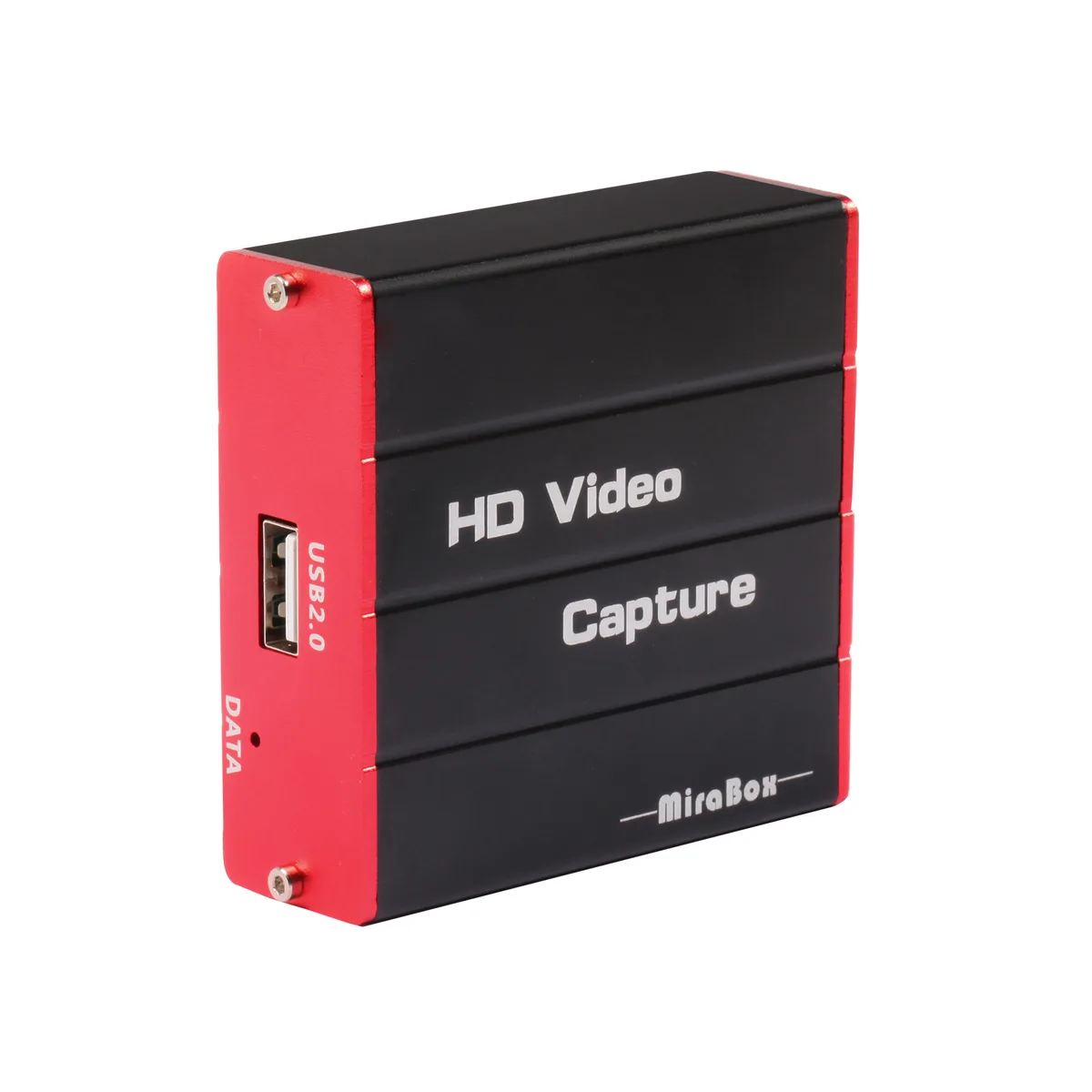

Compact aluminium capture box, 65 mm square, HDMI in and out, USB cable attached

MiraBox

MiraBox HSV320 1080p 60 Hz HDMI video capturing device

SKU CH-PRXA-BNQPC

Captures 1080p video at 60 Hz from HDMI sources with zero-latency loop-out for streaming and recording

  • InterfaceHDMI
  • 3D SupportYes
  • Wireless SupportNO
  • Network ProtocolUVC / UAC
  • CodecsYUV / RGB
  • Format1080P@60Hz
  • Captures 1080p at 60 fps for smooth recordings
  • HDMI loop-out delivers zero-latency pass-through to your display
  • Works with Windows, macOS and Linux without driver installs
  • Compatible with PS4, Xbox One, Wii U and other 1080p sources
  • Aluminium alloy shell dissipates heat in a compact 65 mm frame

Capture Resolution and Frame Rate

The MiraBox HSV320 captures 1080p video at 30 frames per second through its HDMI input. It is aimed at streamers and content creators who need a straightforward way to bring gameplay or camera footage into OBS or similar software on Windows, Mac or Linux.

Upgrade From Basic Capture

This device replaces older capture sticks that top out at 720p or 30 Hz pass-through. The jump is worth it when you need 1080p60 loop-out for a lag-free gaming monitor while recording at 1080p30 for the stream.

USB Bandwidth and HDCP Limits

The USB 2.0 connection caps capture bandwidth, so 1080p60 recording is not supported despite the 60 Hz loop-out. HDCP 1.4 protection on the input can block playback from some set-top boxes or newer console titles, and there is no on-board scaling or colour-space conversion beyond YUY2.

Highlights

  • Captures 1080p at 60 fps for smooth recordings
  • HDMI loop-out delivers zero-latency pass-through to your display
  • Works with Windows, macOS and Linux without driver installs
  • Compatible with PS4, Xbox One, Wii U and other 1080p sources
  • Aluminium alloy shell dissipates heat in a compact 65 mm frame

Specifications

BrandMiraBox
Series1080P HDMI to USB Capture Card
ModelHSV320
InterfaceHDMI
3D SupportYes
Wireless SupportNO
Network ProtocolUVC / UAC
CodecsYUV / RGB
Format1080P@60Hz
Resolution Support1080P
Camera ResolutionUp to 1080p Video
Video Sampling4:2:2 and 4:4:4
SDI ComplianceNO
Audio Sampling44.1khz and 48khz
ScalingNO
ColorYUY2
Copy ProtectionHDCP1.4
VideoUVC
AudioUAC
HDMI1 Input/1 Output
SDINO
Serial InterfaceNO
Network InterfaceNO
USB Port1
Memory Card SlotNO
DVINO
VGANO
ComponentUSB cable
S-VideoNO
Digital AduioNO
Analog AduioNO
Other ConnectorNO
SoftwareNo need to install software
Software ApplicationBuilt-in
LED IndicatorYES
DisplayNO
CompatibilityWii U,PS5, PS4, PS3, Xbox One, Xbox 360, Wii, Nintendo Switch, DVD, camera, ZOSI security camera, DSLR and set top box etc.
System RequirementsLinux, Mac OS, windows 7/8/10
Power Consumption2.5W
Power SupplyUSB
SpecificationHDMI loopout
FeatureSupport YUV and RGB
Mount Size7*7*3 cm
Dimensions13.5*10.5*3 cm
Weight127g
Package ContentHSV320 capture card*1 / USB cable*1 / User manual*1
OptionHDMI and USB - 1080p
Sports TeamArgentina
Sports LeagueAlsen

Questions about this item

Does the 65 mm square aluminium body need external power or does it draw everything from the USB port?

The capture card is powered entirely through its USB connection; the spec lists 22 W consumption but no separate power input is required.

When I plug the HDMI loop-out into my monitor, what settings avoid the 30 fps capture bottleneck?

The loop-out passes 1080p at 60 fps with zero latency, while the USB capture path records at 1080p 30 fps; set your streaming software to 30 fps to match the capture limit.

How often should I clean the aluminium vents to keep the 22 W draw from overheating the HSV320?

Wipe the vent slots with compressed air every few months; the aluminium shell acts as the heatsink, so unobstructed airflow is the only maintenance needed.
