Compact square mini PC with matte dark finish and front ports

minisforum

minisforum NAB6 Lite barebone mini PC Core i5-12600H 16GB 500GB

SKU CH-SZH1-AWJ97

Barebone mini PC with a 12-core Core i5-12600H, 16 GB DDR4, 500 GB SSD, quad 4K video outputs and dual 2.5 GbE LAN

  • CPU SocketFCBGA1744
  • CPU TypeIntel Core i5-12600H
  • CPU Cores12-Core(4P+8E)
  • Integrated GraphicsIntel Iris Xe Graphics eligible
  • Wireless LAN802.11ax
  • BluetoothBluetooth 5.2

Options NAB6 Lite(16+500)

  • 12-core i5-12600H reaches 4.5 GHz for responsive office and web work
  • Intel Iris Xe graphics drives four 4K@60Hz displays via two HDMI and two USB-C ports
  • Dual 2.5 Gbps Ethernet ports enable router, firewall or isolated network roles
  • 16 GB DDR4-3200 installed, expandable to 64 GB in dual-channel SO-DIMM slots
  • 500 GB PCIe 4.0 M.2 SSD plus 2.5-inch SATA bay for additional storage

Performance and use case

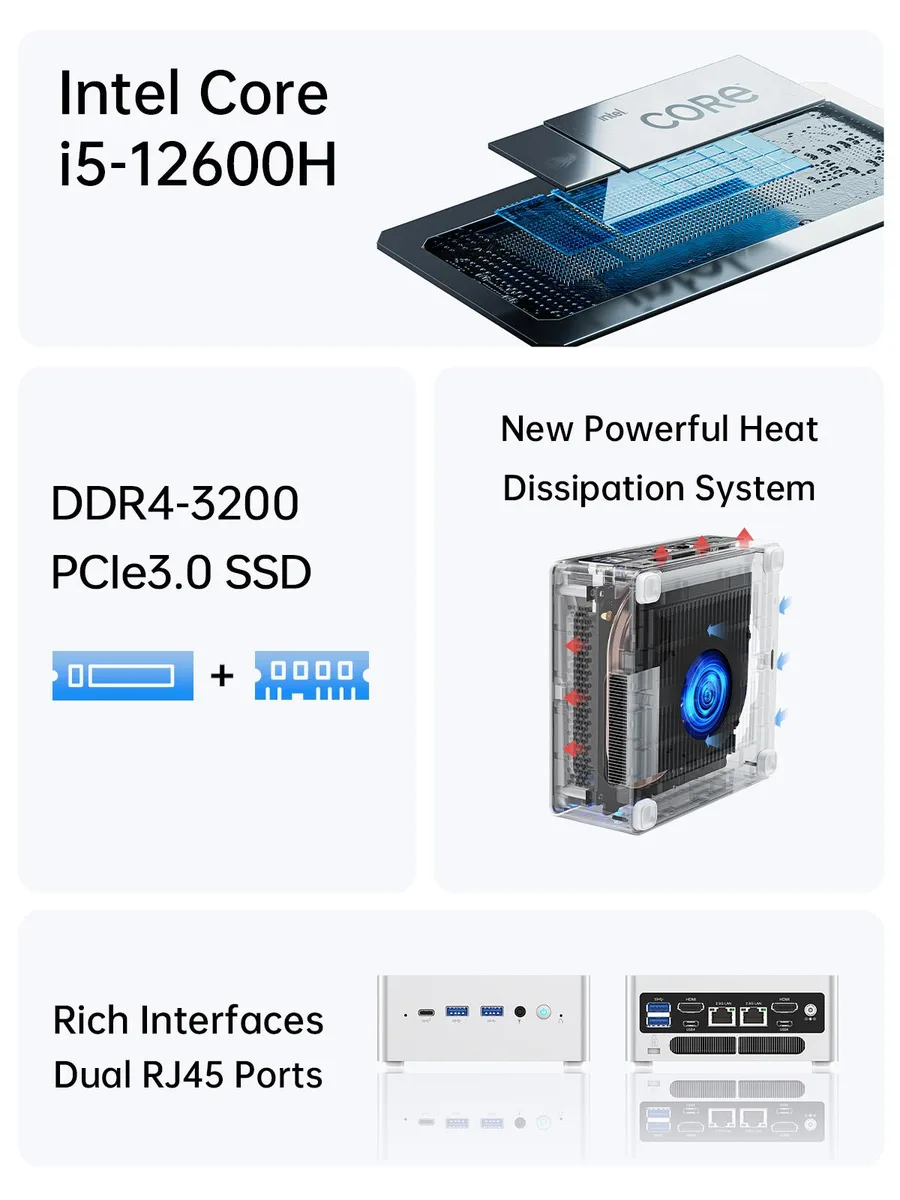

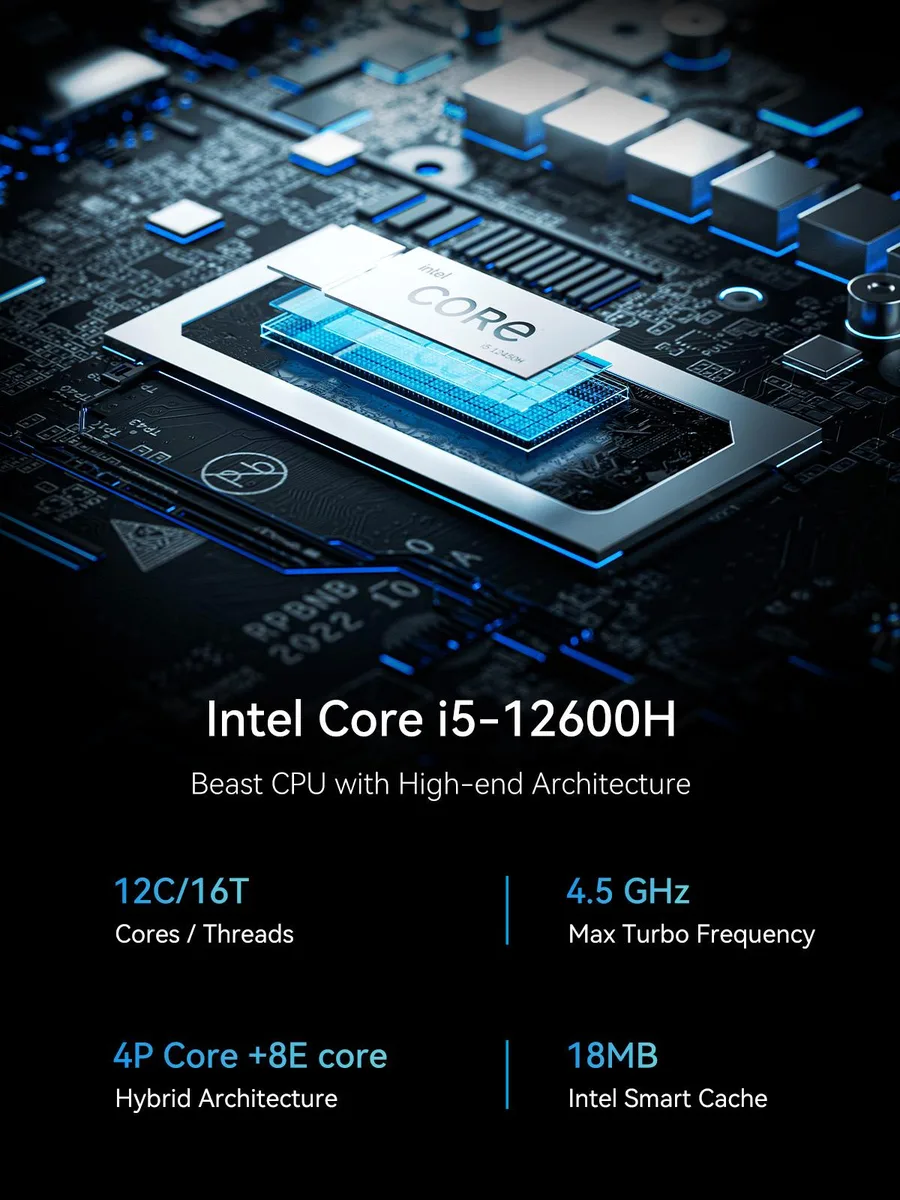

The minisforum NAB6 Lite is a barebone mini PC built around an Intel Core i5-12600H processor with 12 cores and 16 threads reaching 4.5 GHz. It ships with 16 GB of DDR4 3200 memory in dual-channel configuration and a 500 GB PCIe 4.0 M.2 2280 SSD. Integrated Intel Iris Xe graphics drives up to four 4K displays at 60 Hz through two HDMI and two USB-C ports. The system targets office productivity, media playback and multi-monitor setups in a compact 5.02 by 5 by 2.15 inch chassis weighing 1.25 lb.

Thermals noise and power

The unit relies on its internal cooling solution to manage the 12-core processor during sustained workloads. Dual 2.5 Gbps Ethernet ports and Wi-Fi 6E with Bluetooth 5.2 provide high-throughput wired and wireless connectivity without adding external adapters. The small footprint limits acoustic headroom, so fan activity will be audible under continuous multi-threaded load. Power is delivered through an external adapter, keeping the main body free of a bulky internal supply.

Expansion and bundled storage

Two SO-DIMM slots support up to 64 GB of DDR4 3200 memory for future upgrades. A vacant 2.5-inch SATA 3.0 bay accepts an additional hard drive or SSD for bulk storage. The pre-installed 500 GB PCIe 4.0 SSD handles the operating system and applications, while the M.2 2230 wireless module is also user-accessible. Buyers who need more than four display outputs or discrete graphics performance should consider a larger form factor.

Highlights

  • 12-core i5-12600H reaches 4.5 GHz for responsive office and web work
  • Intel Iris Xe graphics drives four 4K@60Hz displays via two HDMI and two USB-C ports
  • Dual 2.5 Gbps Ethernet ports enable router, firewall or isolated network roles
  • 16 GB DDR4-3200 installed, expandable to 64 GB in dual-channel SO-DIMM slots
  • 500 GB PCIe 4.0 M.2 SSD plus 2.5-inch SATA bay for additional storage

Specifications

BrandMINISFORUM
ModelDeskMini
CPU SocketFCBGA1744
CPU TypeIntel Core i5-12600H
CPU Cores12-Core(4P+8E)
Integrated GraphicsIntel Iris Xe Graphics eligible
Wireless LAN802.11ax
BluetoothBluetooth 5.2
WiFi GenerationWi-Fi 6E
HDMI2
RJ452
Memory slot2x DDR4 SO-DIMM Slot
Memory Type SupportedDDR4 3200
Max Memory Supported64GB
Dual Channel Memory SupportedYes
Memory installed16GB
Dimensions5.02x 5x 2.15 inch
Weight1.25 LB

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the 16GB DDR4 SO-DIMM modules and what step is often missed?

Insert each stick at an angle into the two SO-DIMM slots until the clips click; the step often missed is pressing down firmly until both side latches lock automatically.

What maintenance or replacement will the pre-installed 500GB M.2 2280 PCIe 4.0 SSD need later?

The SSD has no moving parts and requires no scheduled maintenance; replacement is only needed if capacity runs out or a SMART warning appears.

What limit appears first when the Core i5-12600H runs sustained loads at up to 4.5 GHz?

The integrated Intel Iris Xe graphics share system memory and thermal headroom, so GPU-intensive workloads hit thermal throttling before the CPU reaches its maximum turbo frequency.
