Black barebone mini PC motherboard with CPU installed

minisforum

minisforum DeskMini BD775i SE barebone mini PC Ryzen 7 7745HX

SKU CH-NGY5-7T3E0

Barebone mini PC with a Ryzen 7 7745HX, supporting up to 96 GB DDR5 and triple 8K video outputs

  • ColorBlack
  • CPU TypeAMD Ryzen 7 7745HX
  • CPU SocketFL1
  • CPU Cores8-Core
  • Memory installedNo Memory
  • Memory slot2

Options BD775i SE

  • Ryzen 7 7745HX delivers 8 Zen 4 cores up to 5.1 GHz for demanding workloads
  • Dual DDR5 SODIMM slots support up to 96 GB at 5200 MT/s
  • AMD Radeon 610M graphics drives triple display outputs including 8K at 60 Hz via USB-C
  • 5 Gbps LAN plus Wi-Fi 6E and Bluetooth give fast, flexible connectivity
  • Two PCIe 4.0 x4 M.2 slots and a PCIe 5.0 x16 slot allow high-speed storage and expansion

Compact barebone with Ryzen 7 7745HX

This barebone mini PC ships with an AMD Ryzen 7 7745HX processor already mounted in an FL1 socket. It has eight Zen 4 cores running at a 3.6 GHz base clock and a 5.1 GHz maximum boost. Integrated AMD Radeon 610M graphics drive three video outputs for multi-monitor work or light gaming without a discrete card.

Installing memory and storage is straightforward

Two DDR5 SODIMM slots accept up to 96 GB of dual-channel RAM at 5200 MT/s. Two PCIe 4.0 x4 M.2 2280 slots take solid-state drives. A separate M.2 2230 Key E slot is provided for the Wi-Fi 6E and Bluetooth module, which is not included. The board also exposes a PCIe 5.0 x16 slot for an add-in graphics card if you need more GPU power later.

Check your cooling and expansion plans

The CPU requires a compatible cooler that fits the FL1 mounting pattern; verify clearance before ordering. You must supply DDR5 SODIMM modules, M.2 SSDs and the Wi-Fi card yourself. Ensure your power supply can deliver enough current for the 7745HX and any discrete GPU you intend to install in the PCIe 5.0 x16 slot.

Highlights

  • Ryzen 7 7745HX delivers 8 Zen 4 cores up to 5.1 GHz for demanding workloads
  • Dual DDR5 SODIMM slots support up to 96 GB at 5200 MT/s
  • AMD Radeon 610M graphics drives triple display outputs including 8K at 60 Hz via USB-C
  • 5 Gbps LAN plus Wi-Fi 6E and Bluetooth give fast, flexible connectivity
  • Two PCIe 4.0 x4 M.2 slots and a PCIe 5.0 x16 slot allow high-speed storage and expansion

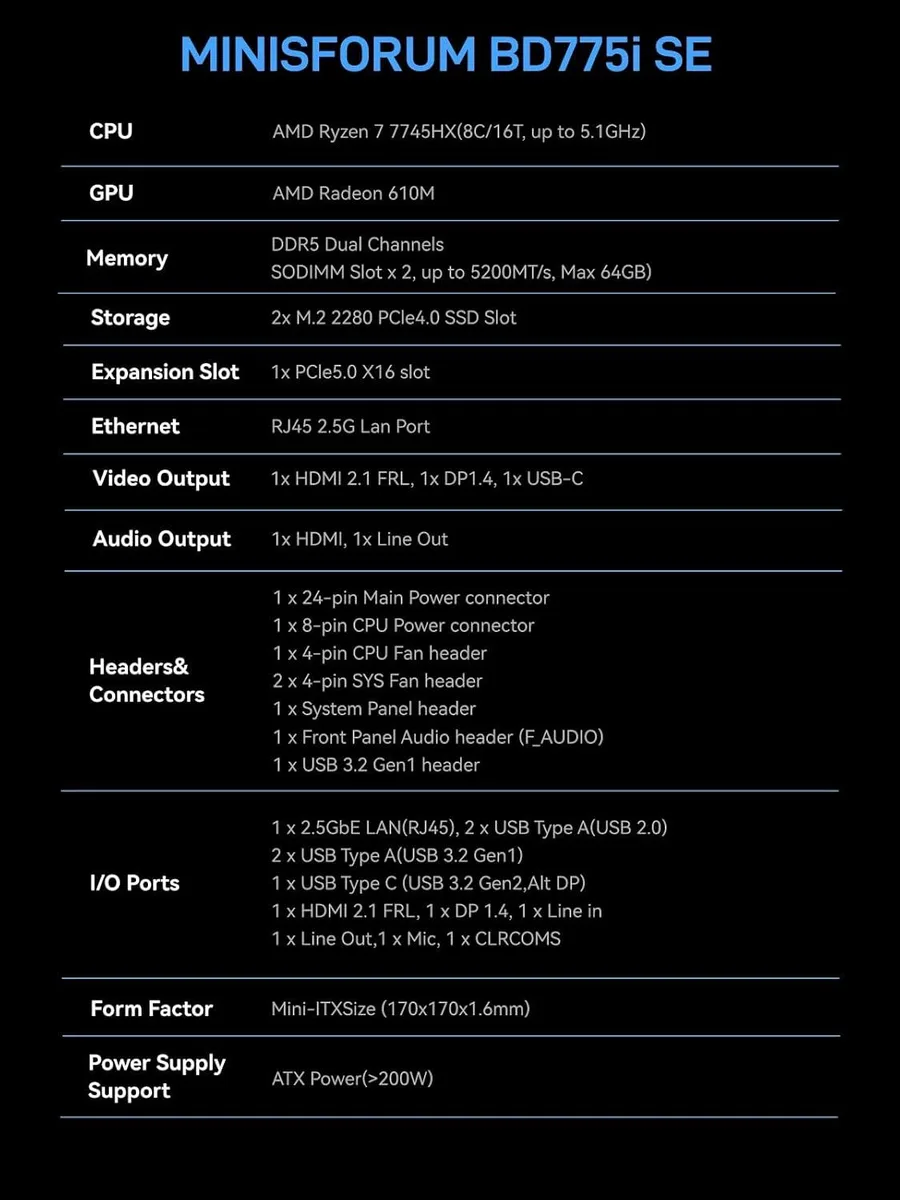

Specifications

BrandMINISFORUM
ModelDeskMini
ColorBlack
CPU TypeAMD Ryzen 7 7745HX
CPU SocketFL1
CPU Cores8-Core
Memory installedNo Memory
Memory slot2
Memory Type SupportedDDR5 5200
Max Memory Supported96GB
Dual Channel Memory SupportedYes
Other2x PCIe4.0x4
Integrated GraphicsAMD Radeon 610M
Max LAN Speed2.5Gbps
Wireless LAN802.11ax
WiFi GenerationWi-Fi 6E
BluetoothYes
Front USB2
HDMI1
DisplayPort1
Rear USB2
RJ451

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I verify the AMD Radeon 610M graphics are driving three displays at their rated resolutions?

Connect monitors to the HDMI, DisplayPort 1.4 and USB-C ports; the system should show 4K 60 Hz on HDMI and DP, and 8K 60 Hz on USB-C in display settings.

Which components are missing from the barebone unit and must be purchased separately?

The box contains only the motherboard with soldered Ryzen 7 7745HX CPU; you must add DDR5 5200 SODIMM modules, M.2 2280 PCIe 4.0 SSDs, a Wi-Fi 6E card for the M.2 2230 Key E slot, and an operating system.

Which memory configuration should I choose for the dual-channel DDR5 5200 controller?

Install two identical DDR5 5200 SODIMMs up to the 96 GB total limit; matching modules enable dual-channel operation and full 5200 MT/s speed.
