Milwaukee Valve

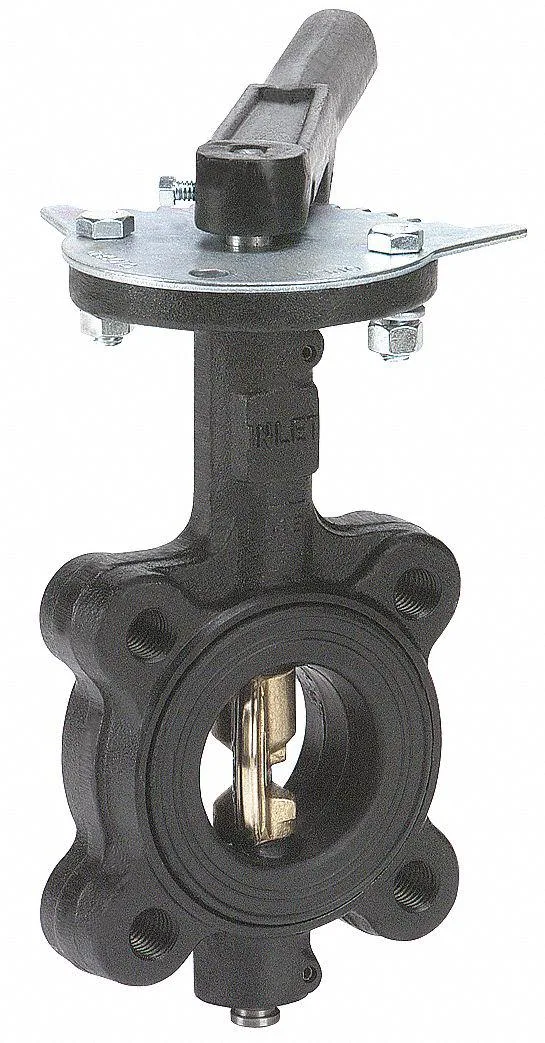

Milwaukee Valve ML234V Butterfly Valve Lug 3 Inch
Three-inch lug-style butterfly valve with ductile iron body, CF8M stainless steel disc and FKM liner rated for 200 psi water pressure from -20 to 300 degrees Fahrenheit
- TypeOther
- Lug-style ductile iron body simplifies pipeline installation
- FKM liner handles -20 to 300 °F fluid temperatures
- CF8M stainless steel disc resists corrosion in water service
- 200 psi pressure rating suits demanding commercial systems
- Four 5/8-11 bolt holes on 6 in circle match standard flanges
Product Identity
Milwaukee Valve ML234V is a lug-style butterfly valve built for 3-inch piping systems. It uses a ductile iron body with an FKM liner and a CF8M stainless steel disc. A lever handle provides manual operation for water-service installations.
Intended Use and Limits
This valve suits plumbing and hydronic circuits that require 200 psi pressure rating and a temperature range of -20 to 300 degrees Fahrenheit. It is not for buyers who need a wafer body style, a different liner material, or an actuated handle option.
Deciding Specification
The four-bolt lug pattern on a 6-inch bolt circle with 5/8-11 lug threads determines whether the valve mates to the existing flange. Verify that the mating flange matches this bolt circle and thread specification before purchase.
Highlights
- Lug-style ductile iron body simplifies pipeline installation
- FKM liner handles -20 to 300 °F fluid temperatures
- CF8M stainless steel disc resists corrosion in water service
- 200 psi pressure rating suits demanding commercial systems
- Four 5/8-11 bolt holes on 6 in circle match standard flanges
Specifications
| Brand | MILWAUKEE VALVE |
|---|---|
| Type | Other |
Questions about this item
How much heat can the ML234V handle during continuous operation?
The valve operates between -20 and 300 degrees Fahrenheit, so it tolerates high-temperature water or steam service all day.
Which flange pattern must my piping already have for the ML234V to bolt up?
It requires a 6-inch bolt circle with four 5/8-11 lug holes matching the ductile-iron body.
Will the FKM liner and CF8M disc resist the same chemicals as my older EPDM-lined valves?
FKM and CF8M stainless steel provide different chemical resistance than EPDM; verify compatibility with your specific media before reusing the existing piping.
