Milwaukee Valve

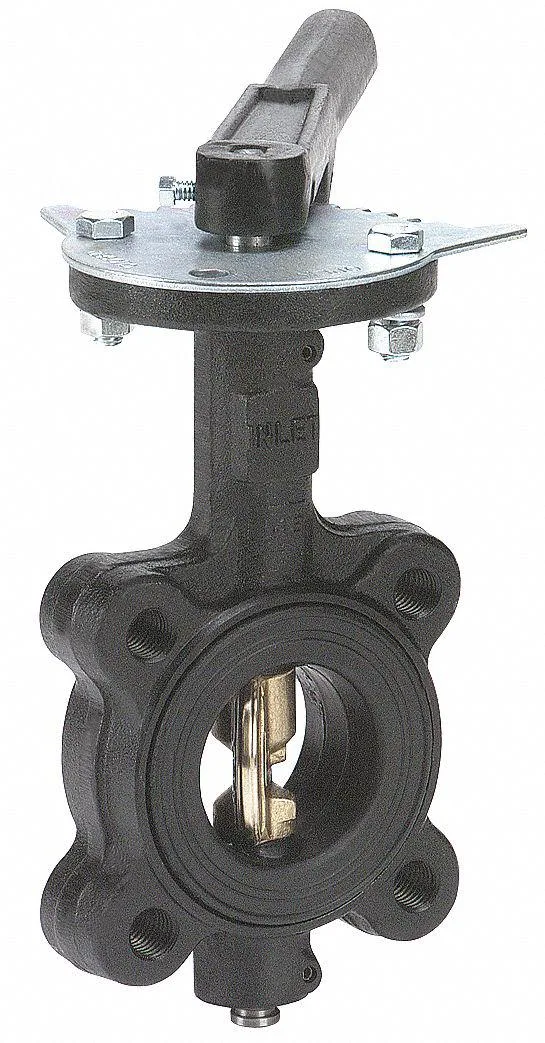

Milwaukee Valve ML232B Butterfly Valve Lug 2 1/2 In
Lug-style butterfly valve handles water up to 200 psi and 180 °F with a Buna-N liner and lever handle
- TypeOther
- Lug-style ductile-iron body handles 200 psi water pressure
- Buna-N liner operates from 10 to 180 °F
- Ductile-iron disc resists corrosion in demanding systems
- Lever handle provides direct manual control
- Four-bolt pattern on 5 1/2 in circle simplifies installation
Product identity and intended use
The Milwaukee Valve ML232B is a lug-style butterfly valve designed for water distribution systems. It fits a 2 1/2 inch pipe and uses a lever handle for manual operation. The ductile iron body and disc provide mechanical strength in commercial and industrial piping.
Thermals noise and power draw
The valve operates passively with no electrical consumption or generated noise. Fluid temperature is rated from 10 to 180 degrees Fahrenheit. Maximum working pressure is 200 psi within that temperature range.
Decisive specification
The Buna-N liner determines chemical compatibility and temperature limits for the application. Verify that the media and operating conditions fall within the liner rating before installation. California Proposition 65 warnings apply to this product.
Highlights
- Lug-style ductile-iron body handles 200 psi water pressure
- Buna-N liner operates from 10 to 180 °F
- Ductile-iron disc resists corrosion in demanding systems
- Lever handle provides direct manual control
- Four-bolt pattern on 5 1/2 in circle simplifies installation
Specifications
| Brand | MILWAUKEE VALVE |
|---|---|
| Type | Other |
Questions about this item
How do I bolt the 2 1/2 in lug valve to a flange with a 5 1/2 in bolt circle, and what torque mistake do installers make?
Align the four 5/8-11 lug holes with the mating flange, insert studs through both flanges, and tighten in a star pattern to the flange specification; the common error is uneven torque that warps the ductile-iron body and leaks at the Buna-N liner.
Which component will need replacement first in water service between 10 and 180 Degrees F?
The Buna-N liner degrades before the ductile-iron disc or body, especially near the 180 Degrees F limit, so plan to replace the liner when sealing performance drops.
At what pressure does the 200 psi rating become the limiting factor during sustained operation?
Continuous service at or above 200 psi exceeds the valve’s maximum water pressure rating and will cause liner extrusion or body fatigue before temperature or cycle limits are reached.
