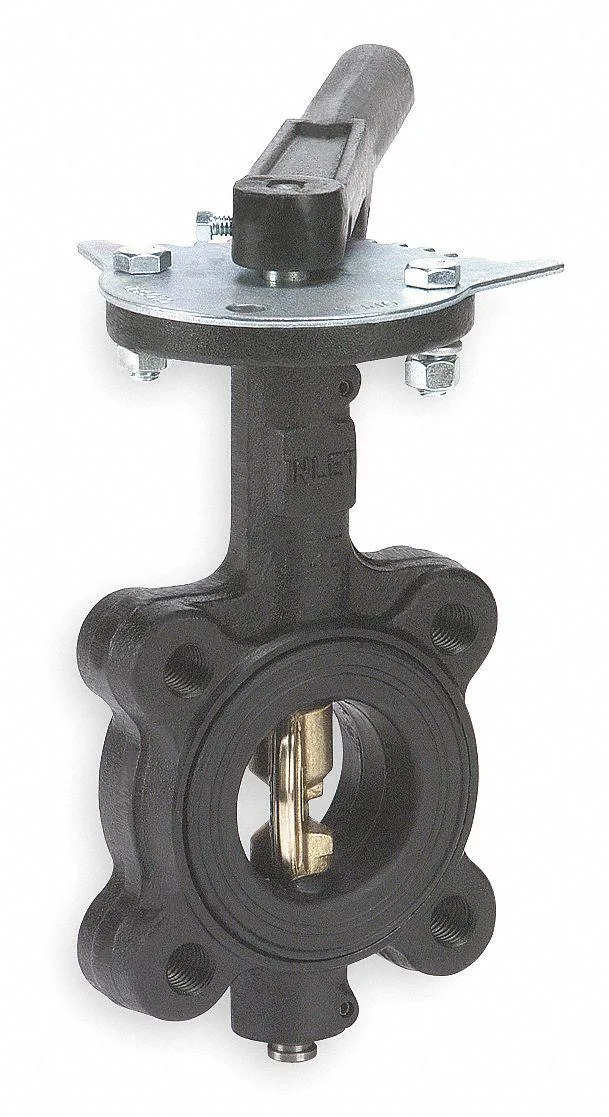

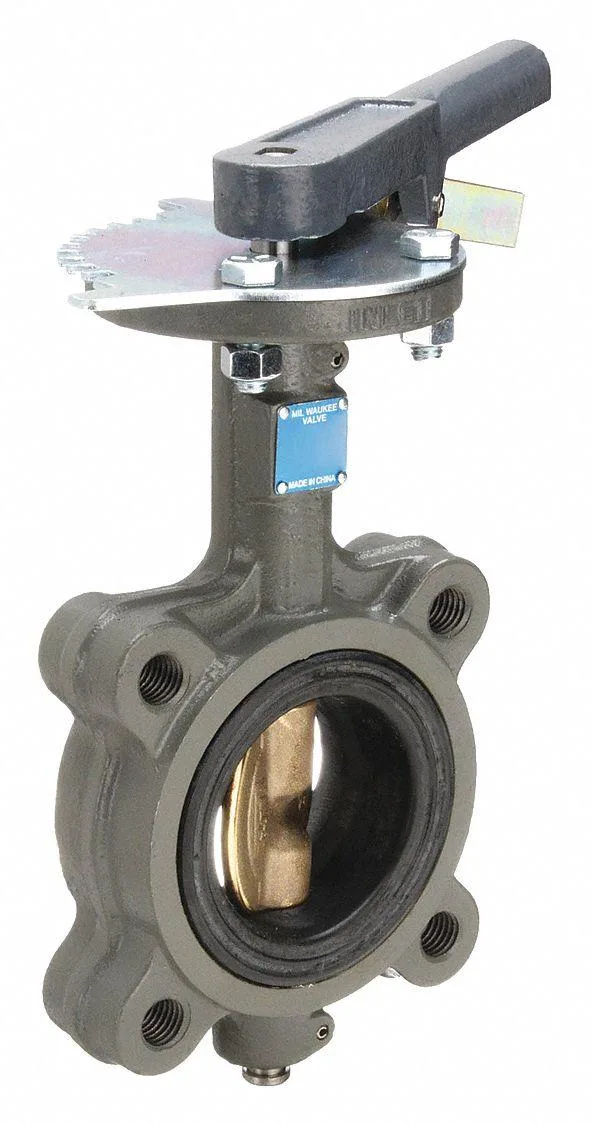

Cast iron butterfly valve lug style EPDM liner lever handle

Milwaukee Valve

Milwaukee Valve CL223E 2 in Butterfly Valve Lug EPDM Liner

SKU CH-7XCD-1B0SA

A lug-style butterfly valve with a cast iron body, EPDM liner and aluminum bronze disc rated for 200 psi water pressure and temperatures from -30 to 250 °F

  • TypeOther
  • EPDM liner handles -30 °F to 250 °F service range
  • Cast iron body withstands 200 psi water pressure
  • Aluminum bronze disc resists corrosion in water systems
  • Lug design with 4 bolt holes on 4 3/4 in circle
  • Lever handle gives quick manual open and close control

Butterfly Valve for Two-Inch Piping

This lug-style butterfly valve controls flow in two-inch pipework with a cast-iron body and an EPDM liner. A lever handle provides direct manual operation for on-off or throttling service. The four-hole bolt pattern on a 4 3/4 inch circle matches standard flanges. It is suited to plant maintenance crews and plumbing contractors who need a reliable shut-off device for water systems.

Replaces Worn or Leaking Shut-Off Valves

The valve serves as a direct replacement when an existing quarter-turn valve shows seat wear, liner degradation or handle failure. Upgrading is worthwhile when the old unit can no longer hold 200 psi or when the temperature range of the service has expanded beyond the original liner rating. The aluminum bronze disc resists corrosion in treated water, extending service intervals compared with plain iron discs.

Steady Performance at 250 Degrees F

Under sustained load the EPDM liner maintains its seal across the full -30 to 250 degrees F range without cold-flow or hardening. The cast-iron body and lug design keep bolt loading stable through thermal cycles, preventing flange distortion. Lever operation stays smooth because the shaft and disc are pinned rather than relying on a friction fit that can loosen over time.

Highlights

  • EPDM liner handles -30 °F to 250 °F service range
  • Cast iron body withstands 200 psi water pressure
  • Aluminum bronze disc resists corrosion in water systems
  • Lug design with 4 bolt holes on 4 3/4 in circle
  • Lever handle gives quick manual open and close control

Specifications

BrandMILWAUKEE VALVE
TypeOther

Questions about this item

What flange bolt pattern does the 2 in lug body require?

The valve uses four bolt holes on a 4 3/4 in bolt circle with 5/8-11 lug threads for flange mounting.

Which step is often missed when installing the lever handle on the valve stem?

Align the handle with the disc position before tightening the set screw so the lever indicates open and closed correctly.

How often should the EPDM liner be inspected in hot water service up to 250 Degrees F?

Inspect the liner annually for hardening or cracking, and plan replacement if the material loses elasticity or shows surface checks.
