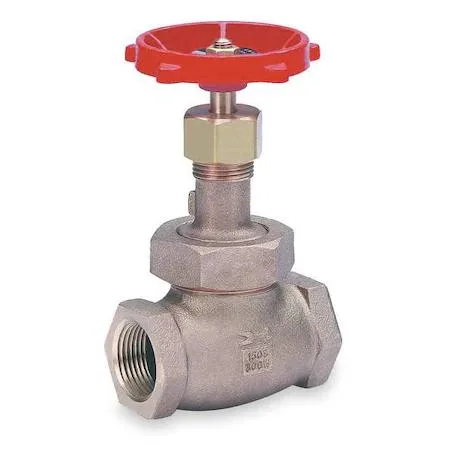

Bronze globe valve with hand wheel, 1/4 inch FNPT connections

Milwaukee Valve

Milwaukee Valve 590T 1/4" Bronze Globe Valve FNPT 300 psi

SKU CH-Z0KB-D40EE

Bronze globe valve with FNPT connections rated for 300 psi fluid and 150 psi steam service up to 406 degrees Fahrenheit

  • Size1/4"
  • TypeOther
  • Reliable fluid control up to 406 °F
  • Handles steam service at 150 psi WSP
  • Durable bronze body and stem resist corrosion
  • Rising stem with hand-wheel gives clear position indication
  • Compact 2 1/16 in face-to-face fits tight piping

Globe valve for fluid and steam service

The Milwaukee Valve 590T is a 1/4 inch bronze globe valve with FNPT connections rated for 300 psi fluid and 150 psi steam. It handles fluids up to 406 degrees Fahrenheit and uses a rising stem with a hand wheel for flow control. The compact body measures 2 1/16 inches from inlet to outlet.

Sustained pressure and temperature performance

Under continuous operation the bronze body and stem resist corrosion from water and steam at the rated limits. The Class 150 construction maintains a seal at 300 psi fluid pressure without degradation over time. Rising stem action provides visible indication of valve position during long duty cycles.

Replaces worn globe valves in existing piping

This unit directly replaces a 1/4 inch FNPT globe valve of the same pressure class and face-to-face dimension. The upgrade is worthwhile when the original valve leaks at the packing or seat after extended service. It is not suited for applications requiring air pressure ratings or larger pipe sizes.

Highlights

  • Reliable fluid control up to 406 °F
  • Handles steam service at 150 psi WSP
  • Durable bronze body and stem resist corrosion
  • Rising stem with hand-wheel gives clear position indication
  • Compact 2 1/16 in face-to-face fits tight piping

Specifications

BrandMILWAUKEE VALVE
Size1/4"
TypeOther

Questions about this item

How much heat can the 590T valve handle in continuous steam service?

The bronze globe valve is rated for a maximum fluid temperature of 406 degrees F and a maximum steam pressure of 150 psi WSP, making it suitable for high-temperature steam lines.

What pipe threads and tools are needed to install this 1/4" FNPT valve?

The valve has female NPT threads on both ends, so you need matching 1/4" male NPT pipe nipples or fittings and a wrench that fits the 2 1/16 in body length for tightening.

Will the rising-stem hand-wheel clear my existing 1/4" bronze piping without extra spacing?

The top of the hand wheel sits 3 15/16 in above the inlet centreline, so measure your current pipe centre-to-obstruction distance to confirm adequate clearance before ordering.
