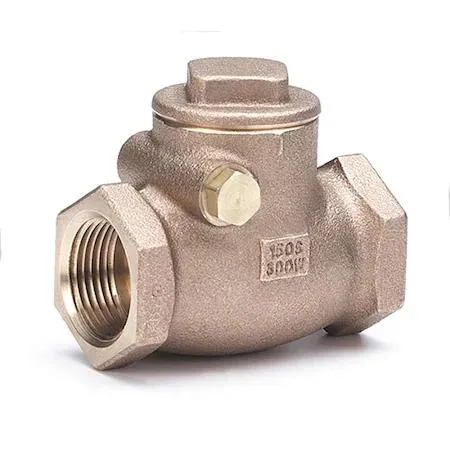

Bronze swing check valve with FNPT threaded ends

Milwaukee Valve

Milwaukee Valve 510T 1-1/2" FNPT Bronze Swing Check Valve

SKU CH-JMPY-TYZW7

Bronze inline swing check valve for 1-1/2" FNPT piping, rated 300 psi water at 150 °F and 150 psi steam, with PTFE seal and 76 gpm flow

  • Size1 1/2"
  • TypeOther
  • Reliable backflow prevention with inline swing mechanism
  • Durable bronze body withstands 300 psi water pressure
  • PTFE seal handles temperatures from -20 to 406 °F
  • Horizontal or vertical mounting suits varied installations
  • 76 gpm flow capacity at 0.750 to 1.000 psi cracking pressure

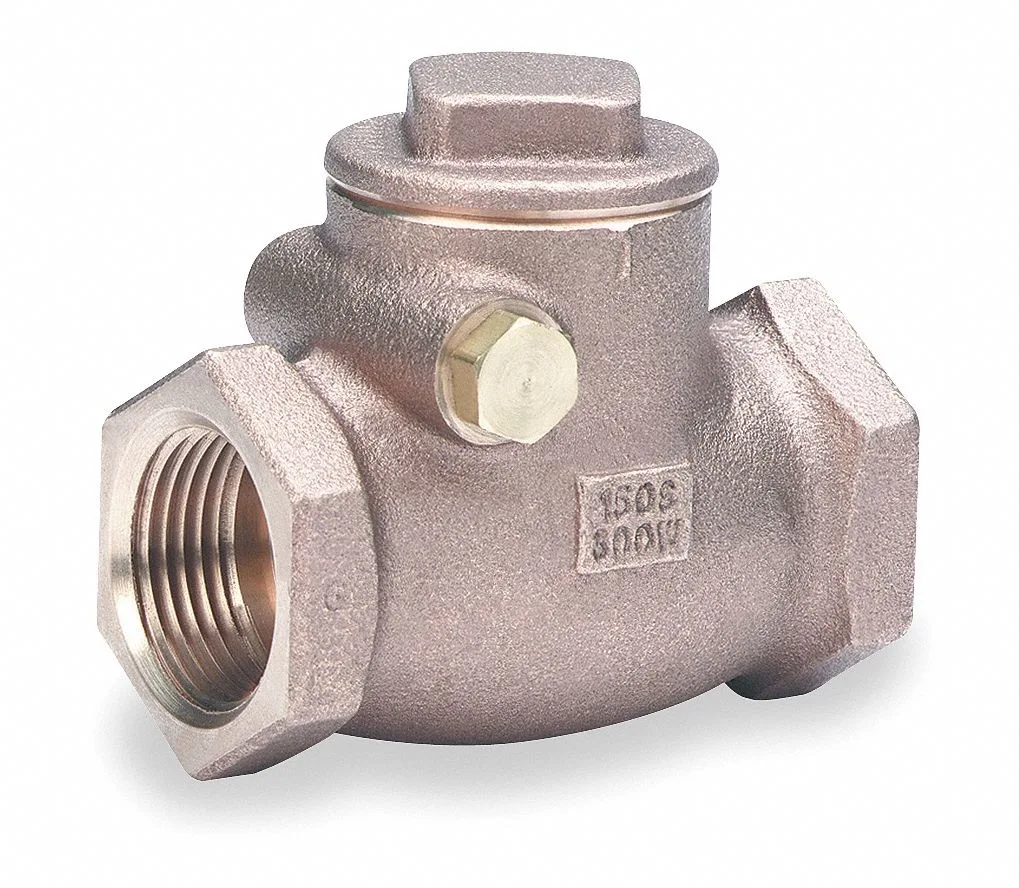

Bronze Swing Check Valve 1-1/2" FNPT

The Milwaukee Valve 510T is a bronze swing check valve with 1-1/2 inch FNPT connections for residential and commercial plumbing systems. It allows flow in one direction while automatically preventing backflow when pressure drops. The inline swing mechanism operates in horizontal or vertical mounting orientations. PTFE seals and a bronze seat provide reliable sealing across temperature extremes.

Replaces worn or missing check valves

This valve replaces failed swing check valves in water lines rated up to 300 psi at 150 degrees F and steam lines rated to 150 psi WSP. The upgrade is worth it when the existing valve leaks, chatters or no longer holds pressure after thermal cycling. A cracking pressure between .750 and 1.000 psi means it opens with minimal flow yet closes positively. The bronze body resists corrosion in potable water and hydronic heating loops.

Limited to swing-check operation

The swing disc requires sufficient flow velocity to stay fully open, so very low-flow branches may not keep the valve unseated. Bronze construction limits use with aggressive chemicals or deionised water that attack copper alloys. Maximum temperature is 406 degrees F and minimum is -20 degrees F, so it suits standard hot water and steam but not high-temperature thermal oil systems. Flow capacity is 76 gpm, which restricts use in larger mains.

Highlights

  • Reliable backflow prevention with inline swing mechanism
  • Durable bronze body withstands 300 psi water pressure
  • PTFE seal handles temperatures from -20 to 406 °F
  • Horizontal or vertical mounting suits varied installations
  • 76 gpm flow capacity at 0.750 to 1.000 psi cracking pressure

Specifications

BrandMILWAUKEE VALVE
Size1 1/2"
TypeOther

Questions about this item

Will the 1-1/2" FNPT threads on this 510T valve match my existing pipe fittings?

Yes, the valve uses 1-1/2 inch FNPT x FNPT connections, so it threads directly onto matching male NPT pipe ends without adapters.

The specs list both horizontal and vertical mounting — is there a specific orientation step that causes leaks if missed?

For vertical installs, the flow arrow must point straight up; if the disc swings sideways the seat will not seal and the valve will leak.

The PTFE seal is rated to 406 °F — does it need scheduled replacement or lubrication?

No routine lubrication is required; inspect the PTFE seat annually for wear or debris, and replace the seat if cracking pressure drifts outside the .750 to 1.000 psi range.
