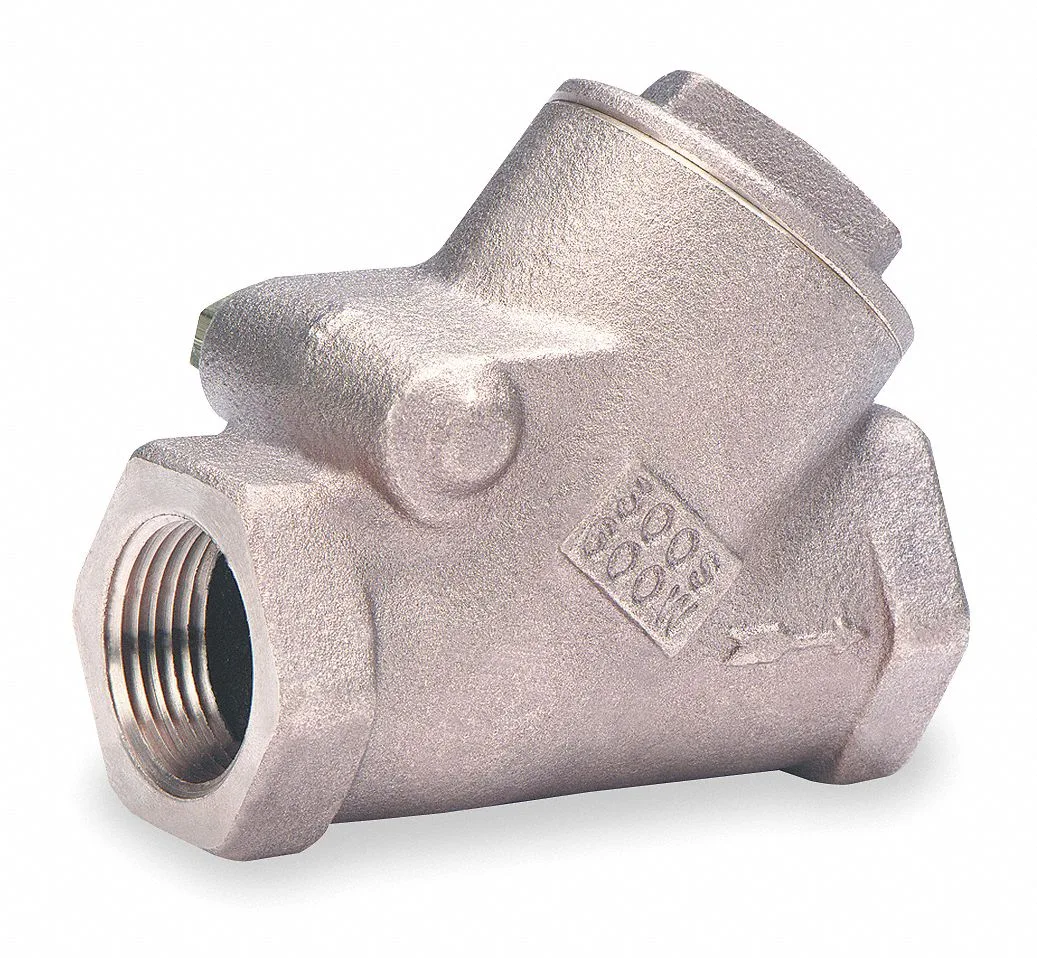

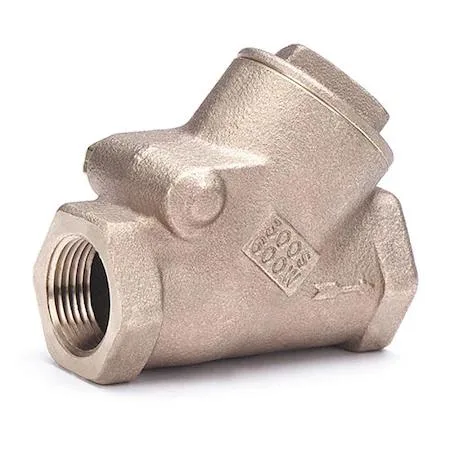

Bronze Y-pattern swing check valve, 2.25 in long, FNPT ends

Milwaukee Valve

Milwaukee Valve 507 3/8" Swing Y Check Valve 2.25 in

SKU CH-QRTJ-088N3

A bronze Y-pattern swing check valve with 3/8" FNPT connections that allows 6 gpm flow and operates from -20 °F to 550 °F at up to 600 psi water pressure

  • Size3/8"
  • TypeOther
  • Bronze body resists corrosion for long service life
  • Y-swing design allows horizontal or vertical installation
  • Cracking pressure of .750 to 1.000 psi prevents backflow reliably
  • Rated 600 psi at 150 °F for demanding water systems
  • FNPT × FNPT connections fit 3/8 in pipe directly

3/8" Bronze Y Swing Check Valve

The Milwaukee Valve 507 uses a Y-pattern bronze body with a swing-disc mechanism to allow flow in one direction while preventing back-flow. It connects via FNPT threads on both ends and suits horizontal or vertical mounting. Rated for 600 psi water pressure at 150 Degrees F and 300 psi saturated steam, it operates between -20 and 550 Degrees F.

Sustained-pressure reliability

The bronze body and bronze seat maintain sealing integrity across the full temperature range without soft-seat degradation. A cracking pressure of .750 to 1.000 psi keeps the disc closed under low-head conditions yet opens fully for a 6 gpm flow capacity. Chrome-cobalt seal material resists wear during continuous cycling in hot-water or steam lines.

Replaces worn swing-checks in small-bore piping

This valve upgrades installations where a failed disc, corroded seat or leaking body compromise system isolation. The 2.25 in overall length fits existing 3/8" FNPT connections without re-piping. It is not suited for lines requiring a lift-check profile, soft-seat bubble-tight shut-off or larger pipe diameters.

Highlights

  • Bronze body resists corrosion for long service life
  • Y-swing design allows horizontal or vertical installation
  • Cracking pressure of .750 to 1.000 psi prevents backflow reliably
  • Rated 600 psi at 150 °F for demanding water systems
  • FNPT × FNPT connections fit 3/8 in pipe directly

Specifications

BrandMILWAUKEE VALVE
Size3/8"
TypeOther

Questions about this item

How much heat can the 507 valve handle when it runs all day?

The bronze body is rated for continuous service up to 550 degrees F and 600 psi water pressure at 150 degrees F.

What piping must I already have to install this check valve?

You need 3/8 inch FNPT female threads on both sides of the line for a direct threaded connection.

Will the 507 valve seal against my older bronze piping at low pressure?

Yes, the bronze seat and chrome-cobalt seal operate from .750 to 1.000 psi cracking pressure and handle up to 300 psi steam.
