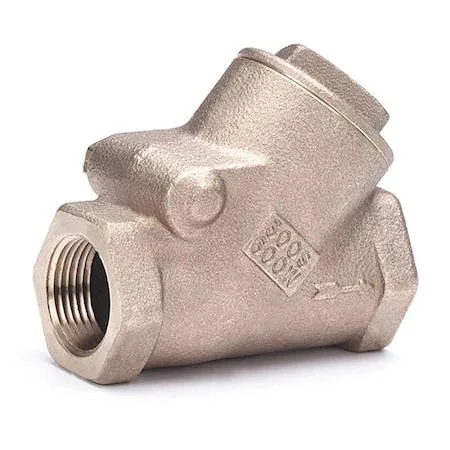

Bronze Y-pattern swing check valve, 1 inch FNPT connections, 3.6875 inch overall length

Milwaukee Valve

Milwaukee Valve 507 1" Y Swing Check Valve 3.6875 in

SKU CH-8Y0X-ZFYF6

A bronze Y swing check valve with FNPT connections, rated for 600 psi water pressure at 150 °F and a flow of 31 gpm

  • Size1"
  • TypeOther
  • Y-swing design allows horizontal or vertical mounting
  • Bronze body handles 600 psi water pressure at 150°F
  • 31 gpm flow capacity through 1-inch FNPT connections
  • Chrome-cobalt seal withstands 550°F max temperature
  • 750 to 1.000 psi cracking pressure prevents backflow

1-inch Y swing check valve

The Milwaukee Valve 507 is a bronze-body check valve with a Y swing mechanism and chrome-cobalt seals. It handles water at 600 psi and 150 degrees F, steam at 300 psi WSP, and operates from -20 to 550 degrees F. Rated flow is 31 gpm through a 1-inch FNPT x FNPT connection.

Check pipe threads and cracking pressure

Verify that the existing piping uses 1-inch female NPT threads and that the 0.750 to 1.000 psi cracking pressure suits the system head. Confirm the fluid temperature stays within the -20 to 550 degrees F range and that pressure does not exceed 600 psi water or 300 psi steam. The overall length is 3.6875 in.

Horizontal or vertical mounting

The valve installs in either horizontal or vertical orientation, leaving layout flexibility. Its bronze body and seat resist corrosion in water and steam service. The Y swing design allows full flow with minimal pressure drop, freeing capacity for other fixtures on the same line.

Highlights

  • Y-swing design allows horizontal or vertical mounting
  • Bronze body handles 600 psi water pressure at 150°F
  • 31 gpm flow capacity through 1-inch FNPT connections
  • Chrome-cobalt seal withstands 550°F max temperature
  • 750 to 1.000 psi cracking pressure prevents backflow

Specifications

BrandMILWAUKEE VALVE
Size1"
TypeOther

Questions about this item

What comes with the Milwaukee Valve 507 and what must I purchase separately?

The valve body includes its internal bronze seat and chrome-cobalt seal. You must supply the 1 inch NPT pipe nipples or fittings to connect it to your piping system.

How do I choose the right version of this 1 inch Y swing check valve?

This model 507 is a single configuration: 1 inch FNPT x FNPT, bronze body, 0.750 to 1.000 psi cracking pressure, rated for horizontal or vertical mounting.

What does the 31 gpm flow rating mean when the valve is installed in my system?

It indicates the valve can pass up to 31 gallons per minute of water at 150 degrees Fahrenheit and 600 psi without exceeding its design pressure drop.
