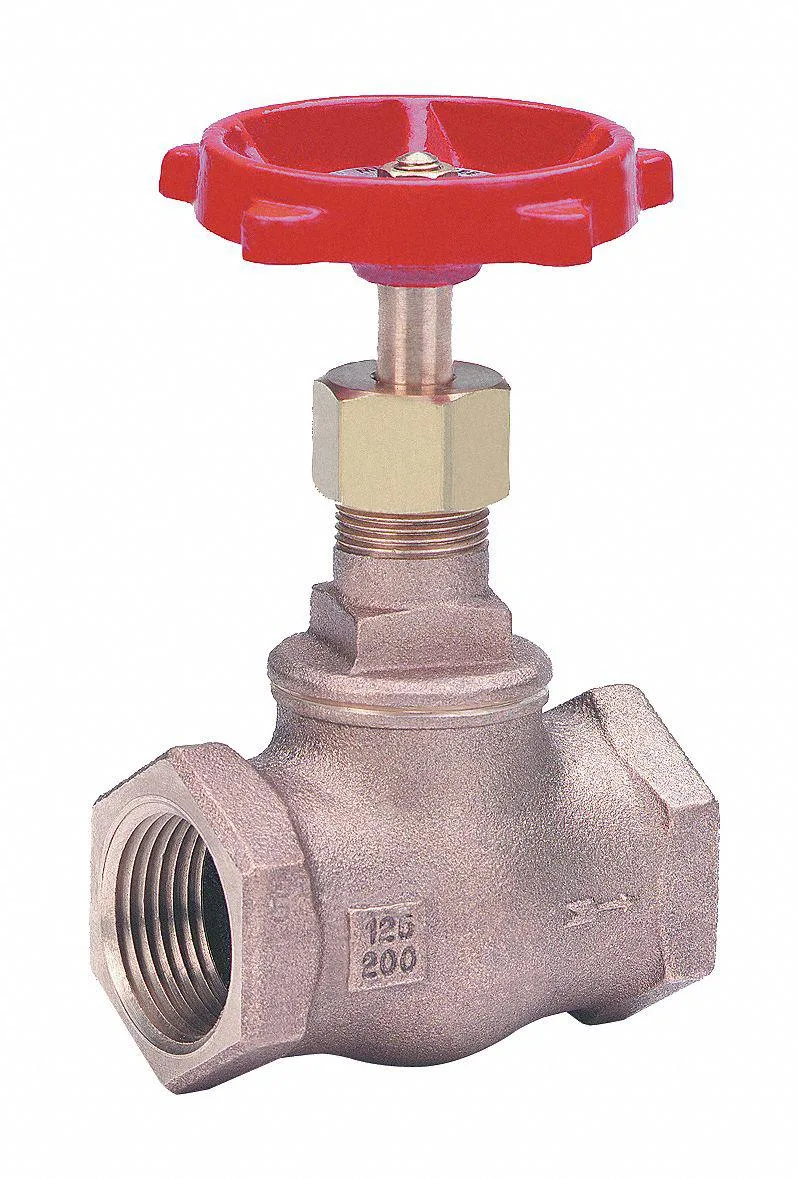

Bronze globe valve with hand wheel and FNPT connections

Milwaukee Valve

Milwaukee Valve 502 3/4 Globe Valve Bronze FNPT 200 psi

SKU CH-FM12-H5B47

Bronze globe valve with FNPT connections handles 200 psi fluid and 125 psi steam up to 406°F

  • Size3/4"
  • TypeOther
  • Bronze body resists corrosion in fluid and steam systems
  • 200 psi fluid-pressure rating handles demanding service conditions
  • 125 psi steam rating supports saturated-steam applications
  • Rising-stem design gives clear visual indication of valve position
  • 406 °F maximum fluid temperature suits high-temperature media

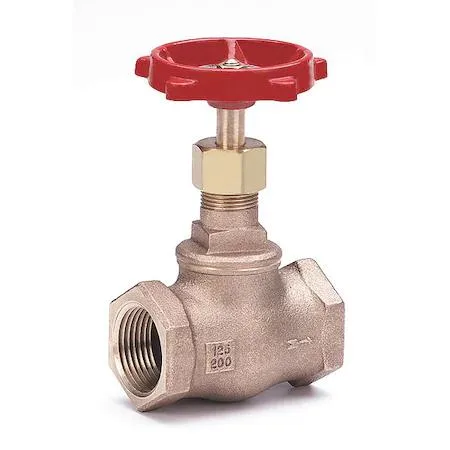

3/4-inch Bronze Globe Valve

This 3/4-inch globe valve uses a bronze body with FNPT connections for fluid and steam service. A rising stem and hand-wheel handle provide manual flow control in residential and light-commercial plumbing systems.

Sustained pressure and temperature limits

The valve handles a maximum fluid pressure of 200 psi and a maximum steam pressure of 125 psi WSP. Fluid temperatures up to 406 degrees Fahrenheit are supported, while air pressure is not rated.

Replaces worn globe valves in existing piping

This unit fits the same 2 9/16-inch face-to-face length and 3 15/16-inch center-to-top dimension as standard Class 125 bronze globe valves. The jump is worthwhile when a rising-stem design with brass stem material is specified for the application.

Highlights

  • Bronze body resists corrosion in fluid and steam systems
  • 200 psi fluid-pressure rating handles demanding service conditions
  • 125 psi steam rating supports saturated-steam applications
  • Rising-stem design gives clear visual indication of valve position
  • 406 °F maximum fluid temperature suits high-temperature media

Specifications

BrandMILWAUKEE VALVE
Size3/4"
TypeOther

Questions about this item

How hot does the valve body get when handling 406 °F steam?

The bronze body and brass stem are rated for 406 °F fluid temperature, so the exterior will approach that temperature under sustained steam service.

What piping and thread sealant are needed to install the 3/4″ FNPT ends?

You need 3/4″ NPT pipe or fittings and a thread sealant compatible with bronze and 200 psi water or 125 psi steam service.

Will the rising-stem hand wheel clear a 15 mm copper adapter on the inlet?

The centre-to-top height is 3 15/16 in, so a standard 15 mm adapter will fit without fouling the hand wheel.
