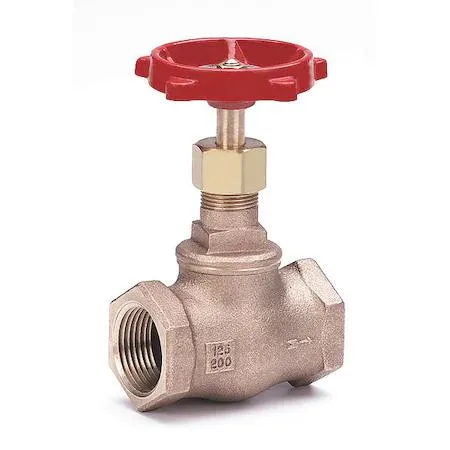

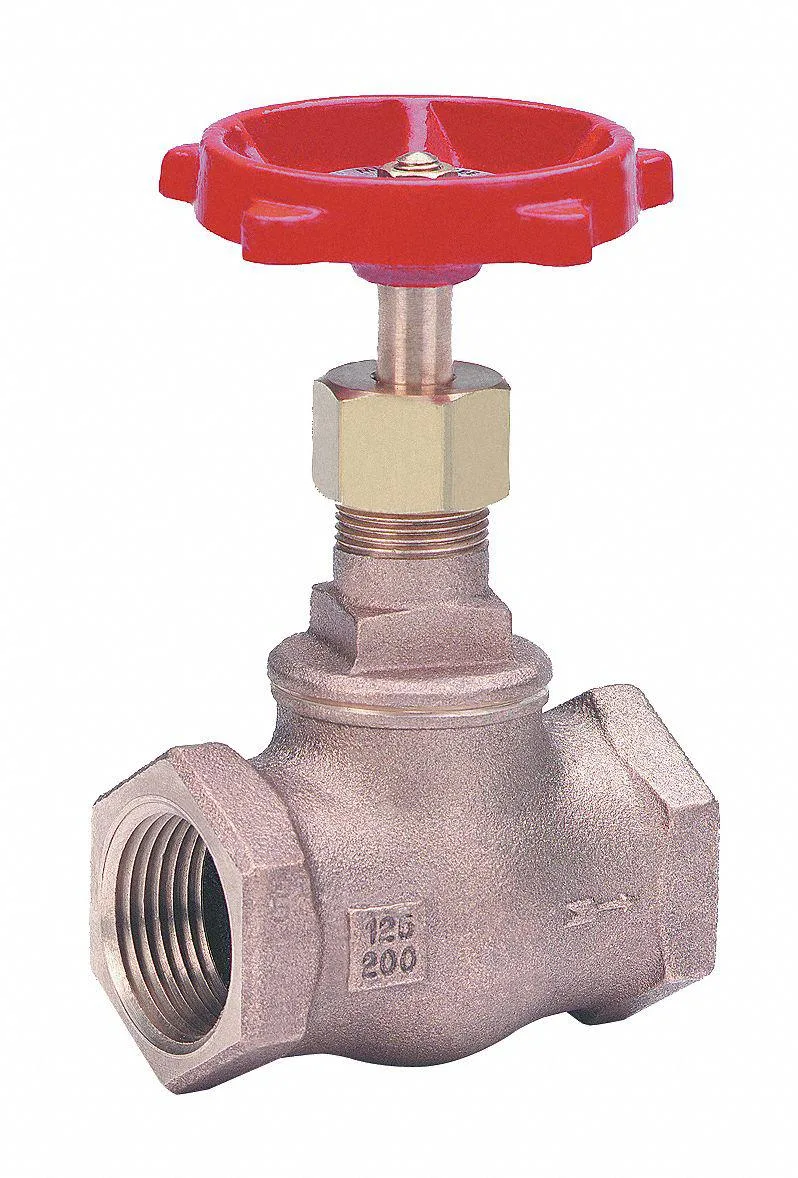

Bronze globe valve with hand wheel, FNPT ends

Milwaukee Valve

Milwaukee Valve 502 2" Bronze Globe Valve FNPT 200 psi

SKU CH-8YP1-X27FG

Bronze globe valve with FNPT connections handles 200 psi fluid and 125 psi steam at up to 406 °F

  • Size2"
  • TypeOther
  • Bronze body resists corrosion in fluid and steam systems
  • 200 psi fluid rating handles demanding pressure requirements
  • 125 psi steam rating suits heating and process applications
  • Rising stem design gives clear visual indication of valve position
  • 406 °F maximum fluid temperature supports high-temperature service

2" Bronze Globe Valve for Fluid & Steam

The Milwaukee Valve 502 is a 2-inch bronze globe valve with FNPT connections designed to regulate fluid and steam in piping systems. It carries a Class 125 rating and a maximum fluid pressure of 200 psi. The rising stem and hand wheel provide direct manual control for throttling or shut-off duties. It suits installers needing a durable bronze body for standard service conditions.

Sustained pressure and temperature limits

Under continuous operation the valve handles fluid temperatures up to 406 degrees F and saturated steam pressure up to 125 psi WSP. The bronze body and brass stem resist corrosion from water and steam media over long periods. The rising stem design allows visual confirmation of disc position during extended cycling. Maximum air pressure is not rated for this model.

Class 125 flange and thread constraints

The valve conforms to a Class 125 pressure class which sets the practical ceiling for connected piping components. Its 4 7/16 inch face-to-face length and 6 3/4 inch center-to-top height fix the installed envelope in the line. FNPT threads limit the joint to tapered pipe threads rather than flanged or welded connections. Buyers needing higher steam ratings or flanged ends must select a different class.

Highlights

  • Bronze body resists corrosion in fluid and steam systems
  • 200 psi fluid rating handles demanding pressure requirements
  • 125 psi steam rating suits heating and process applications
  • Rising stem design gives clear visual indication of valve position
  • 406 °F maximum fluid temperature supports high-temperature service

Specifications

BrandMILWAUKEE VALVE
Size2"
TypeOther

Questions about this item

How much heat can the 502 globe valve handle in continuous steam service?

The valve is rated for a maximum fluid temperature of 406 °F and a maximum steam pressure of 125 psi WSP, so it will handle sustained high-temperature steam within those limits.

What piping connections are required to install this 2-inch bronze valve?

The valve has FNPT x FNPT ends, so you need matching 2-inch female NPT threads on the pipe or fittings to thread it in place.

Will the rising stem and hand wheel clear adjacent 2-inch fittings in an existing line?

The centre-to-top height is 6 3/4 in and the face-to-face length is 4 7/16 in, giving you the envelope dimensions to check clearance against nearby components.
