Milwaukee Valve

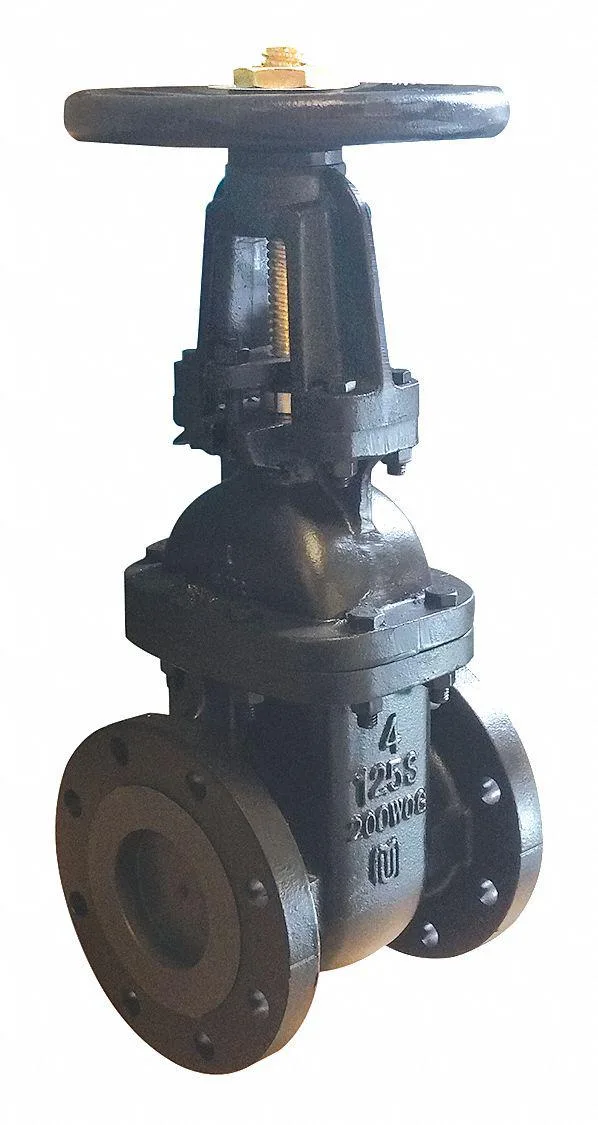

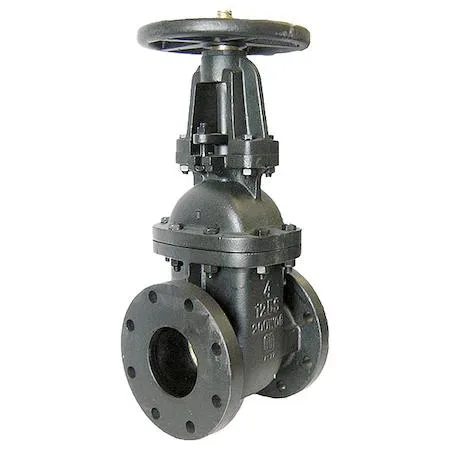

Milwaukee Valve 2885-M 4 in Gate Valve Class 125 Cast Iron
4 in cast-iron gate valve rated Class 125 with OS&Y brass stem and bronze seat for 200 psi water, oil or gas service
- TypeOther
- Handles water, oil and gas service
- Class 125 rating supports 200 psi non-shock pressure
- Outside screw and yoke stem with brass construction
- Solid cast iron wedge with bronze seat and seal
- Bolted bonnet design for secure flange connection
Industrial Gate Valve for Fluid Control
The Milwaukee Valve 2885-M is a 4-inch gate valve designed for regulating gas, oil and water in commercial and industrial piping systems. Its cast-iron body and bronze trim handle operating pressures up to 200 psi and steam pressures up to 125 psi. The outside screw and yoke stem with a wheel handle provides visible position indication for operators.
Replacing Lower-Class Flanged Valves
This Class 125 flanged valve upgrades installations that previously used lower-pressure gate valves or globe valves requiring frequent packing maintenance. The jump is worth it when the system demands a high flow coefficient of 945 Cv with minimal pressure drop across the fully open wedge. The bolted bonnet allows in-line servicing without removing the valve from the pipeline.
Integration into Flanged Piping Networks
The valve fits between standard Class 125 flanges and requires compatible gaskets and bolt sets for a leak-free seal. Brass stem material resists corrosion from condensate while the solid cast-iron wedge withstands debris in the media. The rising stem design frees up the need for external position sensors because gate travel is mechanically visible at the handwheel.
Highlights
- Handles water, oil and gas service
- Class 125 rating supports 200 psi non-shock pressure
- Outside screw and yoke stem with brass construction
- Solid cast iron wedge with bronze seat and seal
- Bolted bonnet design for secure flange connection
Specifications
| Brand | MILWAUKEE VALVE |
|---|---|
| Type | Other |
Questions about this item
What flange class and bolt pattern does the 4 in valve require for mounting?
The valve uses an ANSI Class 125 flange pattern; match the companion flange drilling and use a full-face gasket rated for 200 psi water or 125 psi steam service.
How do I install the bolted-bonnet OS&Y valve without damaging the bronze seats?
Clean flange faces, align the bolt holes, insert all bolts finger-tight, then torque in a star sequence to the flange standard; do not use the handwheel to force alignment.
Which internal parts will need replacement after extended service?
The bronze seat rings and bronze seal surfaces are the primary wear items; the solid cast-iron wedge and brass stem typically remain serviceable longer.
