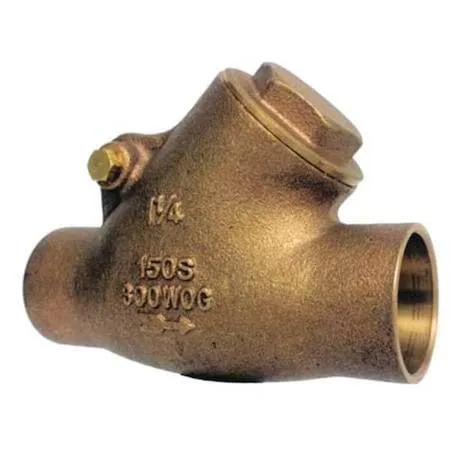

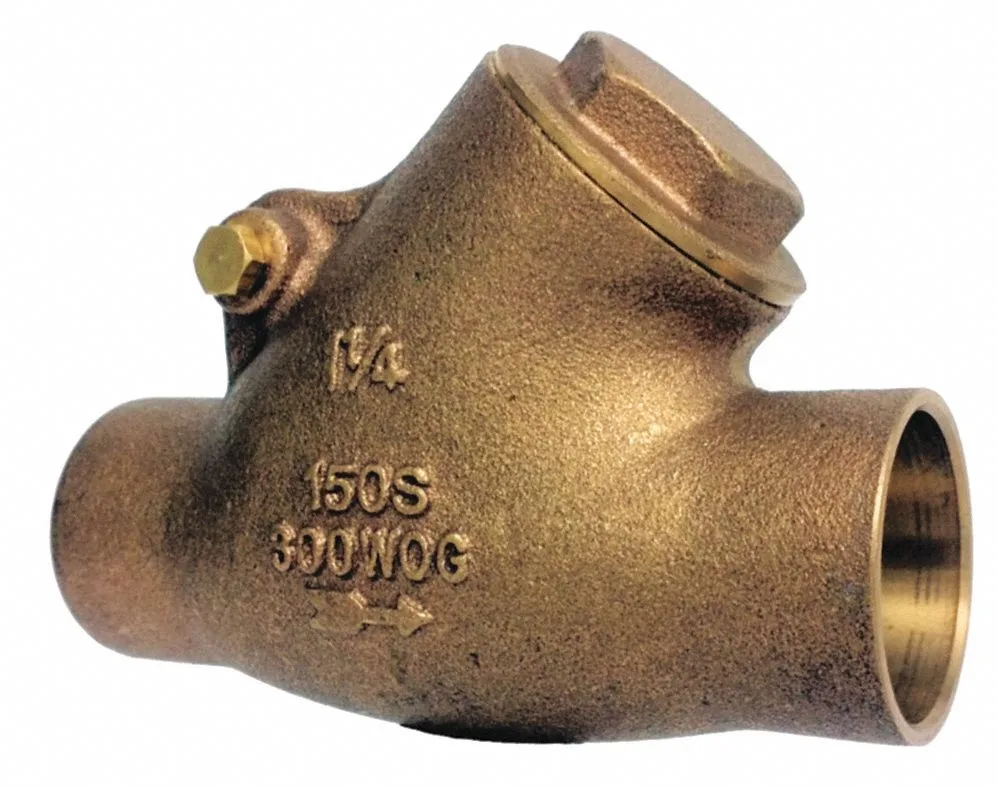

Bronze Y-pattern check valve with sweat connections, 1-1/2 inch size

Milwaukee Valve

Milwaukee Valve 1509Y 1-1/2" Bronze Y Check Valve

SKU CH-TZ05-PZA03

Bronze Y-pattern swing check valve with sweat connections handles 76 gpm water flow at 300 psi and steam at 150 psi from -20 °F to 425 °F

  • Size1 1/2"
  • TypeOther
  • Handles 76 gpm flow for efficient system performance
  • Opens at only .5 psi cracking pressure for sensitive operation
  • Withstands 300 psi water pressure at 150°F for durable service
  • Rated for 150 psi steam pressure in heating applications
  • Operates from -20°F to 425°F across diverse environments

1-1/2" Bronze Y Check Valve

The Milwaukee Valve 1509Y is a sweat-by-sweat bronze swing check valve built for 1-1/2 inch copper piping in hydronic or potable-water systems. It installs horizontally or vertically and provides automatic flow control without external power.

76 gpm capacity with .5 psi cracking pressure

The Y-pattern body delivers a rated flow of 76 gpm while opening at only .5 psi differential, giving strong headroom for typical residential and light-commercial circulation loops. The 300 psi water-pressure rating at 150 °F and 150 psi steam rating define the upper limits before the bronze seat and seal risk accelerated wear.

Bronze body rated to 425 °F and -20 °F

The all-bronze construction withstands continuous temperatures up to 425 °F and down to -20 °F without soft-seal degradation. The metal-to-metal seat operates silently under normal flow velocities and adds no measurable power draw to the system.

Highlights

  • Handles 76 gpm flow for efficient system performance
  • Opens at only .5 psi cracking pressure for sensitive operation
  • Withstands 300 psi water pressure at 150°F for durable service
  • Rated for 150 psi steam pressure in heating applications
  • Operates from -20°F to 425°F across diverse environments

Specifications

BrandMILWAUKEE VALVE
Size1 1/2"
TypeOther

Questions about this item

Will the 1-1/2" sweat connections on this bronze Y check valve mate with my existing copper piping?

Yes, the valve uses sweat x sweat connections sized for 1-1/2" copper tube so it solders directly to matching pipe without adapters.

How can I verify the 1509Y is sealing properly after I solder it in line?

Pressurise the system up to 300 psi at 150 °F and confirm no leakage past the bronze seat; the swing disc should open at .5 psi cracking pressure and close silently when flow stops.

Does the 1509Y come with solder, flux or pipe hangers, or must I buy them separately?

The box contains only the bronze Y-pattern check valve body with integrated bronze seat and disc; solder, flux, hangers and any required pipe are purchased separately.
