Milwaukee Valve

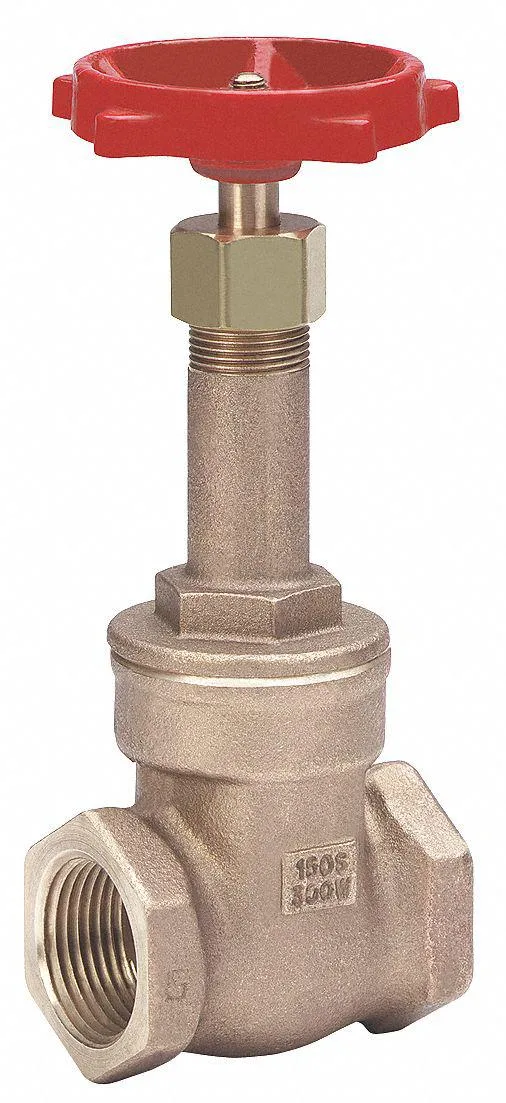

Milwaukee Valve 148 2" Gate Valve Class 125 FNPT Bronze
A 2-inch bronze gate valve rated for 200 psi water and oil service with a 230 Cv flow coefficient
- Size2"
- TypeOther
- Reliable flow control for gas, oil and water with bronze body construction
- Handles up to 200 psi operating pressure for demanding plumbing systems
- Rising stem design provides clear visual indication of valve position
- Solid bronze wedge ensures tight shut-off and long service life
- Female NPT threads allow direct connection to standard 2" pipe fittings
Bronze Gate Valve for Gas, Oil, Water
This Milwaukee Valve 148 is a 2-inch bronze gate valve rated for gas, oil, and water service. It carries a Class 125 steam rating and a 200 psi maximum operating pressure. The solid bronze wedge and bronze seat provide a metal-to-metal seal for general-purpose flow control.
Female NPT Connection for Threaded Piping
The valve features a female NPT thread on the inlet side for direct assembly onto male pipe threads. A rising stem design lifts the wedge clear of the flow path when fully open, reducing turbulence. The screw-in bonnet allows the internal components to be accessed for maintenance without removing the valve body from the line.
High Flow Capacity with 230 Cv Rating
A coefficient of volume of 230 indicates a high flow capacity suitable for 2-inch main supply lines. The bronze construction handles steam service up to 125 psi and non-shock cold working pressure up to 200 psi. It is not intended for throttling applications where partial opening could erode the seating surfaces.
Highlights
- Reliable flow control for gas, oil and water with bronze body construction
- Handles up to 200 psi operating pressure for demanding plumbing systems
- Rising stem design provides clear visual indication of valve position
- Solid bronze wedge ensures tight shut-off and long service life
- Female NPT threads allow direct connection to standard 2" pipe fittings
Specifications
| Brand | MILWAUKEE VALVE |
|---|---|
| Size | 2" |
| Type | Other |
Questions about this item
At what pressure does the 2" gate valve hit its 200 psi operating limit during sustained flow?
The valve is rated for a maximum operating pressure of 200 psi for non‑steam media such as water, gas or oil.
How much heat or noise does the bronze body generate when the valve stays open all day?
A passive bronze gate valve produces no noise or heat of its own; temperature and sound come only from the flowing media.
What pipe fitting must already be on site for the FNPT connection to seal?
The valve requires a matching 2" male NPT pipe thread on each side for a leak‑free joint.
