Milwaukee Valve
Milwaukee Valve 1186 1/4 Gate Valve Class 300
Controls flow of gas, oil or water with a bronze body, stainless-steel seat and 1000 psi rating
- Size1/4"
- TypeOther
- Reliable flow control for gas, oil and water with bronze body construction
- Handles up to 1,000 psi operating pressure and 300 psi steam rating
- Non-rising stem design saves installation space in tight piping runs
- Stainless steel seats resist corrosion for longer service life
- Union bonnet allows easy maintenance without removing valve from line

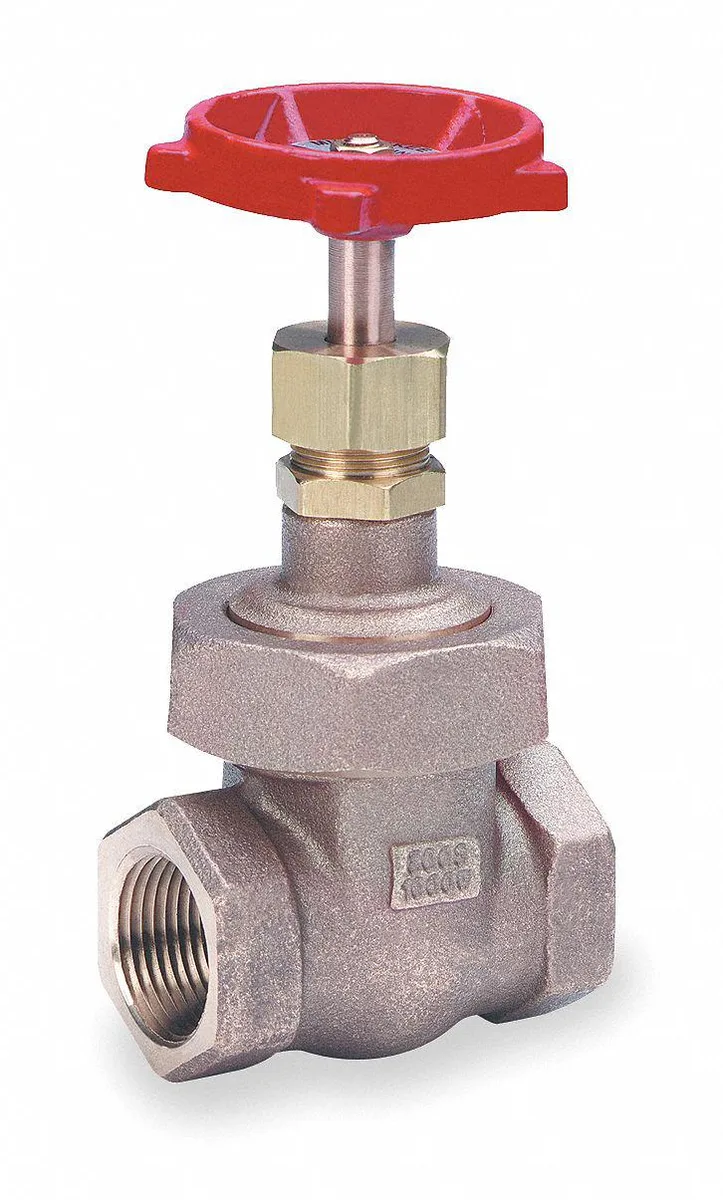

Quarter-inch gate valve
This quarter-inch gate valve from Milwaukee Valve is built for residential and light-commercial plumbing where a positive shut-off is required. The bronze body and non-rising stem suit installations in tight wall cavities or utility rooms. It handles water, oil or gas media within the rated pressure range. The wheel handle provides clear visual indication of the open or closed position.
Replaces leaking or seized shut-offs
Swap this valve in when an existing quarter-inch stop valve drips, binds or fails to seal under system pressure. The solid bronze wedge and stainless-steel seat resist wear better than compression-style stops. The upgrade is worth it when the line sees 300 psi steam or 1,000 psi non-shock cold working pressure. The 5.6 Cv rating maintains flow for fixtures and appliance feeds.
Verify thread and pressure compatibility
Confirm the pipe uses 1/4 inch NPT female threads before ordering. Check that the system design pressure does not exceed 1,000 psi for water, oil or gas and 300 psi for saturated steam. Ensure the bronze materials are compatible with the specific fluid chemistry in the circuit. The union bonnet allows in-line servicing without removing the valve from the piping.
Highlights
- Reliable flow control for gas, oil and water with bronze body construction
- Handles up to 1,000 psi operating pressure and 300 psi steam rating
- Non-rising stem design saves installation space in tight piping runs
- Stainless steel seats resist corrosion for longer service life
- Union bonnet allows easy maintenance without removing valve from line
Specifications
| Brand | MILWAUKEE VALVE |
|---|---|
| Size | 1/4" |
| Type | Other |
Questions about this item
What pipe thread size does the 1/4-inch gate valve use?
The valve has a female NPT connection on one side for 1/4-inch pipe threads.
Which way should the wheel handle face when installing this bronze gate valve?
Install with the handwheel accessible for operation; the non-rising stem means the handle does not move up or down when opening.
Will the stainless steel seat or bronze seal need replacement on this Class 300 valve?
The stainless steel seat and bronze seal are built for 1,000 psi water and oil service and 300 psi steam; replacement depends on wear in your specific application.
