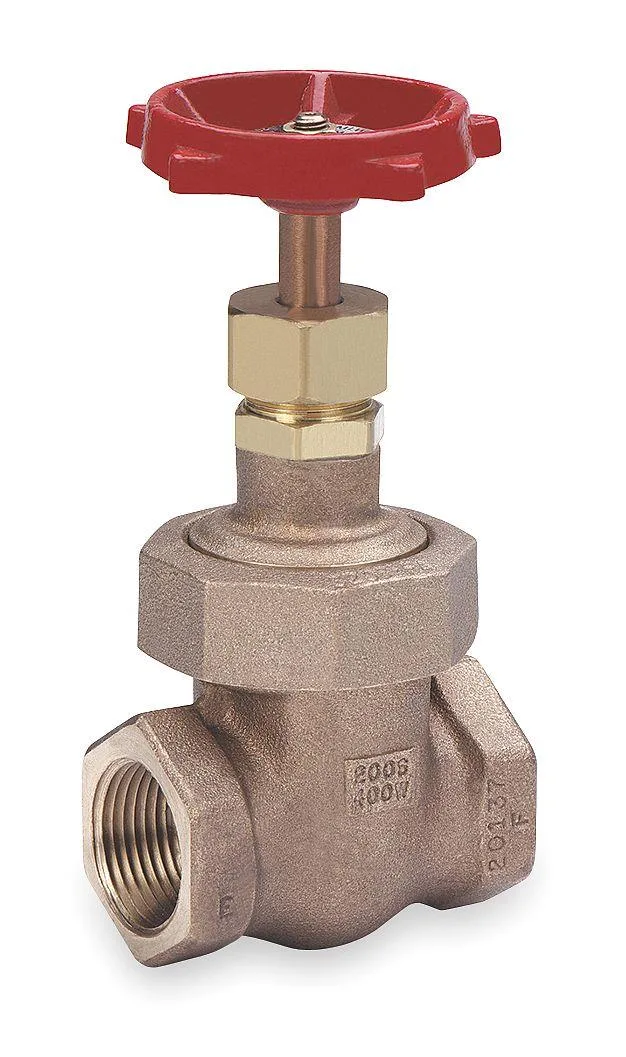

Bronze gate valve with iron hand wheel, 3/4 inch FNPT, Class 200

Milwaukee Valve

Milwaukee Valve 1176 3/4 Gate Valve Class 200 FNPT

SKU CH-FXPA-TE2ZM

Bronze gate valve with non-rising stem, union bonnet and hand-wheel handle rated for 400 psi water and 200 psi steam at up to 550 °F

  • Size3/4"
  • TypeOther
  • Bronze body resists corrosion for long service life
  • Class 200 rating handles 200 psi steam and 400 psi water pressure
  • Non-rising stem saves space in tight installations
  • Union bonnet allows easy maintenance without pipe removal
  • Operates up to 550 °F for high-temperature applications

Product Identity

The Milwaukee Valve 1176 is a bronze gate valve built for 3/4 inch FNPT piping. It serves plumbing professionals and facility managers who need reliable shut-off in water or steam lines rated for Class 200 service.

Build Quality and Connections

The bronze body, stem, and wedge resist corrosion while the malleable iron hand wheel provides mechanical leverage. A union bonnet allows inline maintenance without removing the valve from the pipeline. The non-rising stem keeps the handle height constant, which helps in tight mechanical rooms where vertical clearance is limited.

Included Components and Standards

The valve ships as a single assembled unit compliant with MSS SP-80. No extra gaskets, packing kits, or actuators are supplied, so installers must provide thread sealant and any needed pipe fittings. The design supports up to 400 psi cold water pressure and 200 psi steam at 550 degrees Fahrenheit.

Highlights

  • Bronze body resists corrosion for long service life
  • Class 200 rating handles 200 psi steam and 400 psi water pressure
  • Non-rising stem saves space in tight installations
  • Union bonnet allows easy maintenance without pipe removal
  • Operates up to 550 °F for high-temperature applications

Specifications

BrandMILWAUKEE VALVE
Size3/4"
TypeOther

Questions about this item

What does the MSS SP-80 standard cover for this Class 200 gate valve?

MSS SP-80 defines dimensions and pressure ratings for bronze gate valves. This valve is rated 200 psi steam and 400 psi cold water.

What pipe threads and clearances does the 3/4 inch FNPT connection need?

Female NPT threads accept 3/4 inch male pipe. Allow space for the 4 9/16 inch handle height and 2 1/2 inch body length.

How is the bronze non-rising stem installed and what is the common mistake?

Thread the valve onto pipe with sealant on male threads only. Do not over-tighten the union bonnet or the stem may bind.
